MLA System USER GUIDE
MLA System User Guide V2.1 362

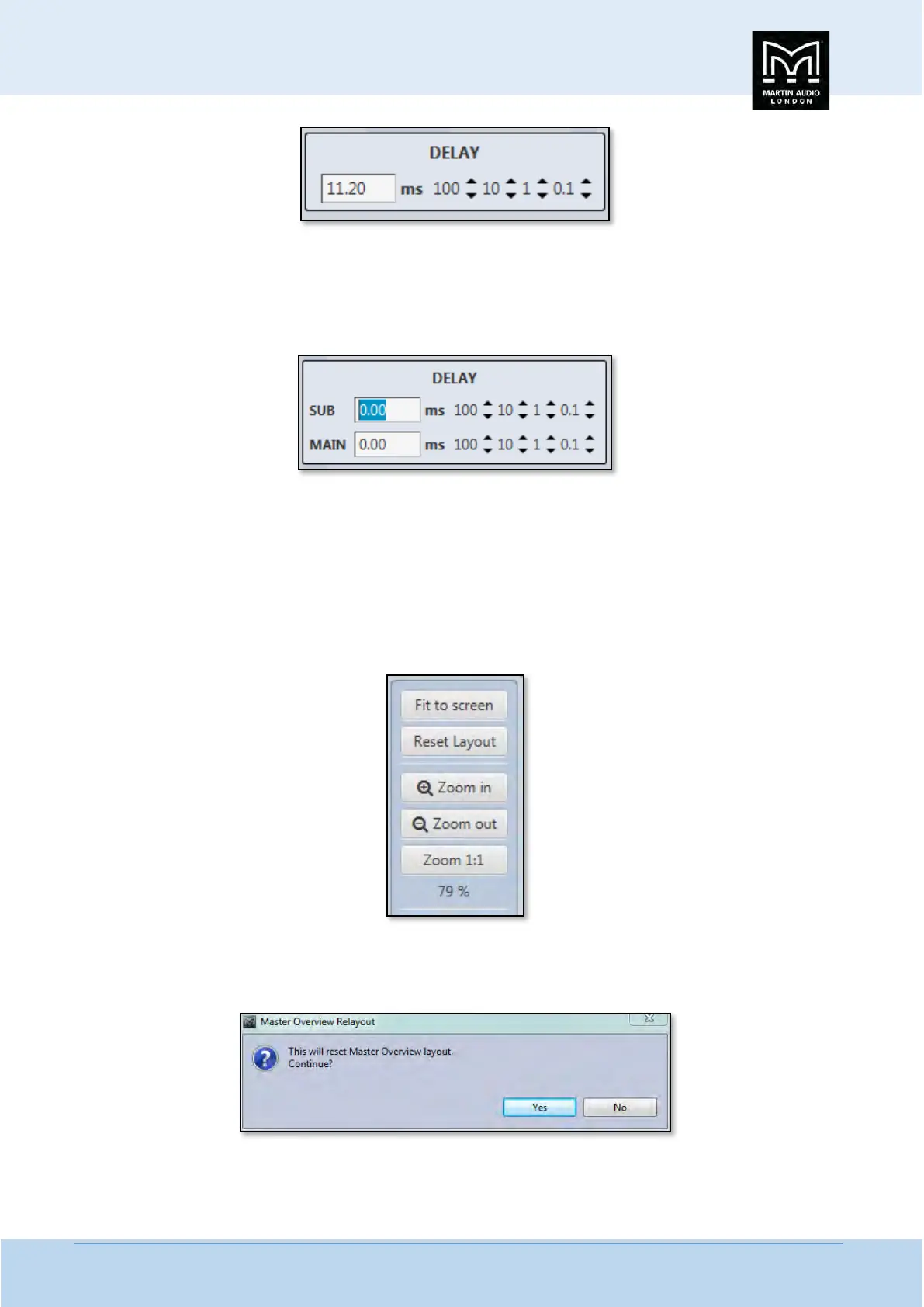

Clicking on the arrows will adjust the delay up or down by either 100's, 10s, individual or tenths of a millisecond making it very
quick and easy to enter a precise figure. As with gain, clicking anywhere else once you have completed adjustments will close
the window.
The Window for PSX is slightly different in that it has individual delay adjustment for both the sub and main outputs;-
The EQ button will take you directly to the EQ Window for the array, opening it in a new tab if it is not already present.
Double clicking on Merlin will also open it in a new tab, the tab on view will be the last tab that was in use if the Merlin has
already been opened, or the Gain/Mute/Limiters tab if it is not already open.
The layout of the Master Overview screen will by default show the arrays in size order. This will automatically re-size to ensure
that all elements fit in the window. Elements can be dragged and dropped to arrange the system to match the physical layout of
the system as in the Array Overview window. A series of buttons and a display on the right hand size of the window allow
adjustment of the view and shows the current zoom;-
'Fit to screen' offers a quick method of re-sizing the window to ensure that all elements are visible.
'Reset Layout' will return all elements to the default positions in size order. You will see a prompt to confirm this action;-
