MLA System USER GUIDE
MLA System User Guide V2.1 361

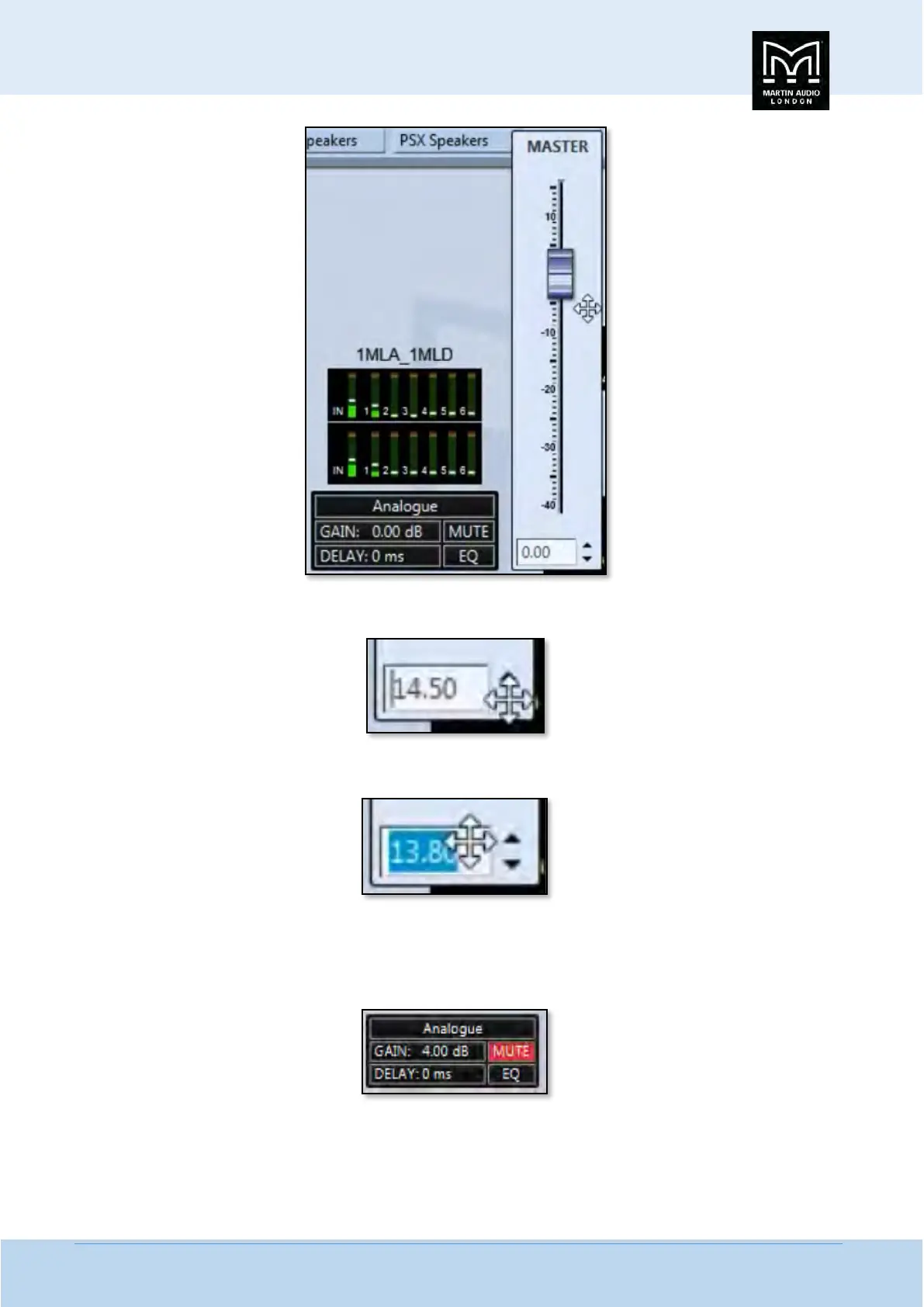

Using the up/down arrows to adjust the gain up or down in 0.1dB increments;-
Or by directly typing the gain figure you need;-
A click anywhere in the Master Overview Window away from the gain control will close it once you have made any necessary
adjustments.
Next to the gain is Mute, clicking on this will mute the array and the button will turn red;-
Note that when in Show Mode a pop-out Window will appear to confirm that you want to mute the array.
Clicking on Delay opens a pop-out window showing the gain figure with a series of arrows for adjustment;-
