214 CONTENTS
5. Since driver version 2.2.2, it is possible to set the special color correction matrices at
(a) the input (sensor),
(b) the output side (monitor) and
(c) the saturation itself using this wizard.
6. Select the specific input and output matrix and
7. click on "Enable".
8. As you can see, the correction is done by the host by default ("Host Color Correction Controls"). However,
you can decide, if the color correction is done by the device by clicking on "Write To Device And Switch Off
Host Processing". The wizard will take the settings of the "Host Color Correction Controls" and will save it
in the device.
9. Finally, click on "Apply".

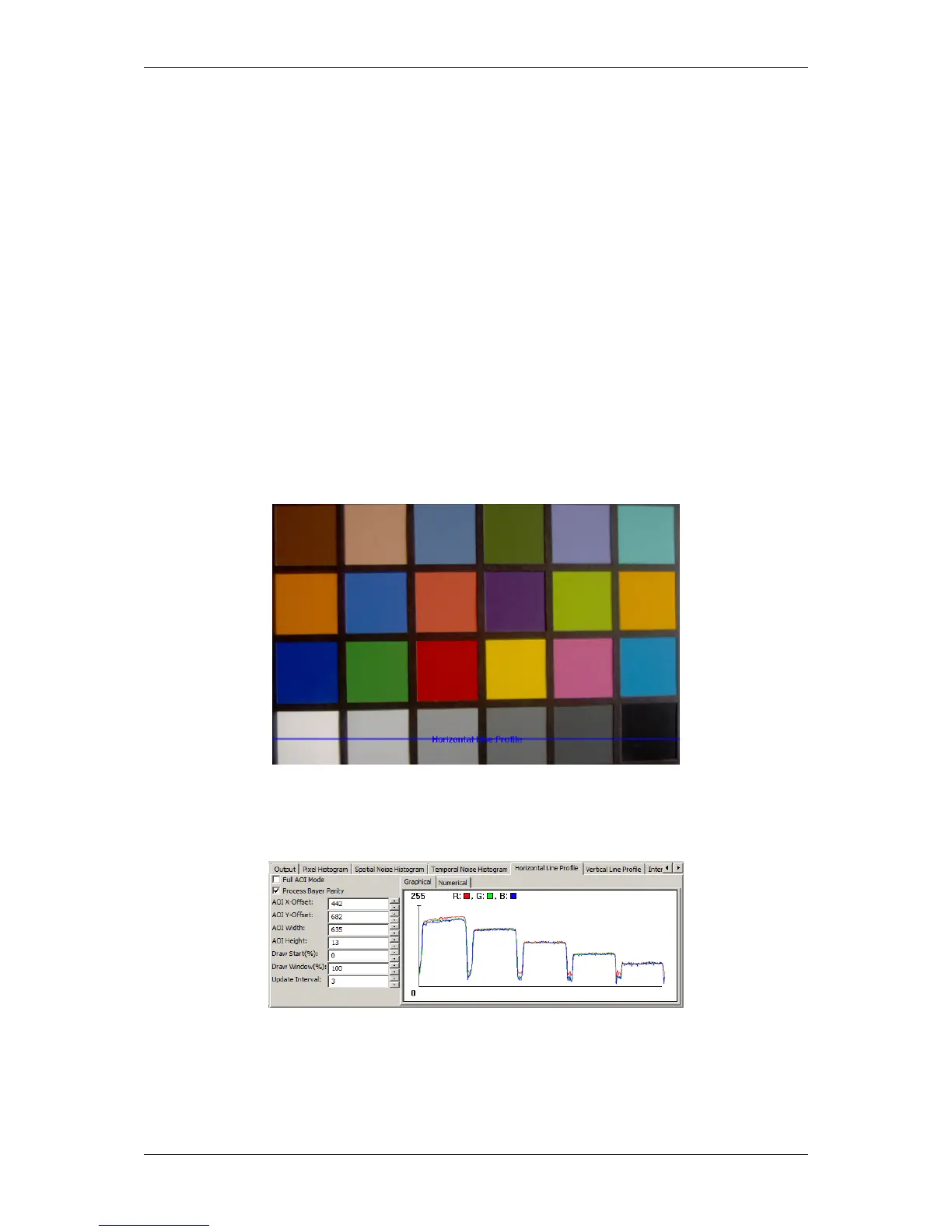

After the saturation, the image will look like this:
Figure 20: After adapting saturation
Figure 21: Corresponding histogram after adapting saturation
MATRIX VISION GmbH
