AlgoMed Techni
cal Reference Manu
al
Proprietary
22
of
110

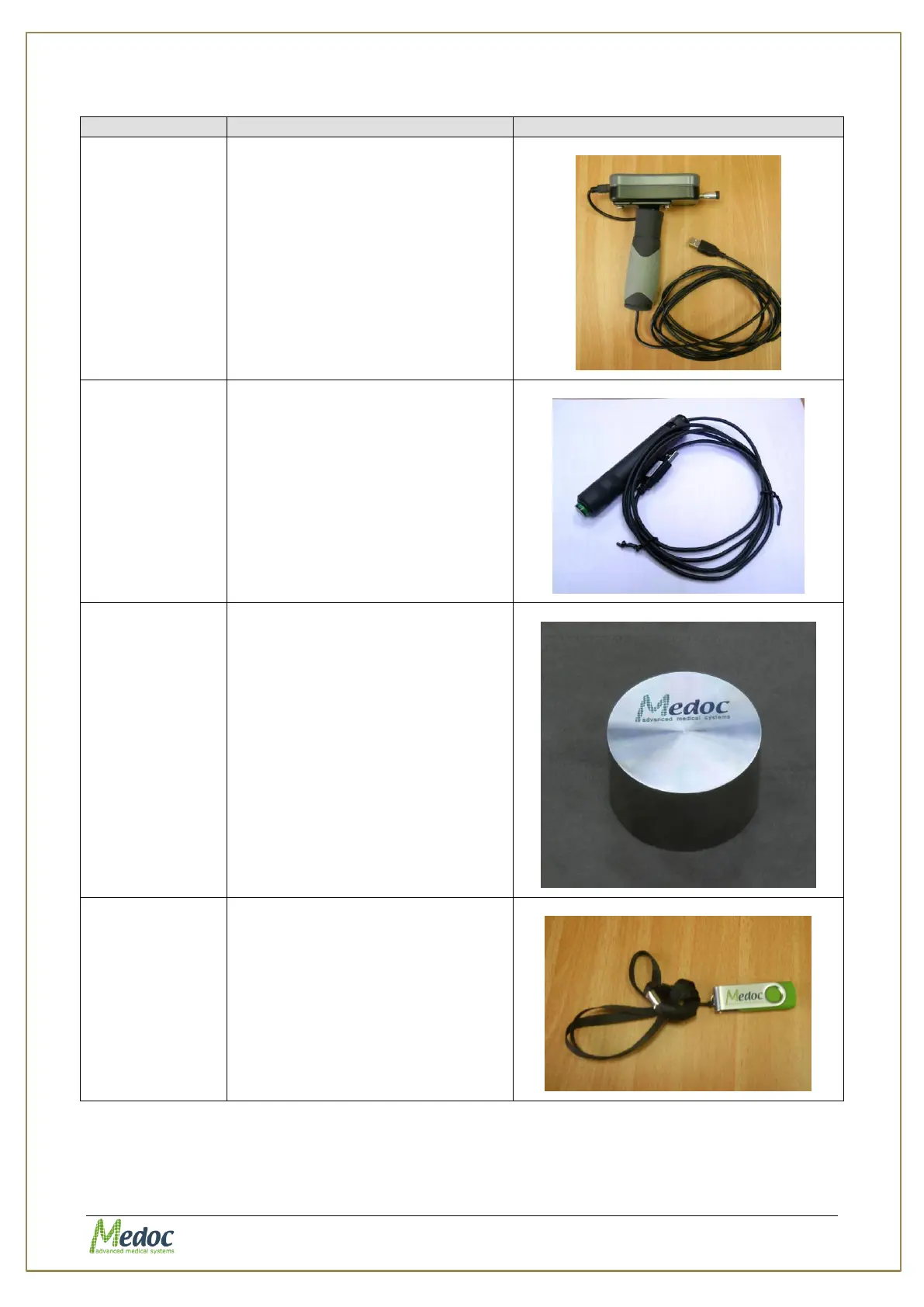

Table 4: AlgoMe
d system com
ponents
Component
Description
Algometer
FPIX 50
The AlgoMed Al
gometer wi
th
maximum capa
city of 50 l
bf.
Include rubber hand g
rip and a
communicati
on cable.
USB Patient
Response Unit
Response Uni
t that is used to
record tested subject
response
Calibration
Verification
Weight
Weight whi
ch can be used to
verify Alg
ometer Calib
ration
Installation
USB
Contain Al
goMed installati
on files,
manual
s and recovery tools
21
23
Table of Contents
Table of Contents
3
Safety Guidelines and Regulations
9
User Manual Icons
9
Intended Use
10
Safety and Regulatory Summary
10
Safety Requirements
10
Warnings
10
Cautions
11
Equipment Classification
11
System Protection
12
Equipment Labels, Symbols, Warning Statements and Abbreviations
12
Figure 1: Algomed Label
12
Table 1: Equipment Labels
12
Electromagnetic Immunity
13
Recommended Separation Distance between Portable and Mobile RF Communications Equipment and Algomed
16
Technical Data
17
Table 2: Algomed Specifications
17
Table 3: Algomed Model Specifications Differences
18
Overview
19
Algomed Computerized Pressure Algometer
19
System Status
19
Application Methods
19
Figure 2: Algomed Computerized Pressure Algometer
19
Limits Method
20
Ramp and Hold Method
20
System Components
21
Figure 3: Algomed Case
21
Figure 4: Algomed Case
21
Table 4: Algomed System Components
22
Setup and Installation
24
Computer Requirements
24
Installation USB Content
25
Installation Main Steps
25
Selecting a Location
25
Software Installation
25
Unit Protection
26
Product Activation
26
Figure 5: Home Screen Product Registration Link
27
Operation
28
Safety
28
Figure 6: Warping the Tip
28
Starting the Algomed System
29
Figure 7: Algomed on / off Button
29
Figure 8: Device Selection Screen
29
Figure 9: Login Screen
30
Figure 10: Welcome Screen
30
Connecting to the Algomed Manually
31
Figure 11: Connecting to the Algomed
31
Basic Operation - Terminology
32
Menu Bar
32
Figure 12: TEST Sceen - Main Menu
32
Table 5: Menu Bar Options
32
Toolbar
33
Search Row
33
Current Selection Information
34
Data Display Area
34
Status Line
34
Test Management
35
Selecting a Patient
35
Figure 13: Test Management Main Screen
35
Figure 14: Patient Selection Menu
36
Figure 15: Patient Details Screen
37
Selecting a Program
38
Figure 16: Programs List
38
Figure 17: Program Details Screen
39
Selecting a Body Site
40
Figure 18: Select Body Site Screen
40
Figure 19: Select Body Site - Specific Site Selection
40
Running a Test
41
Figure 20: Algometer Pre-Test Screen
41
Figure 21: Algometer Pre-Test Screen
42
Figure 22: Algometer Test Screen
43
Figure 23: Time before Test Countdown
44
Figure 24: Start Applying Pressure Message
44
Table 6: Algometer Test Run Features and Options
44
Additional Features
44
Test Run Hot Keys
46
Figure 25: Real-Time Algometer Limits Test
46
Table 7: Hot Keys
46
Program Management
47
Program List
47
Figure 26: Program Management Screen
47
Figure 27: Program Management - Program Preview
48
Creating a New Program
49
Figure 28: Program Graph Preview
49
Figure 29: New Program Screen
49
Editing Program Parameters
50
Program Details
50
Figure 30: Algometer Program Menu - Limits
51
Table 8: Program Details
51
Table 9: Program Parameters
51
Figure 31: Algometer Program Menu - Ramp & Hold
52
Table 10: Program Details
53
Table 11: Program Parameters
53
Standard Events
54
Figure 32: Limits - Standard Events Dialog
54
Figure 33: Ramp & Hold - Standard Events Dialog
54
Table 12: Events - Limits
54
Table 13: Events - Ramp & Hold
54
Unique Test Instructions
55
Removing a Program
55
Figure 34: Test Instructions Editor
55
Duplicate a Program
56
Edit a Program
56
Import / Export Program
56
Patient Management
57
Patients List
57
Figure 35: Patients List
57
Figure 36: Patient Management - Patient Details Preview
58
Add New Patient
59
Remove Patient
59
Figure 37: Patients Editor Screen
59
Edit Patient Details
60
Department Management
60
Import / Export Patient Lists
60
Figure 38: Edit Department Menu
60
Results Management
62
Results List
62
Figure 39: Results List
62
Figure 40: Result Preview Display
63
Import / Export Results
64
Print Results and Reports
65
Analysis Report Dialog
65
Figure 41: Analysis Reports Dialog
65
Figure 42: Analysis Report
66
Table 14: Report Analysis Configuration
66
Figure 43: Algometer Example of Single Report
68
Figure 44: Algometer Example of Bilateral Report
70
Table 15: Report Analysis Configuration
75
System Configuration
76
Software Settings
76
Figure 45: Software Settings Dialog
76
Communication
77
Table 16: Software Settings - General
77
Patient Fields
78
Figure 46: Patient Fields Configuration Screen
78
Table 17: Patient's Field
78
Results Fields
80
Report Options
80
Figure 47: Results Fields Configuration Screen
80
Table 18: Patient's Field
80
Figure 48: Report Options Tab
81
Table 19: Report Options
81
Buttons Configuration
82
Users
82
Figure 49: Buttons Configuration Software Settings
82
Figure 50: User Authorization Software Settings
82
Table 20: Authorization Parameters
83
Table 21: Authorization Levels (Main Actions)
83
Hardware Settings
85
Figure 51: Covas Calibration
86
Figure 52: Covas Calibration Wizard
86
Figure 53: Covas Slider Calibration
87
Figure 54: Covas Calibration Results
87
Test Settings
88
Figure 55: Covas Calibration Finish Screen
88
Table 22: Test Settings Options
88
Test Configuration
89
Figure 56: Test Configuration Settings
89
Table 23: Test Settings Options
89
Instructions Configuration
90
Figure 57: Instructions Configuration
90
Figure 58: Test Instructions Editor
91
Body Site Editor
92
Figure 59: Audio Save Button
92
Figure 60: Body Sites Editor
92
Event Marker
93
Event Sound Configuration
94
Figure 61: Event Marker
94
Figure 62: Event Sound Configuration
95
Figure 63: Sound Effect Library
95
System Information
96
Figure 64: System Information
96
Figure 65: Sysinfo File Sample
97
Appendix A - Accessories
98
Table 24: Accessories
98
Appendix B - System and Module Description
99
System Description
99
Figure 66: System Diagram
99
Appendix C - Preventive and Periodical Maintenance
100
Periodical Visual Check
100
Calibration Verification
100
Figure 67: Set Units to Kgf
101
Figure 68: End of Synchronization
101
Algometer Calibration
102
Figure 69: Placing Weight
102
Figure 70: Weight Placed
102
Appendix D - Cleaning and Disinfecting
103
Appendix E - List of Accompanying Documents
104
Appendix F - Transportation and Storage Conditions
105
Appendix G - Environmental Conditions
106
Appendix H - Technical Specifications
107
Hardware Specifications
107
Table 25: Hardware Specifications
107
Software Specifications
108
Table 26: Software Specifications
108
Appendix I - Troubleshooting
110
Table 27: Error Messages and Action Required
110
Error Message
110
4
