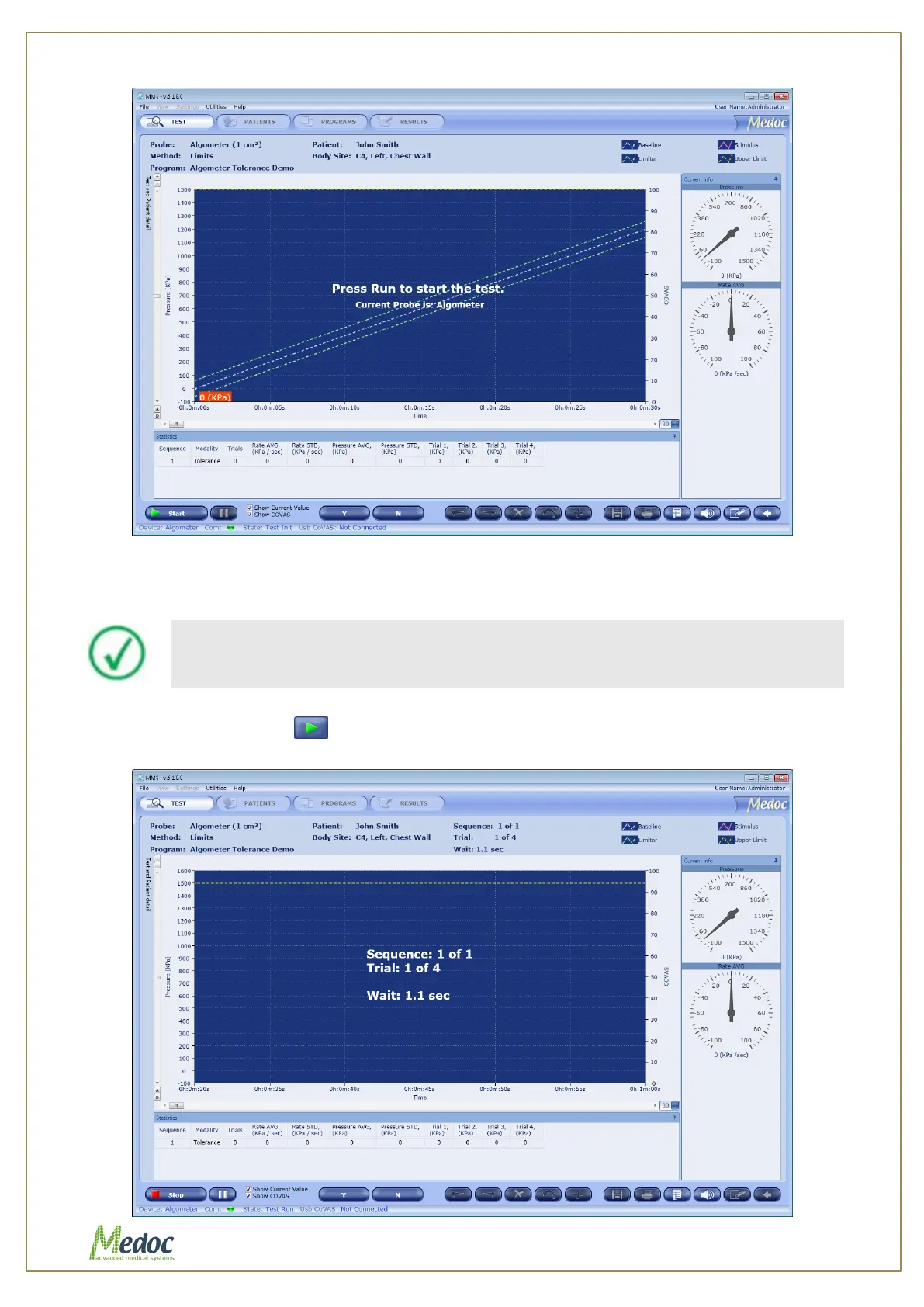

AlgoMed Techni
cal Reference Manu
al
Proprietary
43
of
110
Figure
22
: Algomet
er
Test Screen
If the
Show COV
AS
checkbox
is selected, you
can see the COVAS g
raph. If i
t is not
selected, the COVAS
graph i
s not displayed.
In the Demo mo
de, a CO
VAS virtual slide
r is displayed
.
5.
Click the
Run
bu
tton (
) to start the test.
Countdown ti
mer will displ
ay time before test a
nd i
ndicate when to start app
lying pressure.
42
44
Table of Contents
Table of Contents
3
Safety Guidelines and Regulations
9
User Manual Icons
9
Intended Use
10
Safety and Regulatory Summary
10
Safety Requirements
10
Warnings
10
Cautions
11
Equipment Classification
11
System Protection
12
Equipment Labels, Symbols, Warning Statements and Abbreviations
12
Figure 1: Algomed Label
12
Table 1: Equipment Labels
12
Electromagnetic Immunity
13
Recommended Separation Distance between Portable and Mobile RF Communications Equipment and Algomed
16
Technical Data
17
Table 2: Algomed Specifications
17
Table 3: Algomed Model Specifications Differences
18
Overview
19
Algomed Computerized Pressure Algometer
19
System Status
19
Application Methods
19
Figure 2: Algomed Computerized Pressure Algometer
19
Limits Method
20
Ramp and Hold Method
20
System Components
21
Figure 3: Algomed Case
21
Figure 4: Algomed Case
21
Table 4: Algomed System Components
22
Setup and Installation
24
Computer Requirements
24
Installation USB Content
25
Installation Main Steps
25
Selecting a Location
25
Software Installation
25
Unit Protection
26
Product Activation
26
Figure 5: Home Screen Product Registration Link
27
Operation
28
Safety
28
Figure 6: Warping the Tip
28
Starting the Algomed System
29
Figure 7: Algomed on / off Button
29
Figure 8: Device Selection Screen
29
Figure 9: Login Screen
30
Figure 10: Welcome Screen
30
Connecting to the Algomed Manually
31
Figure 11: Connecting to the Algomed
31
Basic Operation - Terminology
32
Menu Bar
32
Figure 12: TEST Sceen - Main Menu
32
Table 5: Menu Bar Options
32
Toolbar
33
Search Row
33
Current Selection Information
34
Data Display Area
34
Status Line
34
Test Management
35
Selecting a Patient
35
Figure 13: Test Management Main Screen
35
Figure 14: Patient Selection Menu
36
Figure 15: Patient Details Screen
37
Selecting a Program
38
Figure 16: Programs List
38
Figure 17: Program Details Screen
39
Selecting a Body Site
40
Figure 18: Select Body Site Screen
40
Figure 19: Select Body Site - Specific Site Selection
40
Running a Test
41
Figure 20: Algometer Pre-Test Screen
41
Figure 21: Algometer Pre-Test Screen
42
Figure 22: Algometer Test Screen
43
Figure 23: Time before Test Countdown
44
Figure 24: Start Applying Pressure Message
44
Table 6: Algometer Test Run Features and Options
44
Additional Features
44
Test Run Hot Keys
46
Figure 25: Real-Time Algometer Limits Test
46
Table 7: Hot Keys
46
Program Management
47
Program List
47
Figure 26: Program Management Screen
47
Figure 27: Program Management - Program Preview
48
Creating a New Program
49
Figure 28: Program Graph Preview
49
Figure 29: New Program Screen
49
Editing Program Parameters
50
Program Details
50
Figure 30: Algometer Program Menu - Limits
51
Table 8: Program Details
51
Table 9: Program Parameters
51
Figure 31: Algometer Program Menu - Ramp & Hold
52
Table 10: Program Details
53
Table 11: Program Parameters
53
Standard Events
54
Figure 32: Limits - Standard Events Dialog
54
Figure 33: Ramp & Hold - Standard Events Dialog
54
Table 12: Events - Limits
54
Table 13: Events - Ramp & Hold
54
Unique Test Instructions
55
Removing a Program
55
Figure 34: Test Instructions Editor
55
Duplicate a Program
56
Edit a Program
56
Import / Export Program
56
Patient Management
57
Patients List
57
Figure 35: Patients List
57
Figure 36: Patient Management - Patient Details Preview
58
Add New Patient
59
Remove Patient
59
Figure 37: Patients Editor Screen
59
Edit Patient Details
60
Department Management
60
Import / Export Patient Lists
60
Figure 38: Edit Department Menu
60
Results Management
62
Results List
62
Figure 39: Results List
62
Figure 40: Result Preview Display
63
Import / Export Results
64
Print Results and Reports
65
Analysis Report Dialog
65
Figure 41: Analysis Reports Dialog
65
Figure 42: Analysis Report
66
Table 14: Report Analysis Configuration
66
Figure 43: Algometer Example of Single Report
68
Figure 44: Algometer Example of Bilateral Report
70
Table 15: Report Analysis Configuration
75
System Configuration
76
Software Settings
76
Figure 45: Software Settings Dialog
76
Communication
77
Table 16: Software Settings - General
77
Patient Fields
78
Figure 46: Patient Fields Configuration Screen
78
Table 17: Patient's Field
78
Results Fields
80
Report Options
80
Figure 47: Results Fields Configuration Screen
80
Table 18: Patient's Field
80
Figure 48: Report Options Tab
81
Table 19: Report Options
81
Buttons Configuration
82
Users
82
Figure 49: Buttons Configuration Software Settings
82
Figure 50: User Authorization Software Settings
82
Table 20: Authorization Parameters
83
Table 21: Authorization Levels (Main Actions)
83
Hardware Settings
85
Figure 51: Covas Calibration
86
Figure 52: Covas Calibration Wizard
86
Figure 53: Covas Slider Calibration
87
Figure 54: Covas Calibration Results
87
Test Settings
88
Figure 55: Covas Calibration Finish Screen
88
Table 22: Test Settings Options
88
Test Configuration
89
Figure 56: Test Configuration Settings
89
Table 23: Test Settings Options
89
Instructions Configuration
90
Figure 57: Instructions Configuration
90
Figure 58: Test Instructions Editor
91
Body Site Editor
92
Figure 59: Audio Save Button
92
Figure 60: Body Sites Editor
92
Event Marker
93
Event Sound Configuration
94
Figure 61: Event Marker
94
Figure 62: Event Sound Configuration
95
Figure 63: Sound Effect Library
95
System Information
96
Figure 64: System Information
96
Figure 65: Sysinfo File Sample
97
Appendix A - Accessories
98
Table 24: Accessories
98
Appendix B - System and Module Description
99
System Description
99
Figure 66: System Diagram
99
Appendix C - Preventive and Periodical Maintenance
100
Periodical Visual Check
100
Calibration Verification
100
Figure 67: Set Units to Kgf
101
Figure 68: End of Synchronization
101
Algometer Calibration
102
Figure 69: Placing Weight
102
Figure 70: Weight Placed
102
Appendix D - Cleaning and Disinfecting
103
Appendix E - List of Accompanying Documents
104
Appendix F - Transportation and Storage Conditions
105
Appendix G - Environmental Conditions
106
Appendix H - Technical Specifications
107
Hardware Specifications
107
Table 25: Hardware Specifications
107
Software Specifications
108
Table 26: Software Specifications
108
Appendix I - Troubleshooting
110
Table 27: Error Messages and Action Required
110
Error Message
110
4
