2 - System Basics
Shielded Chamber
Components

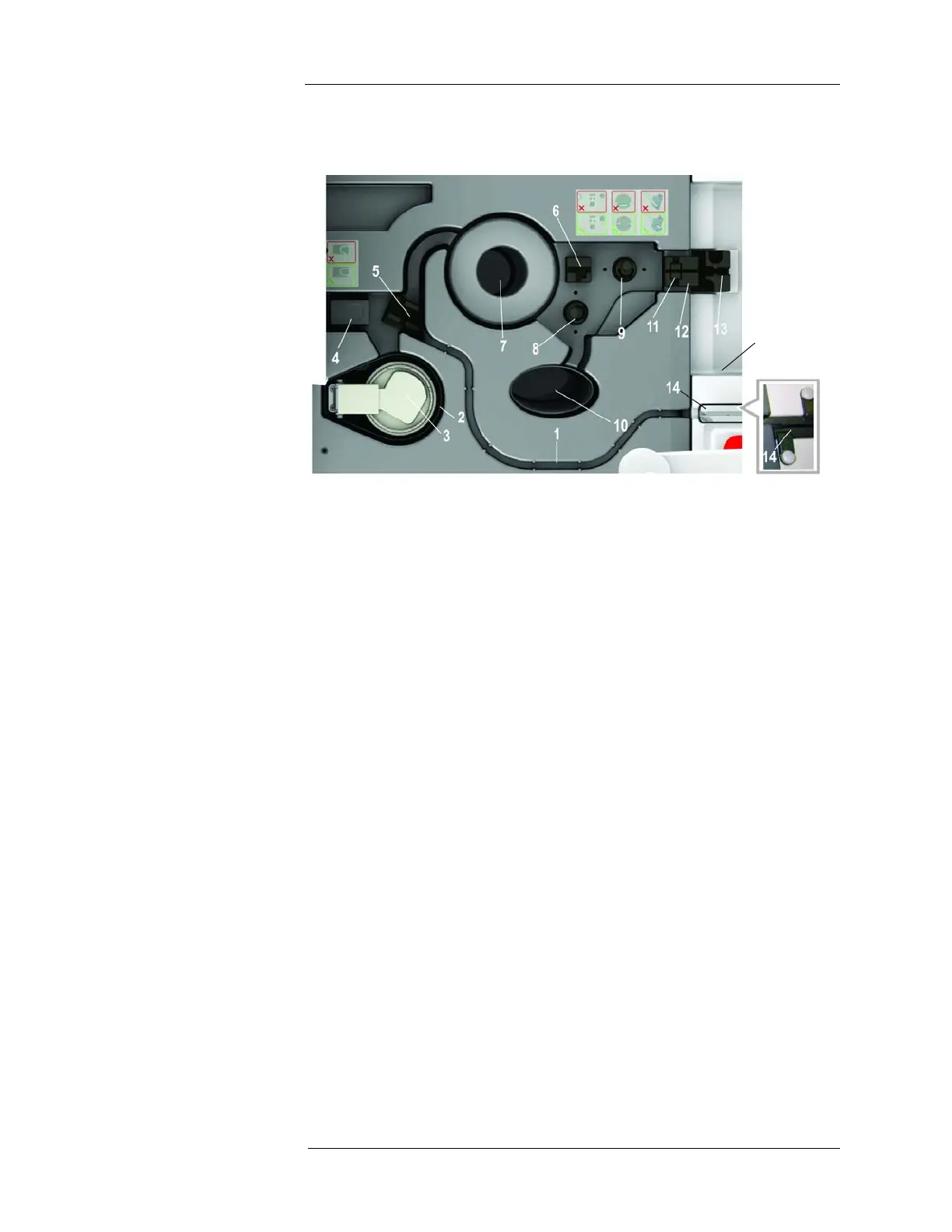

1. SAS Track – Recessed path used to hold the SAS and to prevent it from being damaged
as the Shielded Chamber Lid is opened or closed.
2. Vial Shield Compartment – The chamber where the Vial Shield is placed.
3. Needle Insertion Device – A tungsten shielded lid with a fold-down handle that holds the
SAS Needle Cartridge.
4. RP Pump – Precision pump used for RP dose preparation.
5. SAS Confluence Holder – Secures the SAS Confluence in the correct location and
orientation.
6. T-Connector Holder – Secures the SAS T-Connector in the correct location and
orientation.
7. Dose Calibrator
8. Waste Pinch Valve – Controls fluid flow to the Waste Container.
9. PAS Pinch Valve – Controls fluid flow to the PAS.
10. Waste Storage – The area where the SAS Waste Container is placed.
11. Air Detector – Used to detect air in the fluid as it passes from the SAS into the PAS.
12. Air Detector Holder – Secures the SAS within the Air Detector.
13. Swabbable Valve Holder – Secures the Swabbable Valve in the correct location for
joining the PAS and SAS together.
14. Saline Tube Holder – Holds the Saline Tube in the PAS Compartment.
