Page 23
Installation
optoNCDT 1700
SMR = Start of measuring range
MR = Measuring range
30 (1.2)
13.2
(.52)
15
(.59)
67 (2.6)4
(.16)
75 (3.0)
80 (3.15)
89 (3.5)
97 (3.82)
37.5 (1.48)
Mounting
holes
3 x ø 4.5
(.18 dia.)
24.2
(.95)
36.1 (1.4)
13.4
(.53)
A
B
ø 8
(.31 dia.)
15
(.59)
13.4
(.53)
SMRMR
ø 4
(.16 dia.)

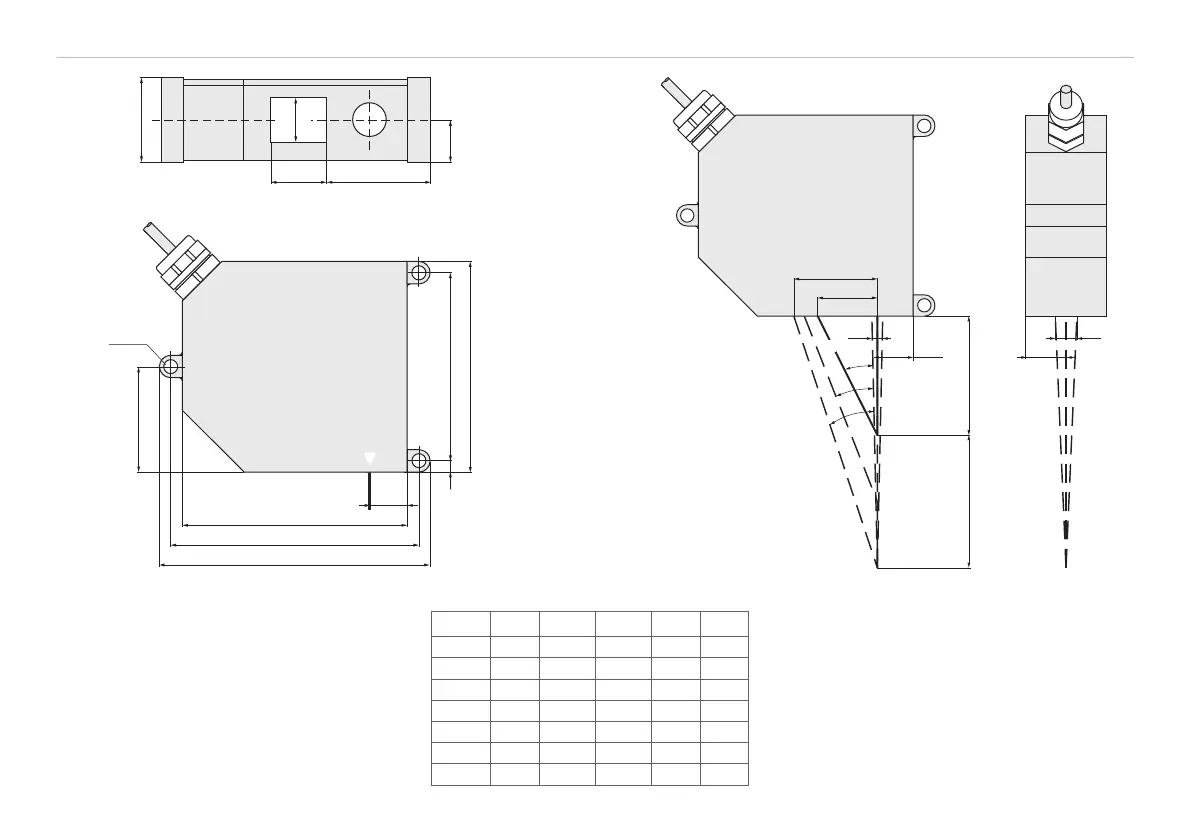

Fig. 7 Dimensional drawing
optoNCDT 1700-2/10/20/50/100/200/250VT
1700-2LL/10LL/20LL/50LL
dimensions in mm (inches), not to scale
Fig. 8 Free space for optics
MR SMR
a e
A B
2 24 35.0 ° 44.8 ° 25.8 16.8
10 30 34.3 ° 35.6 ° 28.7 20.5
20 40 28.8 ° 26.7 ° 30.1 22.0
50 45 26.5 ° 18.3 ° 31.5 22.5
100 70 19.0 ° 10.9 ° 32.6 24.1
200 70 19.0 ° 7.0 ° 33.1 24.1
250VT 70 19.0 ° 6.0 ° 33.5 24.1
Housing size S
