MICRO-EPSILON ILD1700-2 - Page 98

Page 98
Instruction for Operating
optoNCDT 1700
140 (5.51)
140 ((5.51)
168 (6.61)
103 (4.06)
125 (4.92)
ø4.5 (dia. .18)
(4x)
25.5 (1.0)
Sensor
cable
with
connector
Mounting
holes
47.9 (1.89)
Laser spot
28
(1.10)
For SGH size S: Exhaust air connector
For SGHF size S: Closed with blind plug
Laser spot
5,5
Air inlet
(Air supply
can be
pivoted,
for flexible
tube
with 6 mm
inner diameter)

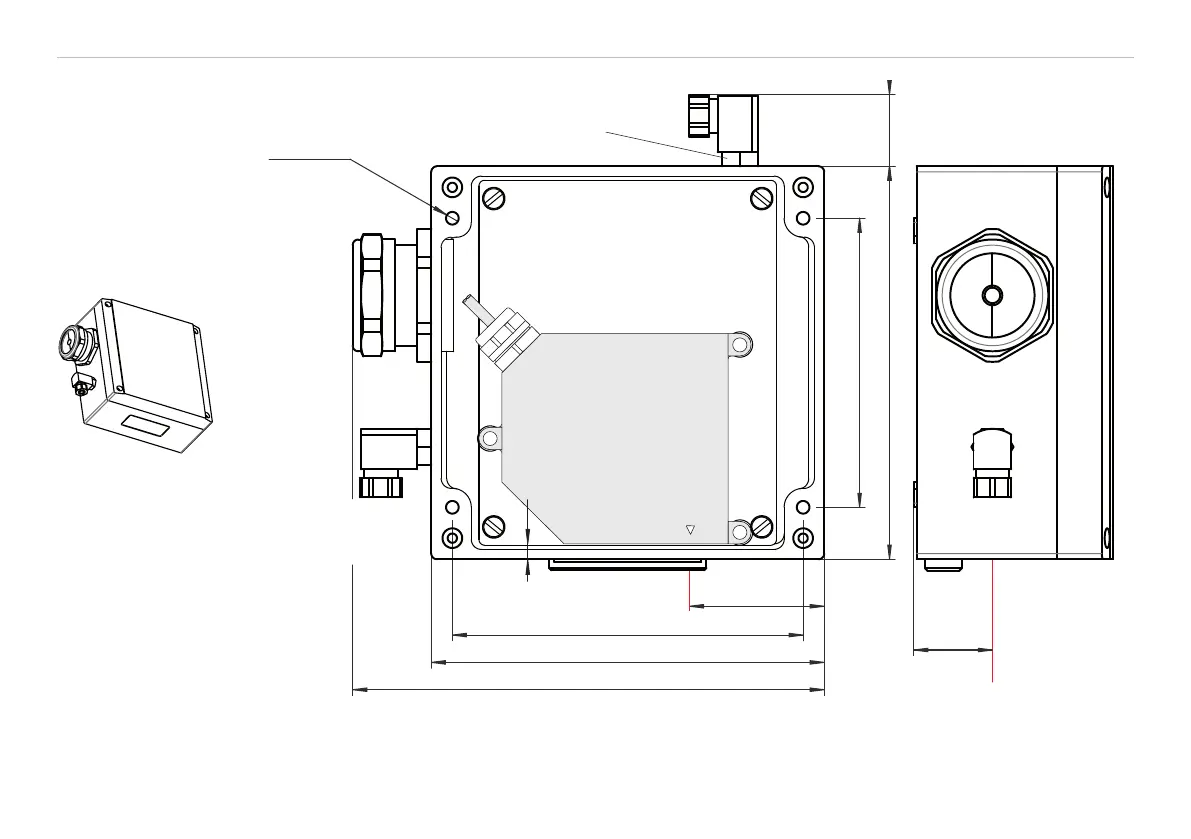

Fig. 51 Protective housing for measuring ranges 10/20/50/100/200/250 mm
SGH/SGHF size S
Dimension in mm (in-
ches), not to scale
