MICROPLEX Operator’s Manual LOGIJET T4 /T6 /RFID Edition 1.3
Normal 1:1 Mode
In this mode after tear off or cut no draw back of the unprinted
material takes place. The output volume is at its maximum level.
As a result the first 18 mm of the label are not printable. These
measurements correspond to the distance between print head
and tear off edge or cutter.

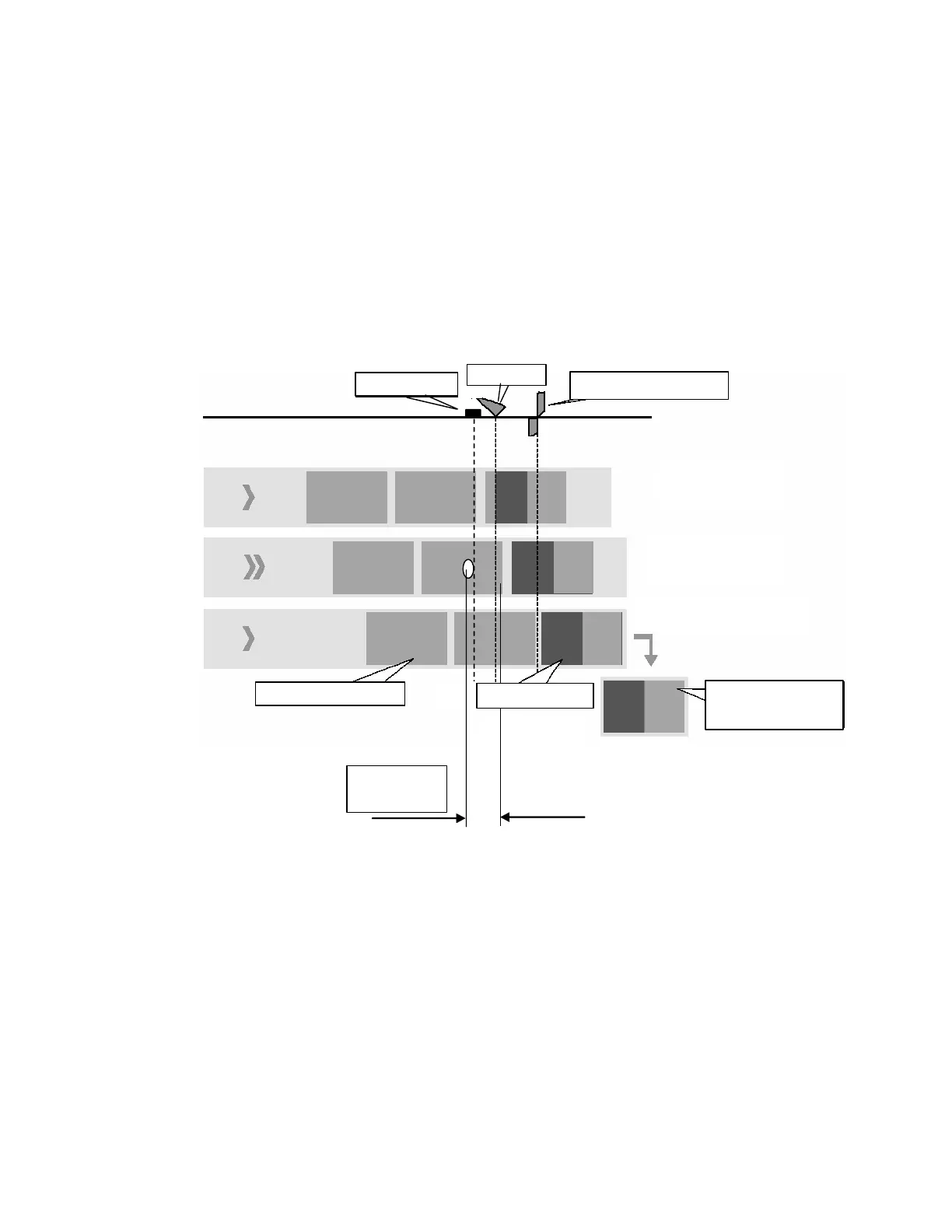

Tear off edge or cutter
Non-printable
area
1. Prin
t
2. Feed
3. Cut
Druckkop
f
Label, unprinted
Antenna
Print head
Tag Position
(example)
Label, printed
Hints: In the RFID mode a tear off (single label operation) is useful only
on condition that the distance between the transponder and the
beginning of the label is greater than 31 mm (Tag Position).
(See section 8.2.1 Selecting the RFID Mode and 8.2.3 Adjusting
the Transponder Position as well as the comments in figure
8.4.1.a).
Using the optional cutter, RFID labels equipped with a tag
position shorter than 31 mm are cutted not before the next page
is ready to print.
