28 Handling of Consumables
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX Operator’s Manual LOGIJET T4 /T6 /RFID Edition 1.3
9. Avoid pushing the label supply guide in too far or you will
damage the edge of the label stock.

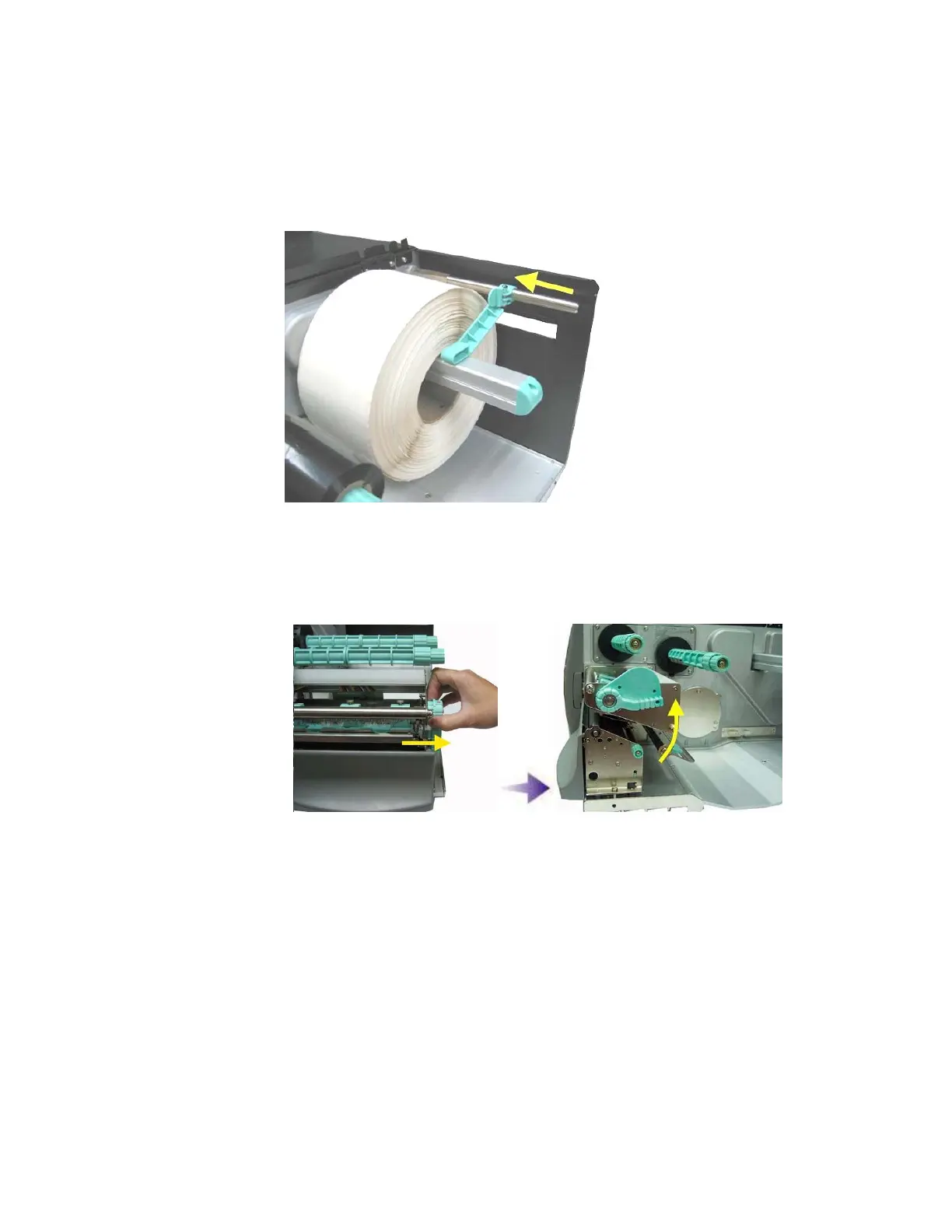

Fig. 5.2.1.g Setting the label supply guide to the right position
10. Release the printhead pressure lever.
Fig. 5.2.1.h Pull the printhead pressure lever out and swivel it upward
(counterclockwise).
11. Slide the material guide to its outermost position. (Compare
figure 5.2.1.j).
12. Feed the label through under the label tension plate (under
the moveable sensor) to the tear off bar.
