15. Use the setting knob to adjust the sensor position (light
barrier). (If you turn the setting knob clockwise, the sensor
will move rightward.)

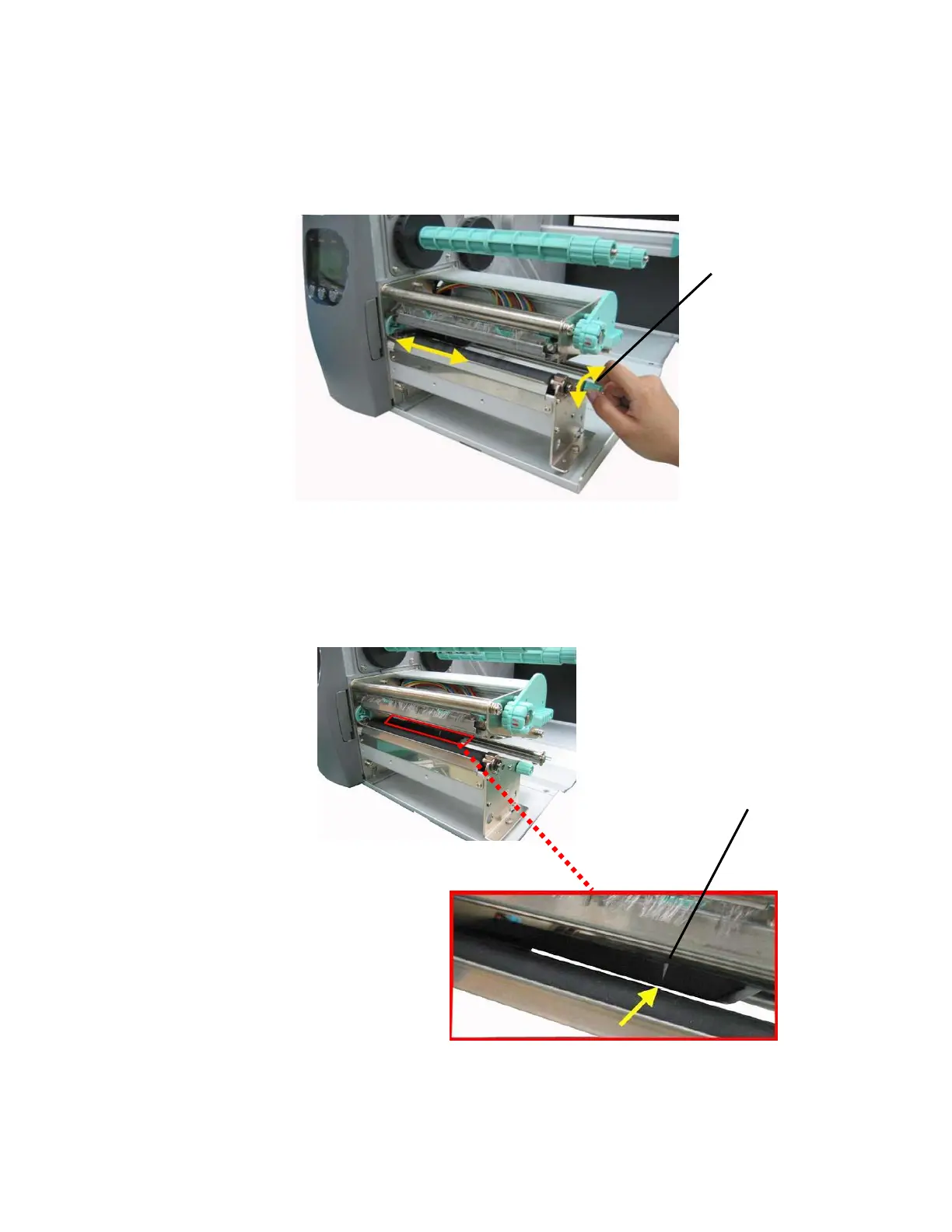

Fig. 5.2.1.k Adjusting the sensor position
16. The right position is found when the pointer is located
above the material’s gap.
Fig. 5.2.1.l The pointer indicates the sensor position
Setting knob
Pointer
