Handling of Consumables 35
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX Operator’s Manual LOGIJET T4 /T6 /RFID Edition 1.3
Ribbon supply
shaft
Ribbon rewind
shaft
Printhead
Ribbon

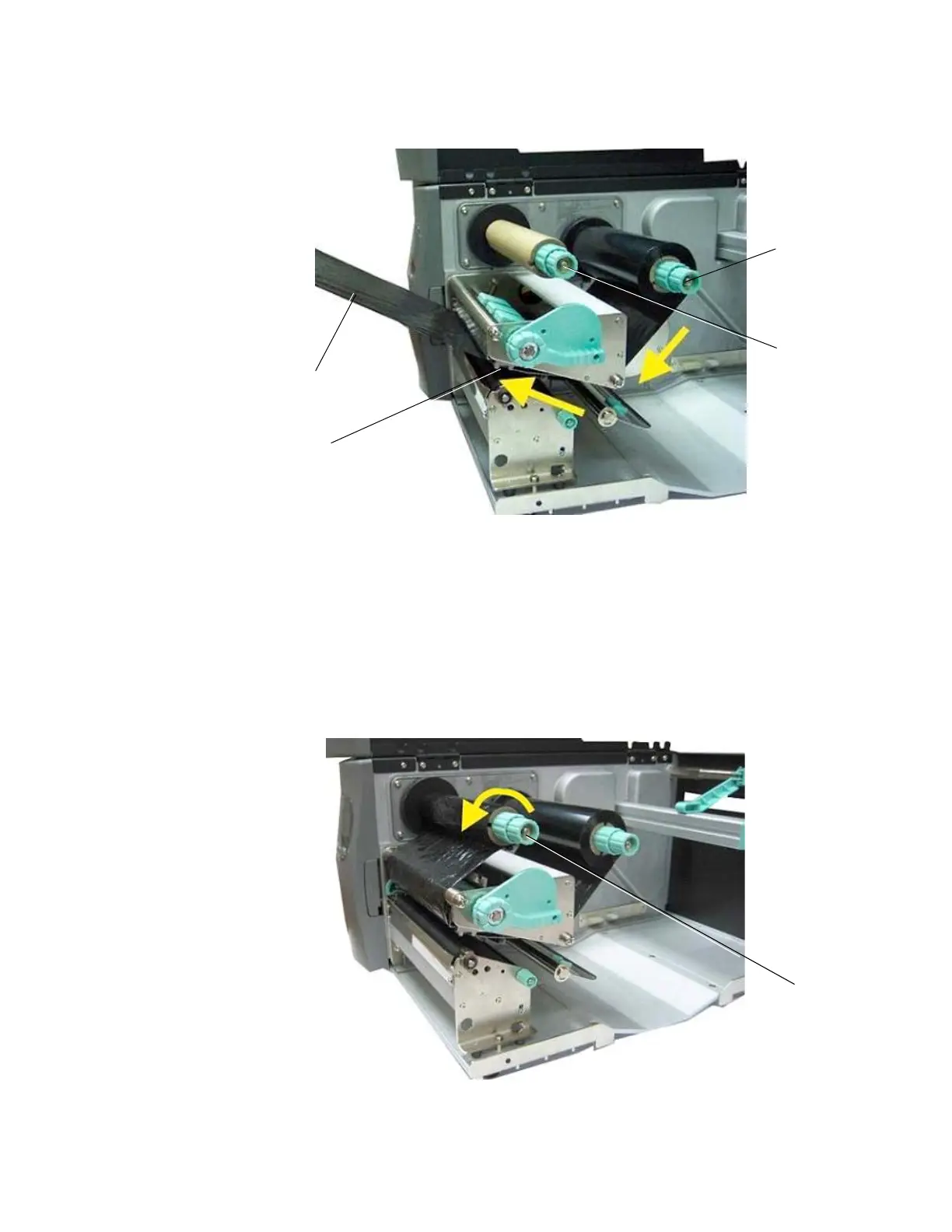

Fig. 5.3.1.d Feeding through the ribbon below the printhead
9. Route the ribbon to the rewinding mandrel and fasten it to
the ribbon sleeve (turn up the ribbon once so that the
adhesive part at the beginning of the ribbon can be used).
!
Make sure that the ribbon rewind direction is correct. (Compare
figure 5.3.1.b.)
Rewind shaf
t
Fig. 5.3.1.e Tautening the ribbon by turning the ribbon rewind shaft
