Microplex SOLID 50 A3 - 3 - Installing a New Fuser

Operator Maintenance 121
_______________________________________________________________________________________________
_______________________________________________________________________________________________
MICROPLEX Operator’s Manual SOLID 50 A3 - 3 Edition 2.1
Installing a new fuser
5. Remove the packaging from the new fuser.

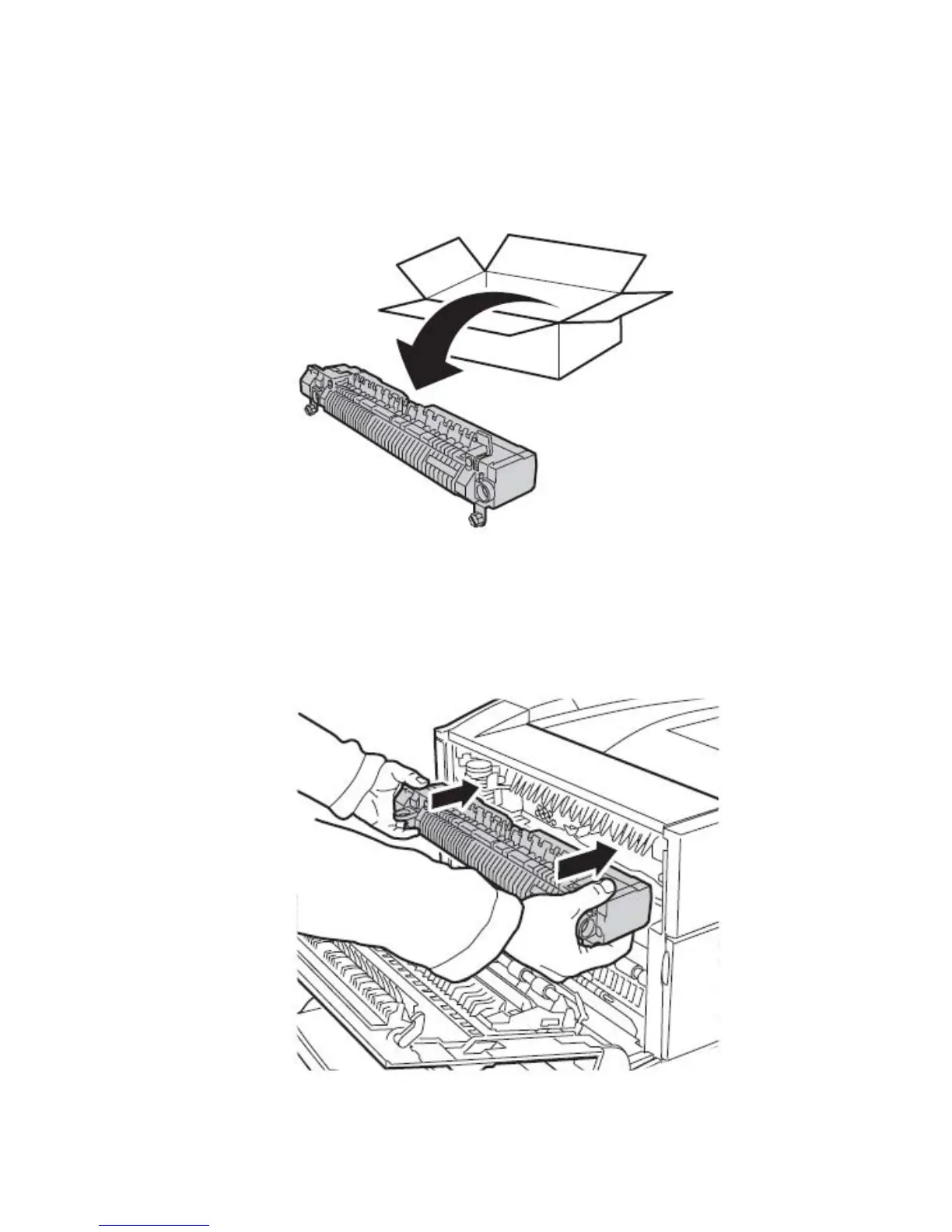

Fig. 6.2.k Unpacking the new fuser
6. Align the fuser with the opening in the printer, and then slide it into
place.
Fig. 6.2.l Sliding the new fuser into the printer
