MICROPLEX Operator’s Manual SOLID 50 A3 - 3 Edition 2.1
7.4.7. Clearing Jam inside the Duplex Unit
1. Pull up on handle to open the duplex unit (Door D).

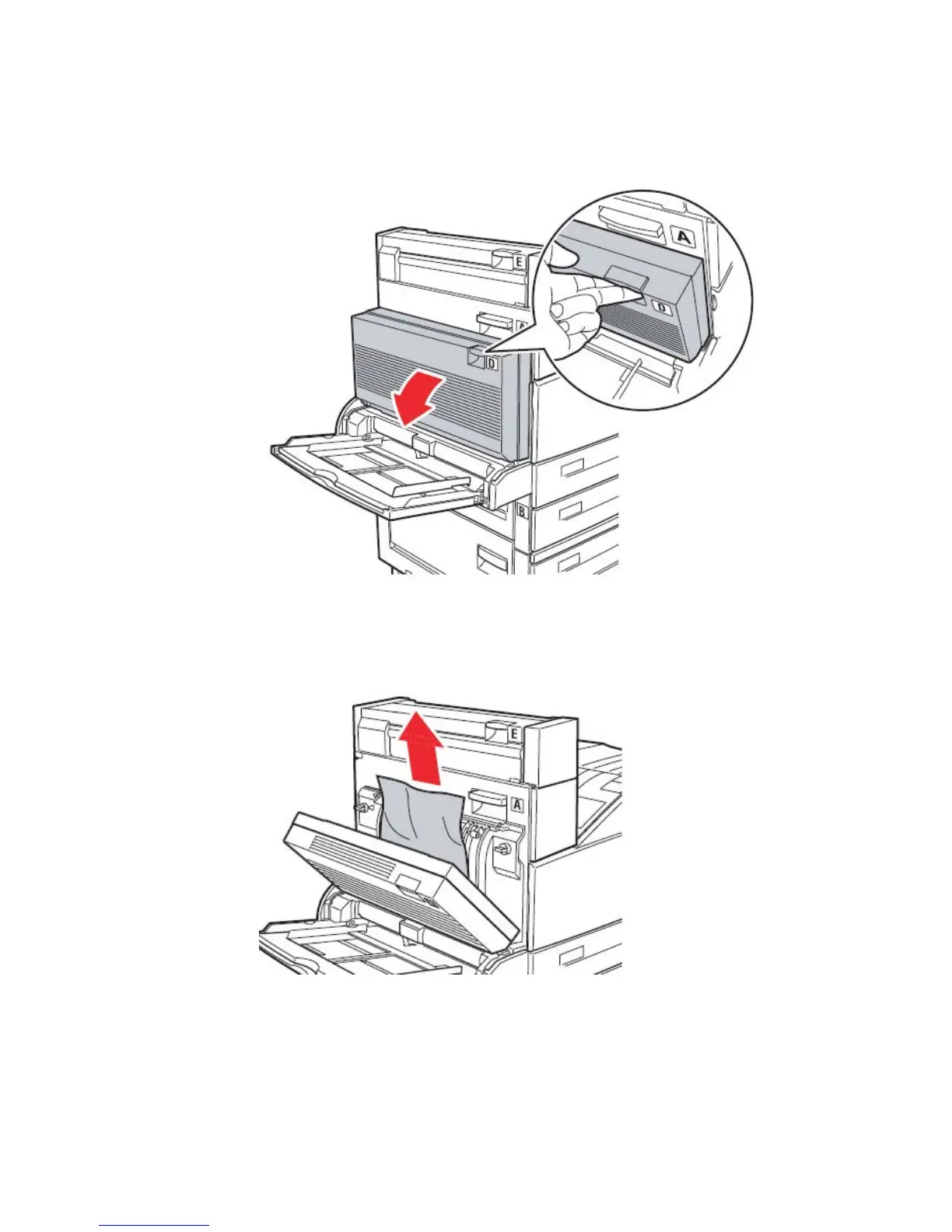

Fig. 7.4.7.a Opening the door D
2. Pull the sheet straight out.
Fig. 7.4.7.b Removing the paper
If the paper is not visible or there is not enough showing to grasp easily,
it is already behind door E.
