MICROPLEX Operator’s Manual SOLID 50 A3 - 3 Edition 2.1
5. Close cassette 2.
6. Close the cassette 2 side door (Door B).

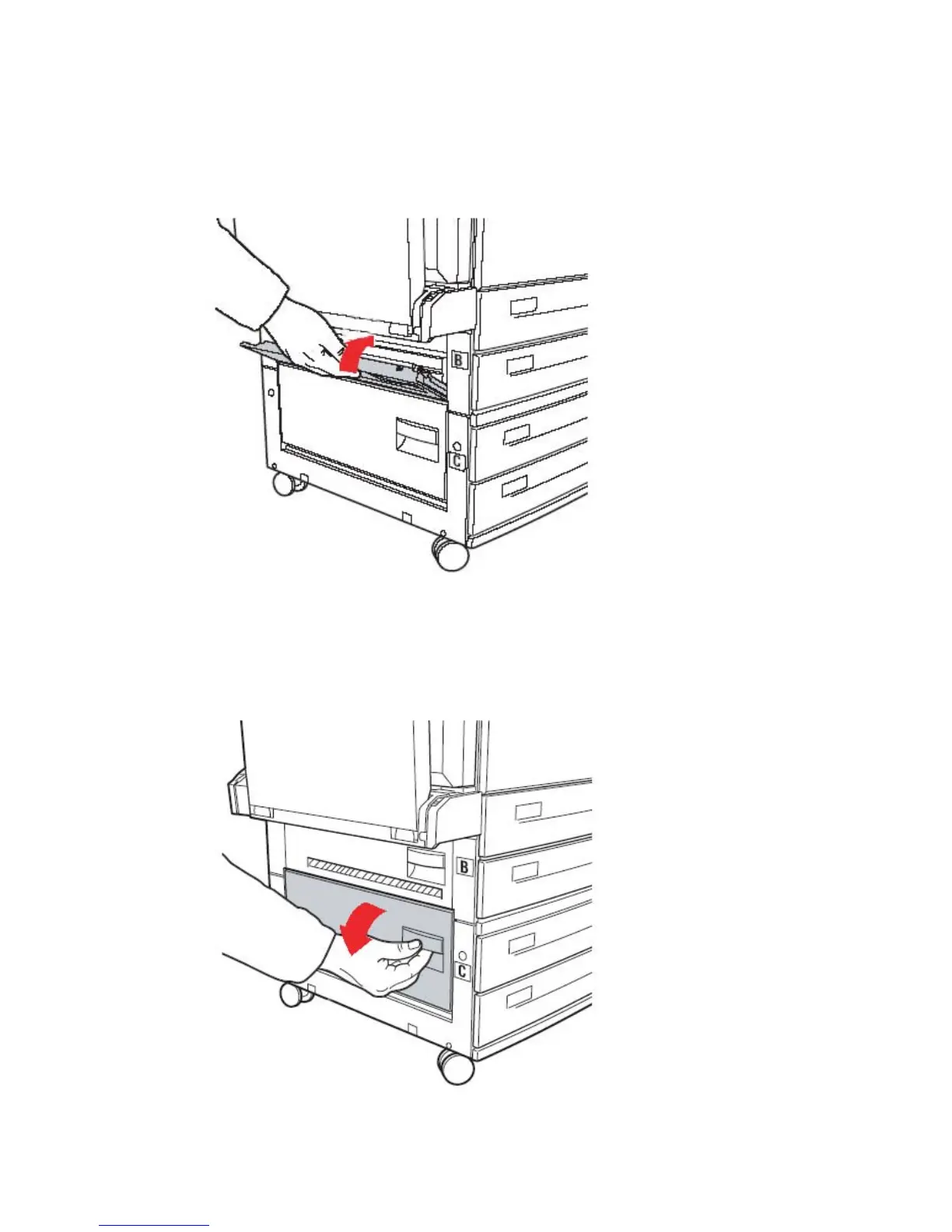

Fig. 7.4.4.d Closing door B
7.4.5. Clearing Jam inside Cassette 3 and Cassette 4
1. Open the side door of cassettes 3 and 4 (Door C).
Fig. 7.4.5.a Opening door C
