4-7. Environmental Specifications
A. Temperature Specifications
Operating Temperature Range Storage/Transportation Temperature Range
41 to 113°F (5 to 45°C)
−4 to 140°F (−20 to 60°C)
Temp_2016- 07
SECTION 5 − INSTALLATION
! Only qualified persons should in-
stall, operate, maintain, and re-
pair this unit.
! Installation must meet all Nation-
al, State, and Local Codes − have
only qualified persons make this
installation.
! Do not move unit by pulling on
simulator, router, helmet, or ca-
bles or equipment may tip.
! Do not use this equipment to sup-
port personnel, large tools, or
other material.
NOTICE − Use training system only in-
doors and away from sources of high fre-
quency (TIG welders) and other types of
electrical interference. It may be neces-
sary to enclose nearby electrical wiring
in conduit if unit is affected by inter-
ference.
NOTICE − Do not use training system in
damp or wet locations. Keep training
system components dry.
NOTICE − Do not position training sys-
tem where the cameras are in direct sun-
light. High intensity sunlight can interfere
with gun tracking.
NOTICE − Do not install or use the Aug-
mented Arc in the same area as live
welding equipment.
1 120 Volt, 15 Amp AC Grounded
Receptacle
2 Input Power Cord(s)
3 Surge-Protected Power Strip
Position unit near the 120 volt AC recep-
tacle but away from obstructions that
may restrict movement of cables and
gun/electrode
holders.
A 120 volt AC, 15 amp individual
branch circuit protected by time de-
lay fuses or circuit breaker is
required. Use of a surge-protected
power strip is recommended.
Loc_AugArc
2016-08 / 161-092

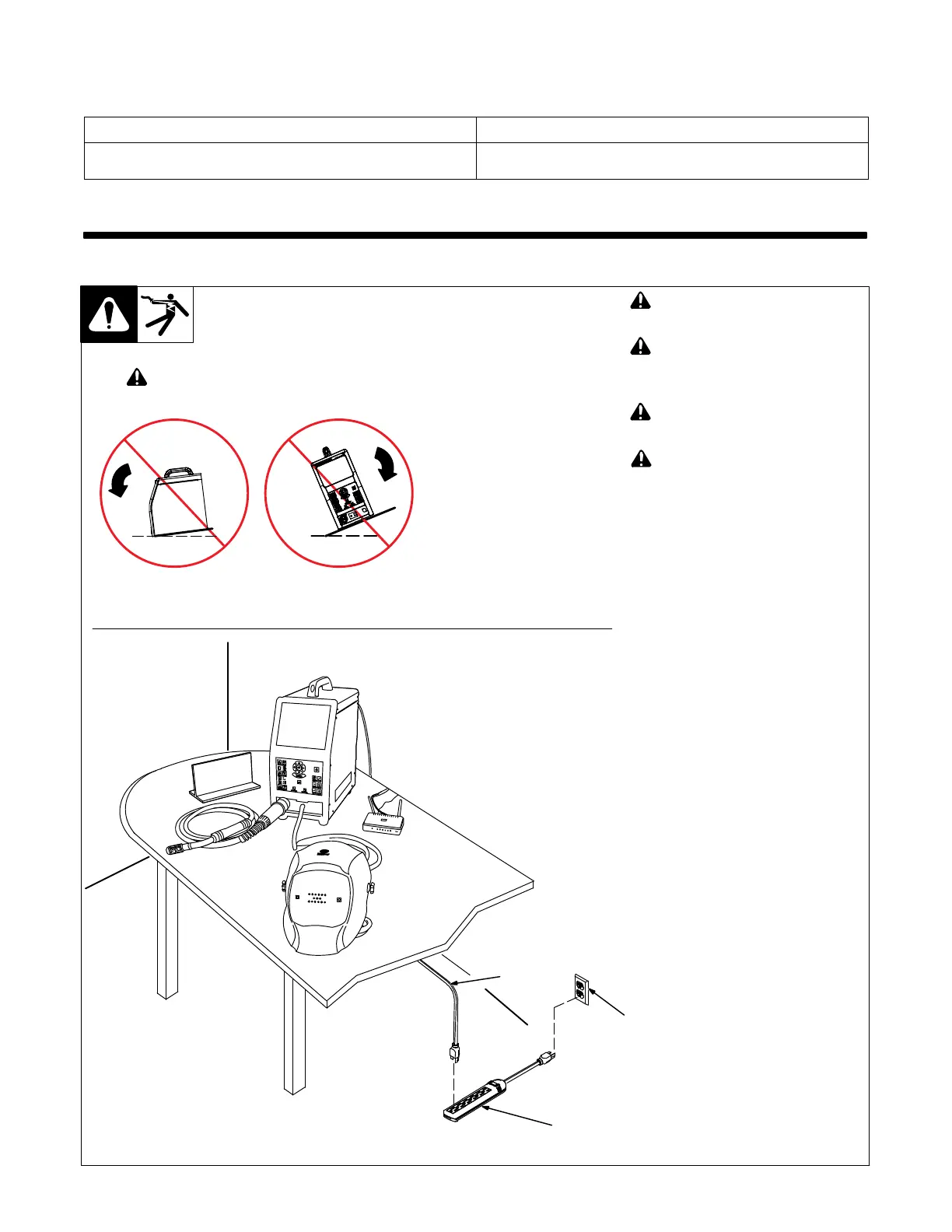

5-1. Selecting A Location
1
2
! Do not move or operate unit
where it could tip.
3
To Next Page
