Miller AugmentedArc - 5-12. Connecting Weld Cables

OM-278680 Page 15

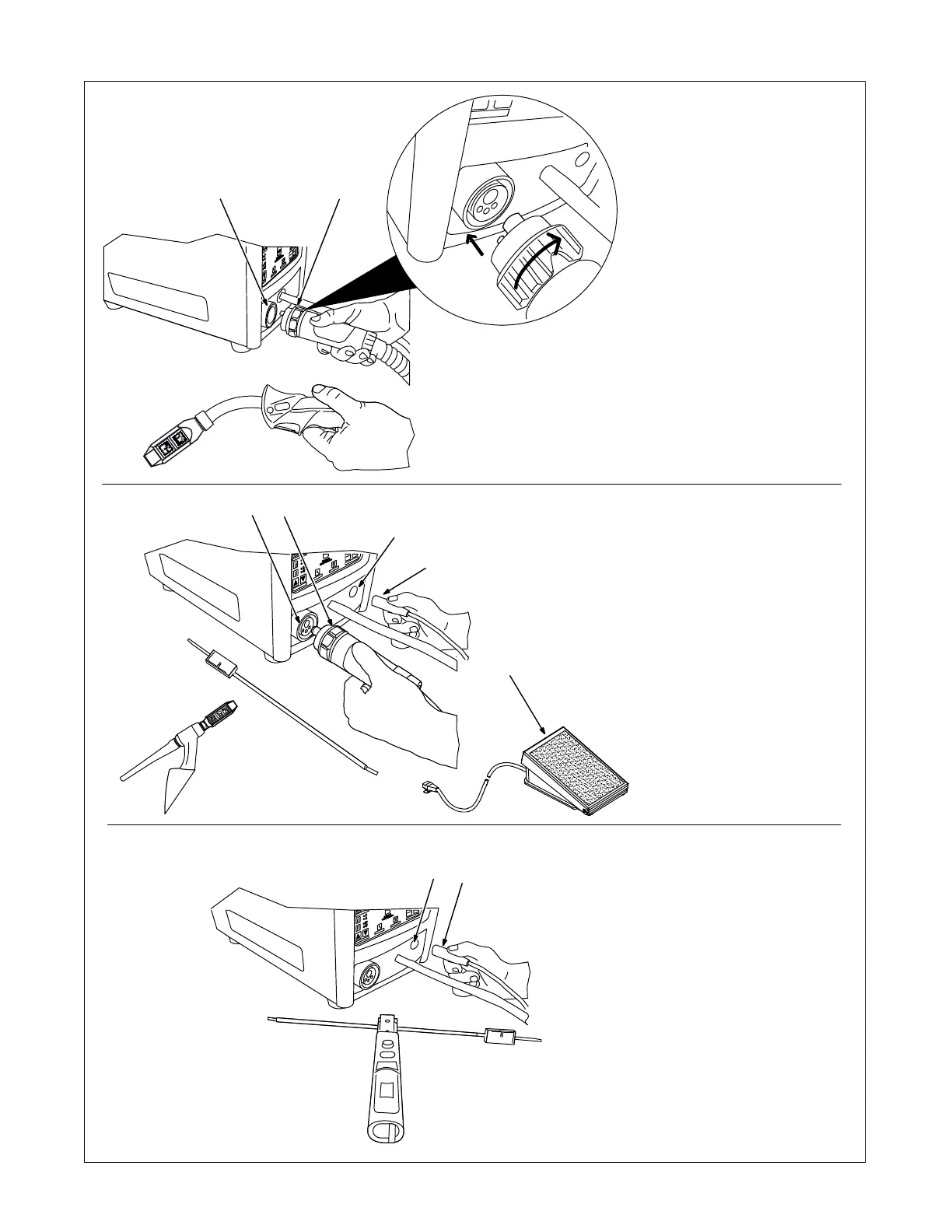

MIG/FCAW Connections
1 MIG/FCAW Cable Connector
2 MIG/FCAW Receptacle
Align pins in connector with holes in re-
ceptacle. Insert connector in recepta-
cle and tighten collar clockwise.
5-12. Connecting Weld Cables
2
161-103 / 104 / 105 / 106
TIG Connections
3 TIG Cable Connector
4 TIG Cable Receptacle
Align pins in connector with holes in re-
ceptacle. Insert connector in receptacle
and tighten collar clockwise.
Optional Foot Pedal Kit Connections
 TIG foot pedal and adapter cable are
included in optional TIG Foot Pedal
Kit.
5 TIG Foot Pedal
6 Adapter Cable
7 TIG Foot Pedal Receptacle
Insert foot pedal connector (RJ-45) into
adapter cable receptacle. Insert adapter
cable connector into TIG foot pedal re-
ceptacle on simulator.
Stick Connections
8 Stick Cable Connector
9 Stick Cable Receptacle
Align pins in connector with holes in
receptacle. Insert connector in re-
ceptacle.
1
34
8
5
6
7
9
