Miller AugmentedArc User Manual

OM-278680 Page 7
1
2
3
4
5

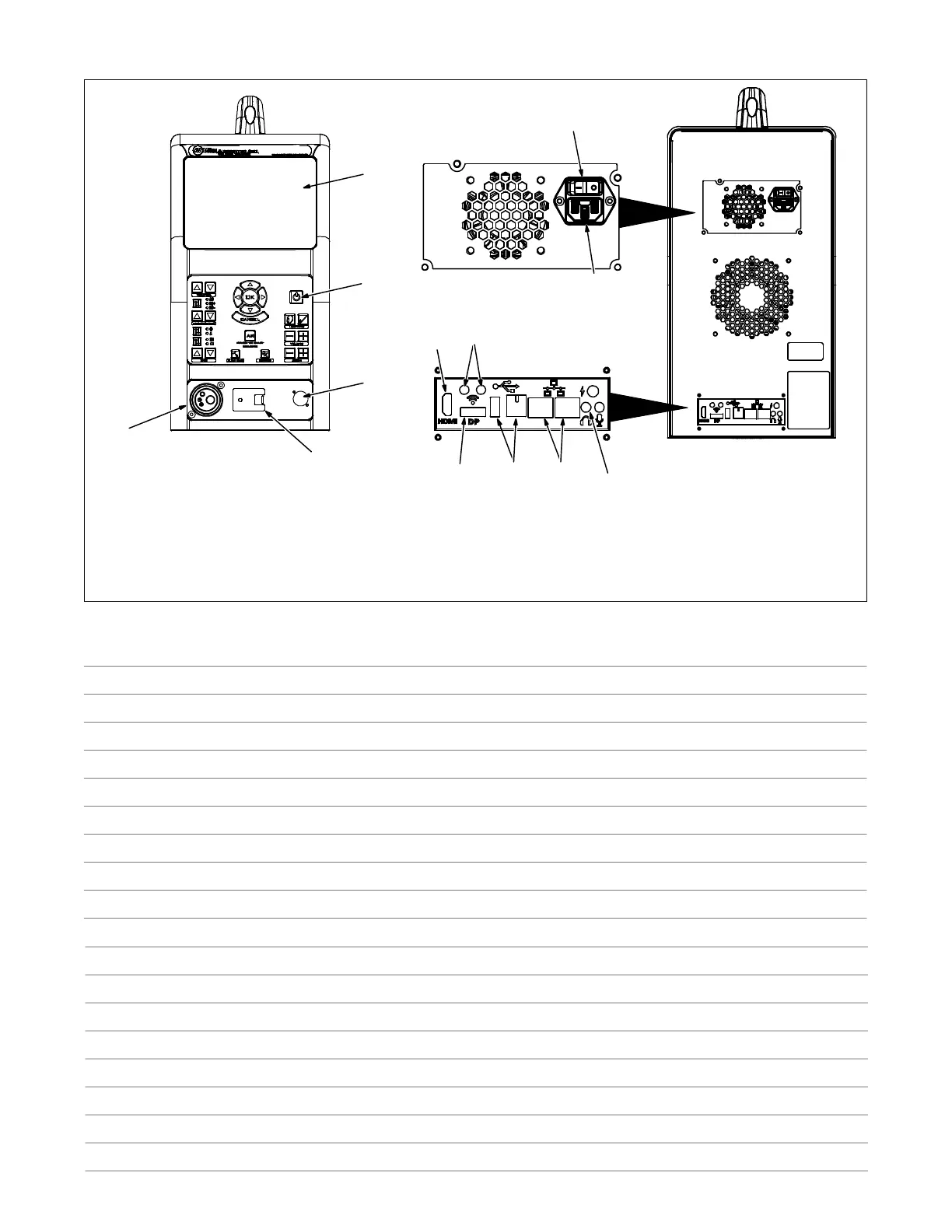

5-2. Simulator Components
1 Display Screen
2 Control Panel (See Section 6-1)
3 Stick Cable And TIG Foot Pedal
Receptacle
4 AR Helmet Cable (Cable Not Shown)
5 MIG/FCAW And TIG Cable Receptacle
6 Simulator Input Power Switch
7 120 Volt AC Input Receptacle
8 HDMI Receptacle
9 Audio Output Receptacle
10 WiFi Antenna Receptacles
11 USB Receptacle
12 Internet/Ethernet Receptacle
13 DisplayPort Receptacle
276 687-A
7
9
10
11
12
6
8
13
