SECTION 10 − INSTALLING OPTIONAL MAGNIFYING LENS
The magnifying lens can improve the
visibility of the helmet display.
1 Magnifying Lens
2 Magnifying Lens Holder
3 Helmet Lens Assembly

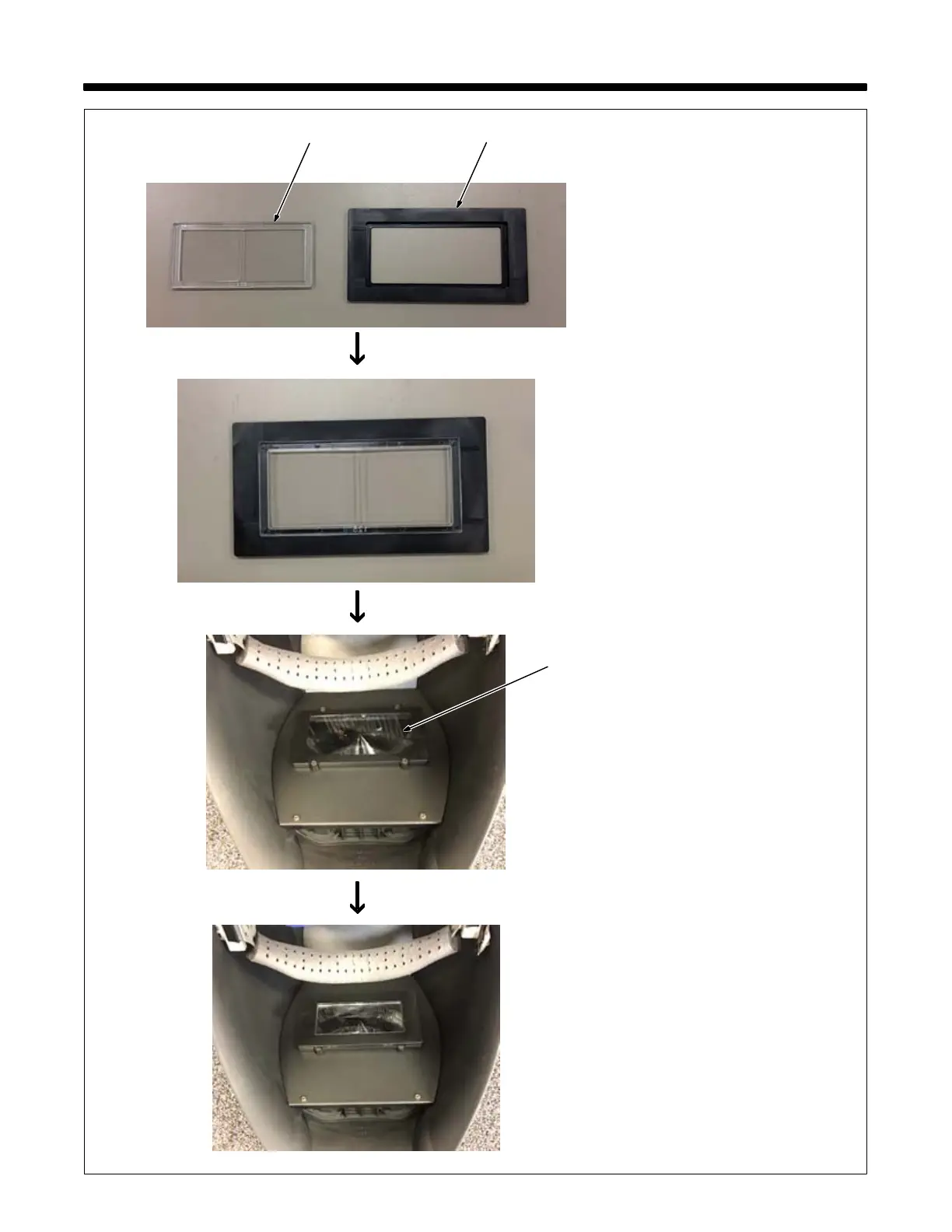

Insert the magnifying lens into the re-
cessed side of the magnifying lens
holder.
With the recessed side of the magni-
fying lens holder facing down, place
the magnifying lens holder on the
helmet lens assembly. Magnets in
the magnifying lens holder will se-
cure it in place.
3
1
2
