Miller AugmentedArc User Manual

OM-278680 Page 12

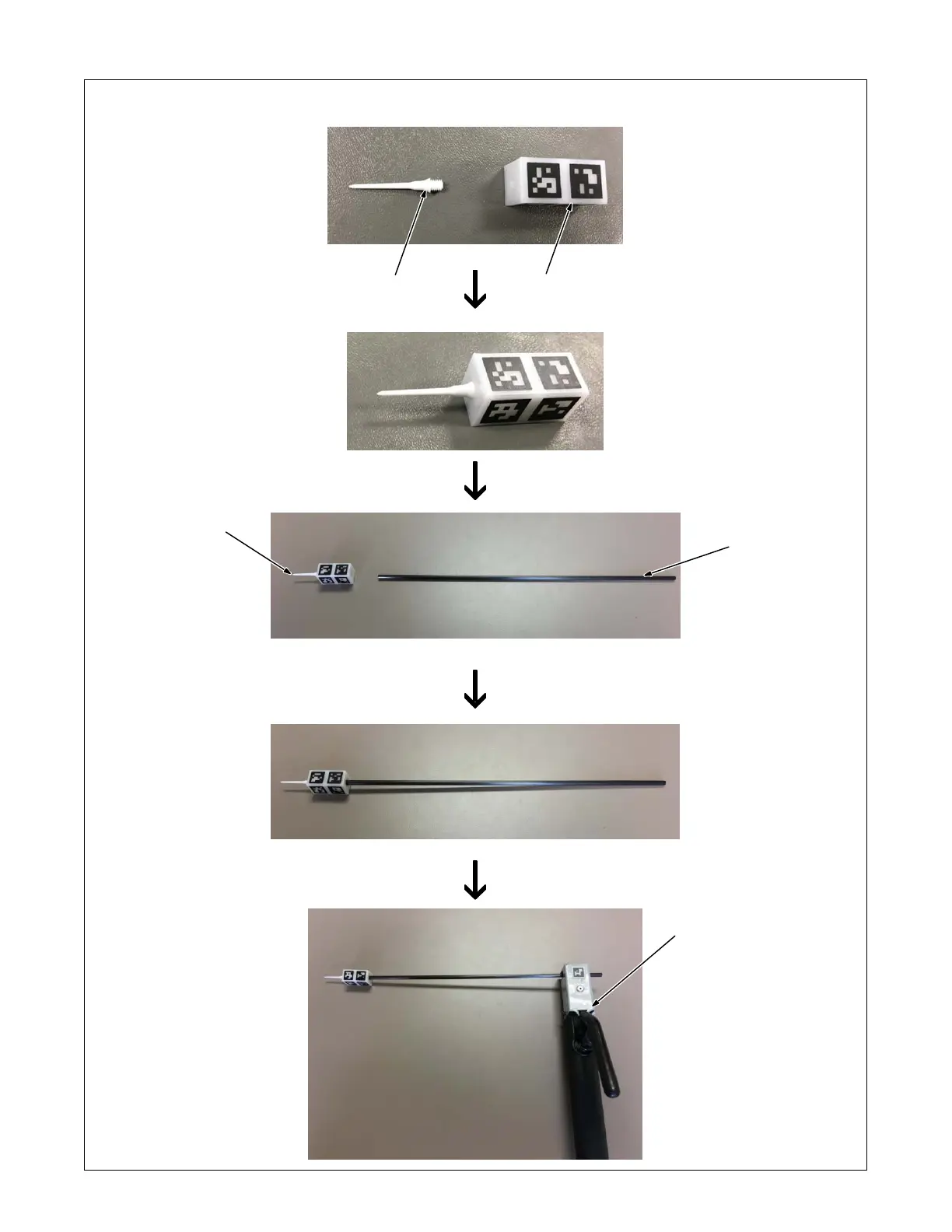

5-8. Assembling AR Stick Electrode
1 Marker Tip
2 Marker Block
Screw the marker tip into the
marker block.
3 Marker Assembly
4 Electrode
Press fit the marker assembly
over the tip of the electrode.
 This assembly will also be
used as the TIG filler rod.
5 Electrode Holder
Place the stick electrode in the
electrode holder as shown. With
the handle facing up, the electrode
should face left.
3
4
5
1
2
