You can also set the
passing score, whether
the equipment settings
are automatically set to
proper values, and
whether the student can
continue with incorrect
equipment settings.

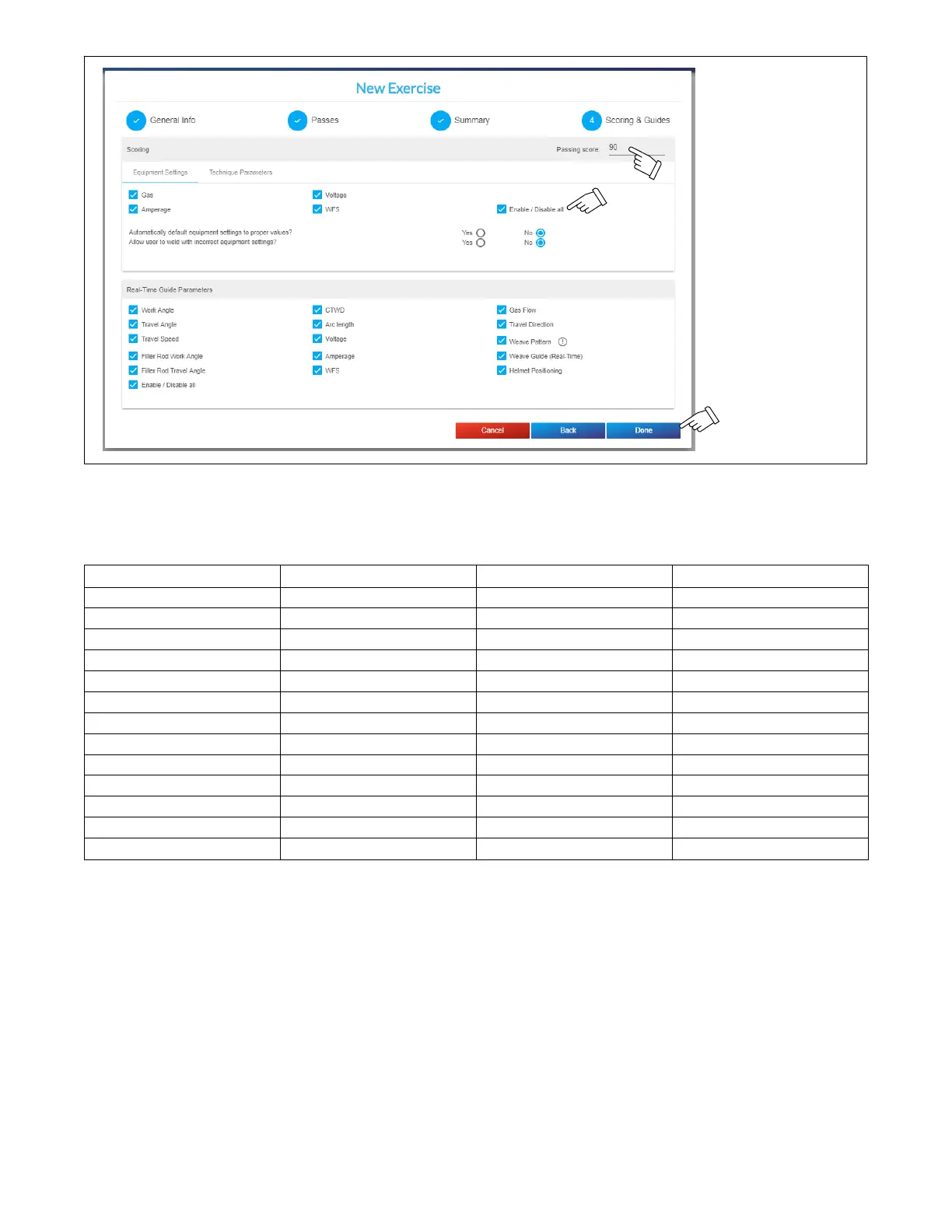

.Figure 9-25. Exercise Scoring & Guides Equipment Settings Screen
D. Scoring
The AugmentedArc system provides three difficulty levels: beginner, intermediate, and advanced. The parameter tolerances for each level are as
follows:
Beginner Intermediate Advanced
V (volts) ± 2 ± 1.5 ± 1
A (amps) ± 20 ± 15 ± 10
WFS (inches/min) ± 20 ± 15 ± 10
Gas (cubic feet/hour) ± 10 ± 7 ± 5
Work Angle (deg) ± 15 ± 10 ± 5
Travel Angle (deg) ± 15 ± 10 ± 5
CTWD (inches) ± 0.25 ± 0.175 ± 0.10
Arc Length (inches) ± 0.20 ± 0.15 ± 0.10
Travel Speed (inches/min) ± 6 ± 4 ± 2
Aim (inches) ± 0.25 ± 0.20 ± 0.15
Rod Work Angle (deg) ± 20 ± 15 ± 10
Rod Travel Angle (deg) ± 25 ± 20 ± 15
By default, all Real-Time Guides are enabled. The Real-Time Guides can be individually configured when developing a customer exercise using
the Teacher Software.
E. Copy Module
To access options to copy or delete a module, unit, or task, click the
…
symbol. To edit a task, click the edit icon.
