4. Pull trigger to begin welding. Weld must be a minimum 4 in. (101 mm) in length to satisfy Miller weld test. You must achieve a passing score (90 and
above for Miller assignments) three times to advance to the next assignment (Figure 7-21). Select another assignment or touch to logout.
The requirements for weld joint length, passing test score, and number of passing tests required can be changed by the system administrator
(Section 9).
Orange indicates WELD tests.Blue indicates SIM tests.
Corresponding
SmartGun Display
Touch circular arrows
to scroll through test
histories.

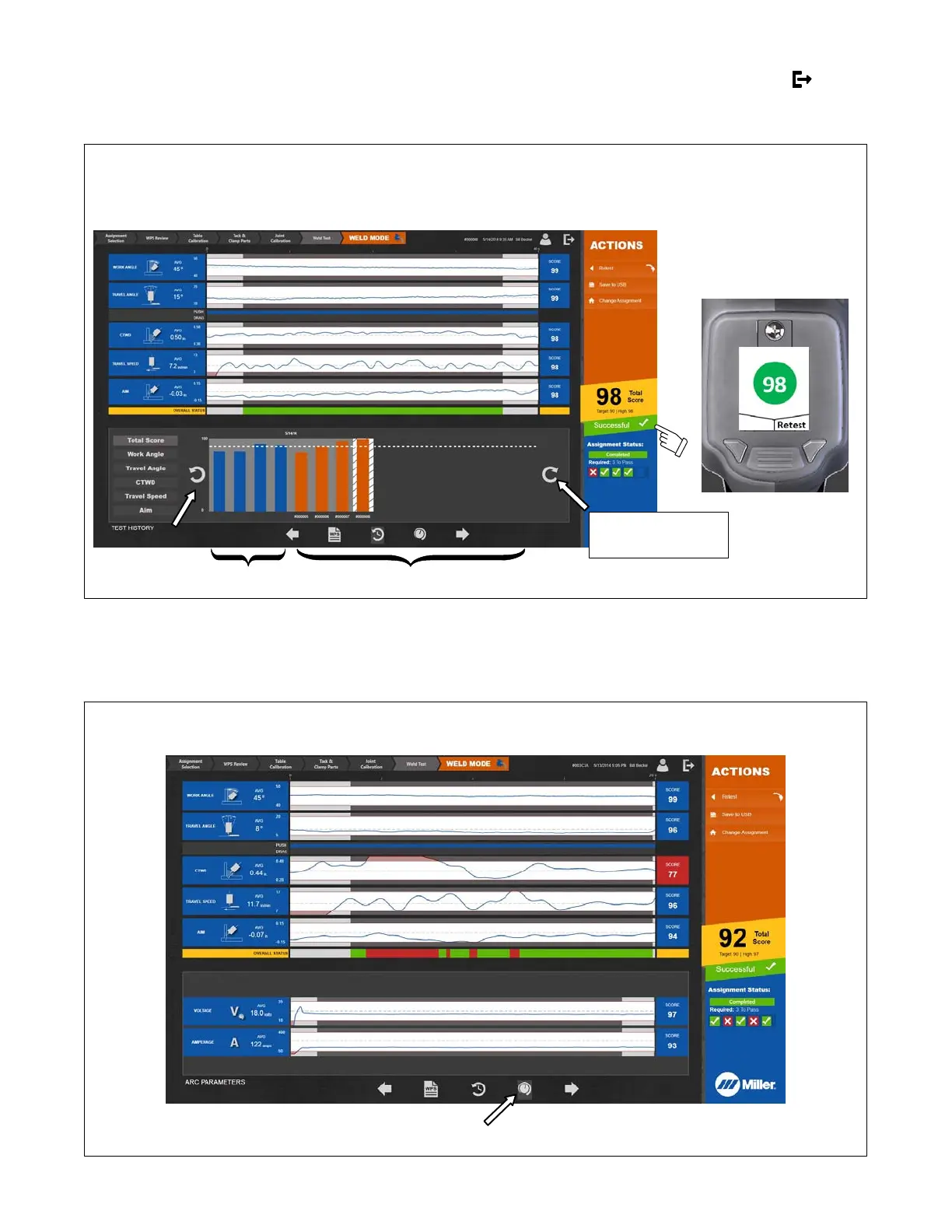

Figure 7-21. Successfully Completing The Welding Assignment
5. During weld mode tests, arc parameters (Volts, Amps) are captured in addition to the gun technique parameters. Select the Arc Parameters icon to
view associated graphs and scores.
These captured parameters do not affect the Total Score or the Completion Status of the test or assignment.
Touch to view arc parameters.
Figure 7-22. Viewing Arc Parameters
