1-8

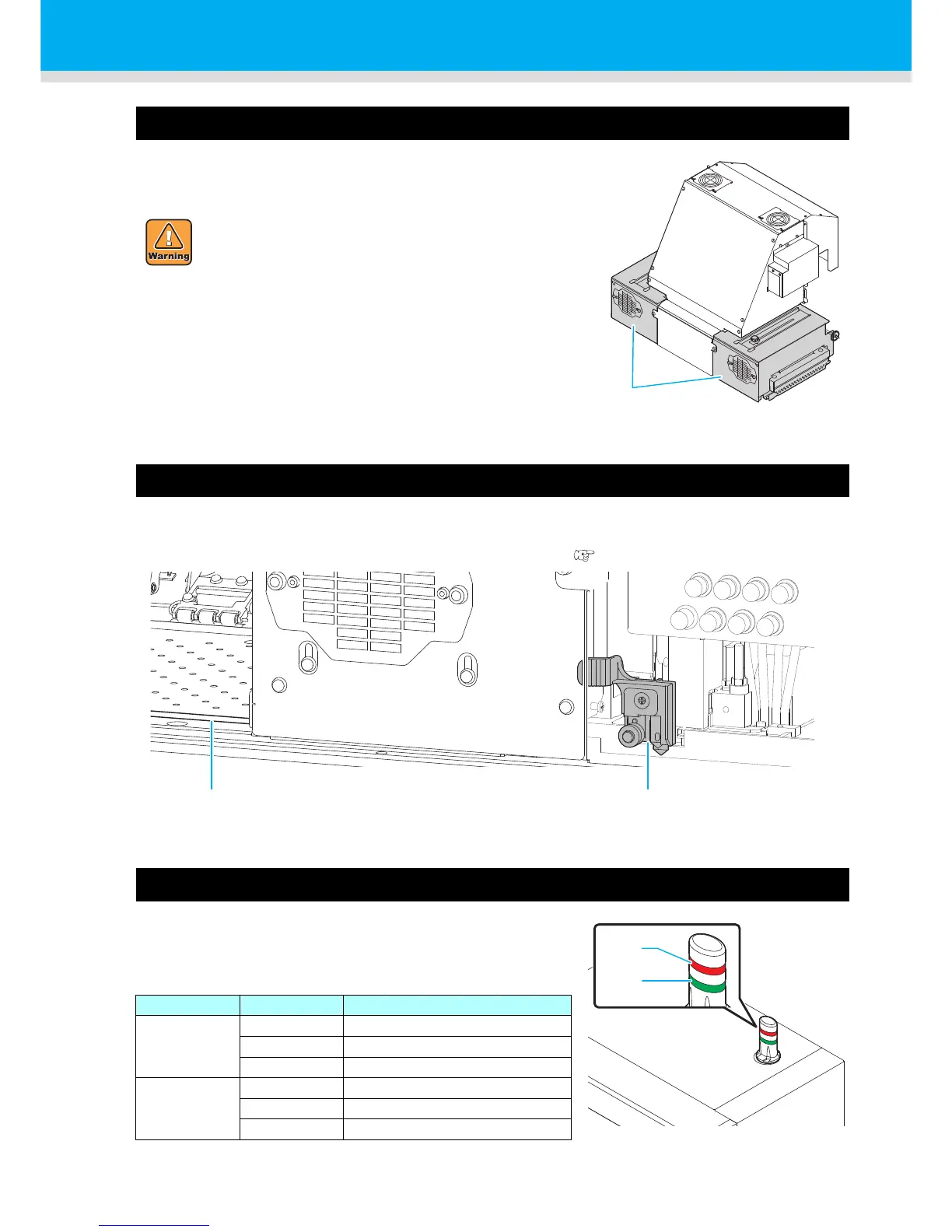

Carriage
The carriage has the ink head for printing, the LED UV unit and the
cutter unit for cutting media.
Cutter unit and slot for cutting
The carriage is provided with a cutter unit for cutting off the media that has been printed on.
The cutter cuts off the sheet of media along the slot for cutting on the platen.
The cutter is consumables. If it gets dull, replace it with new one. (P.4-32)
Indicator
Functions of the Indicator on the top right of this unit are described
here.
The indicator has a green and a red lamp.
• Do not expose your naked eyes directly to the light
irradiated from the LED UV when it lights.
• Do not touch the LED UV unit when it is being lit or
just after it is set OFF. It may cause a burn injury, as it
is very hot.
Color of lamp State of lamp State of machine
Green
Lighting REMOTE
Blinking REMOTE (printing)
Off LOCAL
Red
Lighting Error has occurred (system down)
Blinking Error or warning has occurred
Off Normal
