Part Description

Values on the APL valve and airway pressure gauge are for reference only. The calibrated

patient's airway pressure is displayed on the user interface.

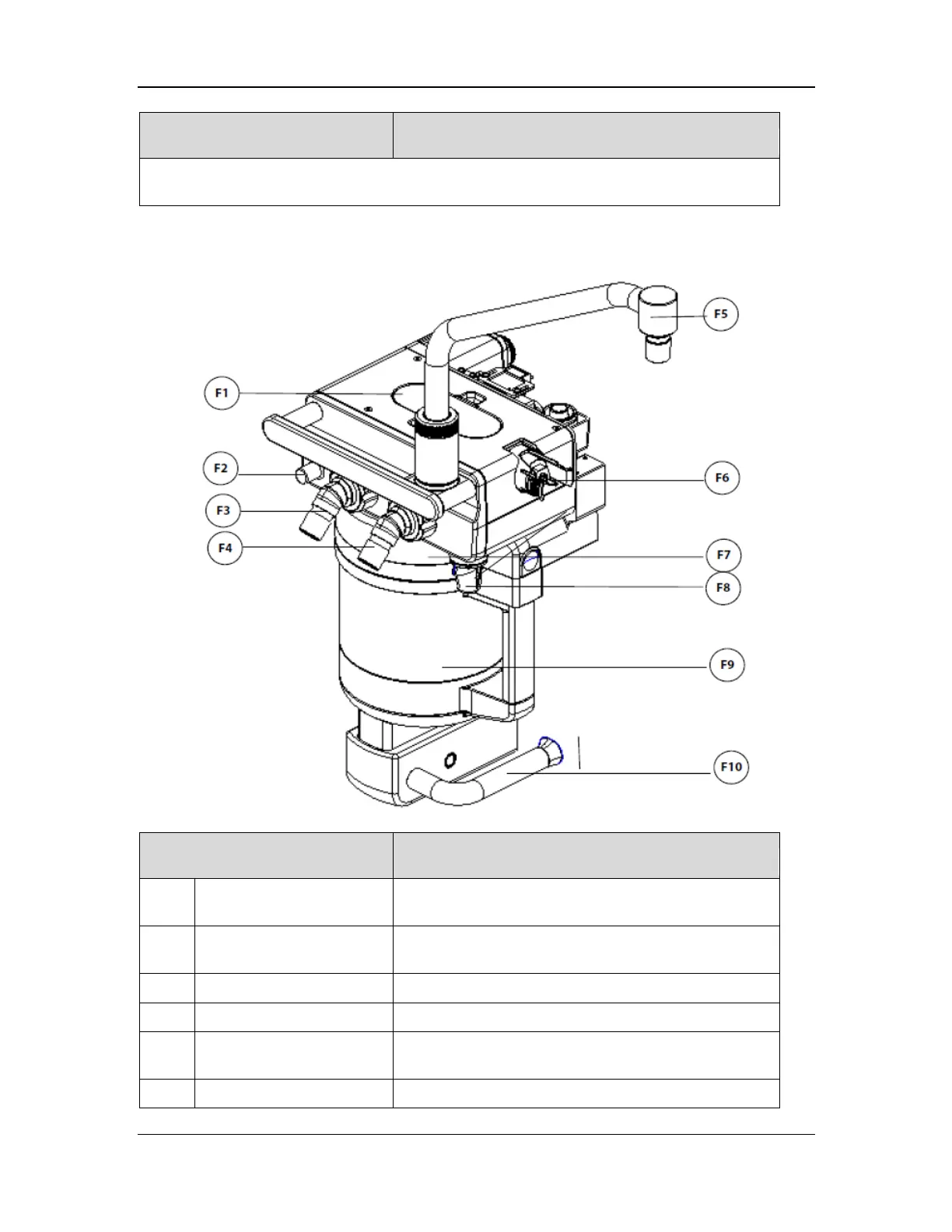

2.1.2.6 Breathing System

Part Description

Breathing check valve

inspection window

You can inspect the status of the inspiratory and

expiratory check valves from outside the machine.

Leak test plug

The leak test plug is used to connect the breathing tube

for the leak test.

Expiration connector

The breathing circuit has an expiration connector.

Inspiration connector

The breathing circuit has an inspiration connector.

Bag arm

The bag arm is used to connect the manual ventilation

bag.

O2 sensor

The O2 sensor is used to monitor the O2 concentration.
