2.2.6.4 Auxiliary Flowmeter Backlight Board

The auxiliary flowmeter backlight board is mainly used to provide lighting for the auxiliary

flowmeter.

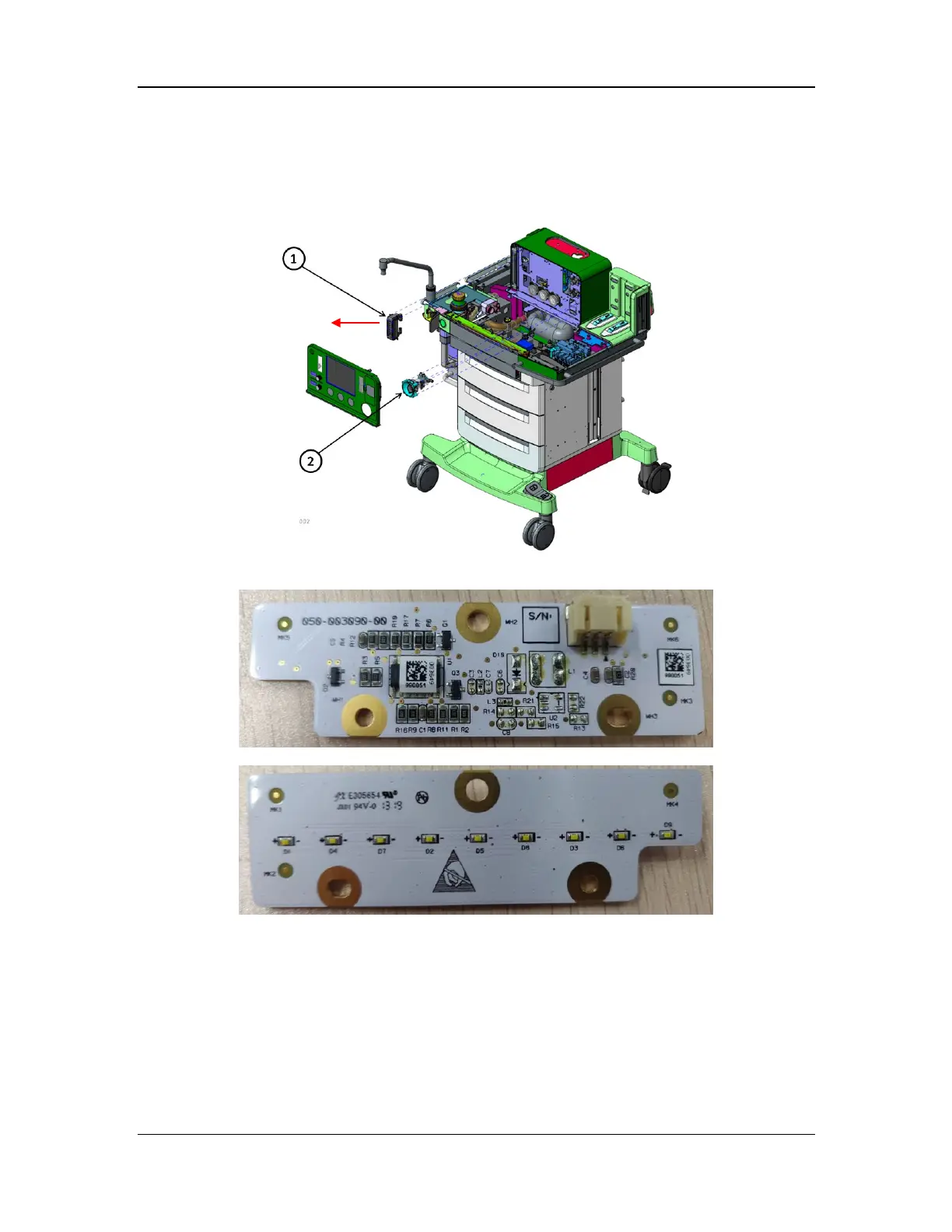

Installation position of the auxiliary flowmeter backlight board

Auxiliary flowmeter backlight board (top view)

Auxiliary flowmeter backlight board (bottom view)

The auxiliary flowmeter backlight

board is installed here.
