2-42

2.2.6.5 Auxiliary O2/Air Keyboard

The auxiliary O2/air keyboard is mainly used to turn on or off the auxiliary O2/air module.

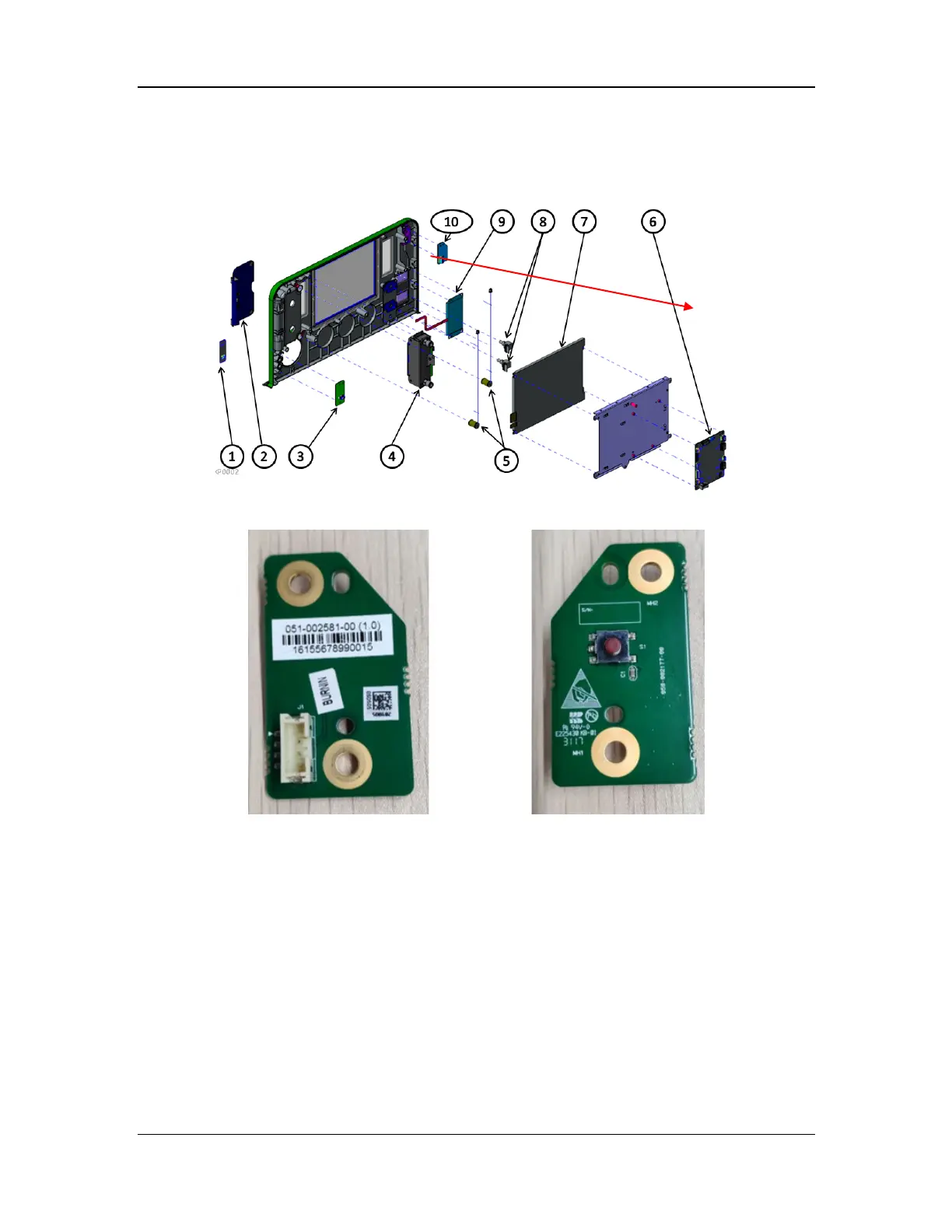

Installation position of the auxiliary O2/air keyboard

Auxiliary O2/air keyboard
