5 Connection of Equipment
(4) Wiring

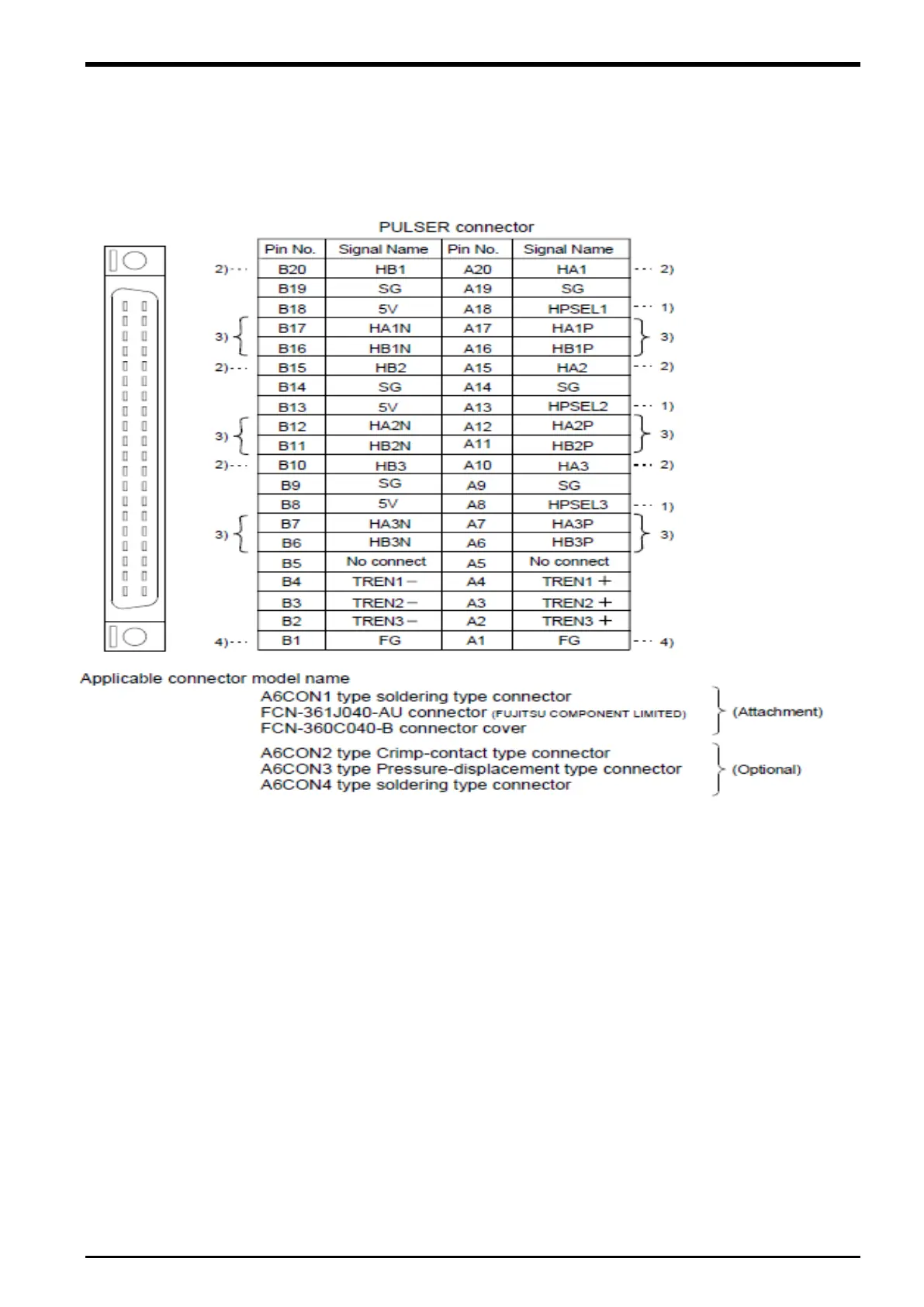

The pin layout of the Q173DPX PULSER connecter viewed from the unit is shown below.
Figure 5
−2 Pin assignment of the PULSER connector
Preparation of Equipment 5-17
