5 Connection of Equipment

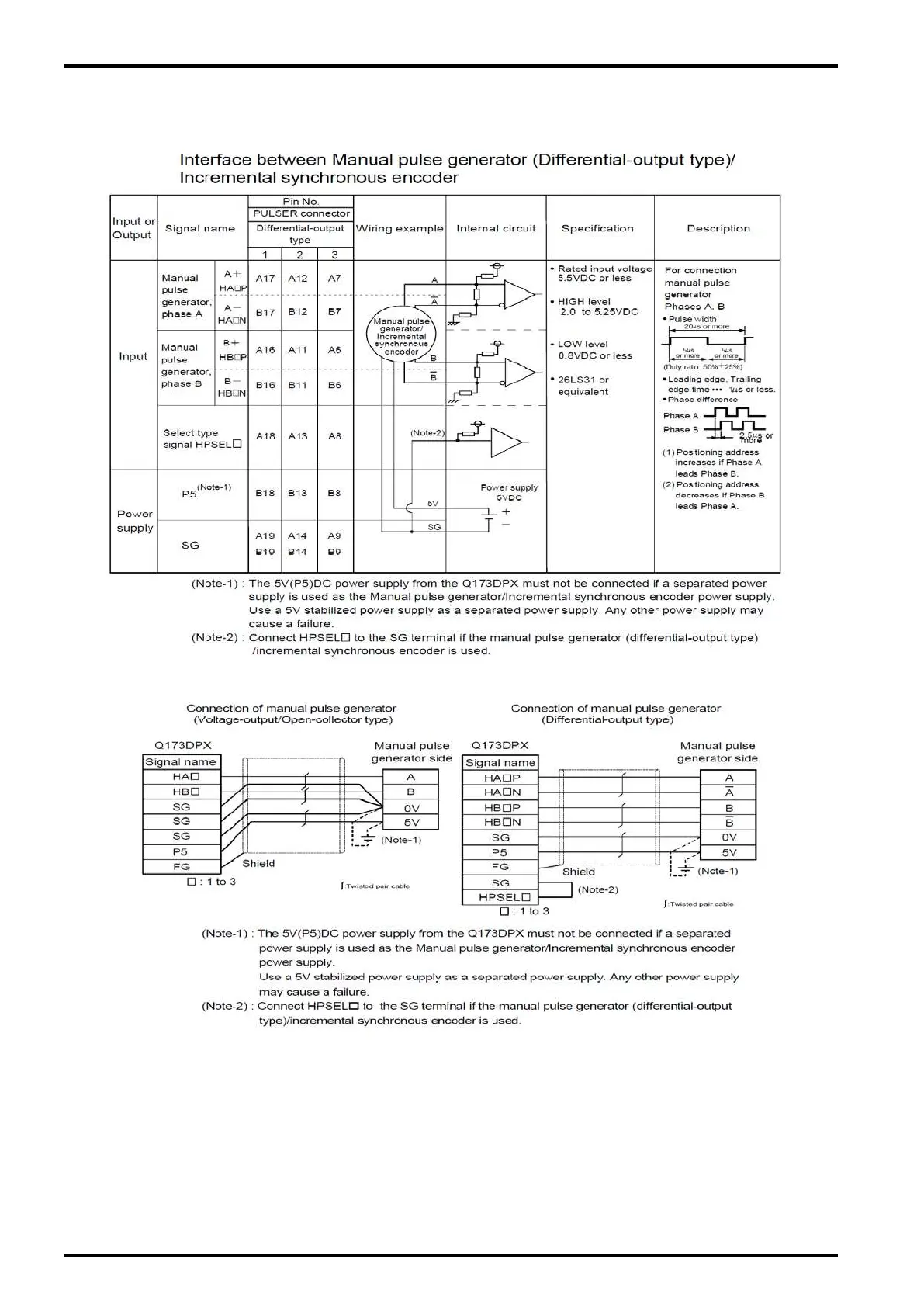

Interface between PULSER connecter and manual pulse generator (Differential-output type)/ Incremental

synchoronous encoder

Figure 5

−3 Wiring connection with rotary encoder

As above image, because DC5V voltage is output from Q173DPX unit, it makes possible to supply 5V from

Q173DPX unit to rotary encoder. When 24V encoder type of power supply is used, it makes possible to use

24V output from PLC power unit.

5-18 Preparation of Equipment
