5 Connection of Equipment

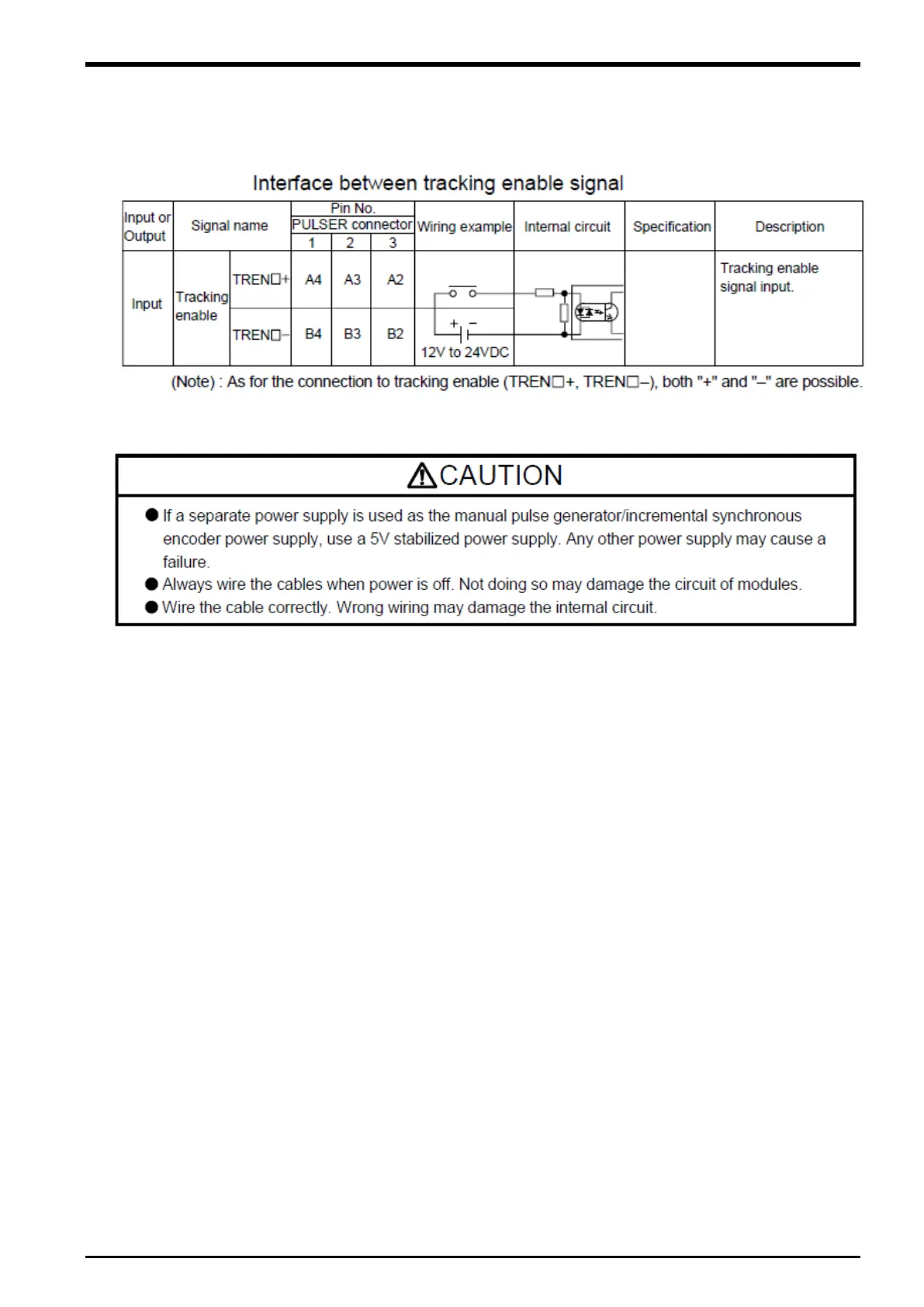

The interface between tracking enable signal is shown follow.
This signal is used for input signal when the
photoelectronic sensor is used to find workpieces so please
connect output signal of
photoelectronic sensor.
Figure 5
−4 Connected composition of tracking enable signal
Preparation of Equipment 5-19
