10 Connection of Equipment
Figure 10
−1 Wiring of the encoder for conveyors and encoder cable (CRnD-700 series controller)
Refer to "Table 21−3 Connectors: CNENC/CNUSR Pin Assignment" with pin assignment of connector
CNENC.

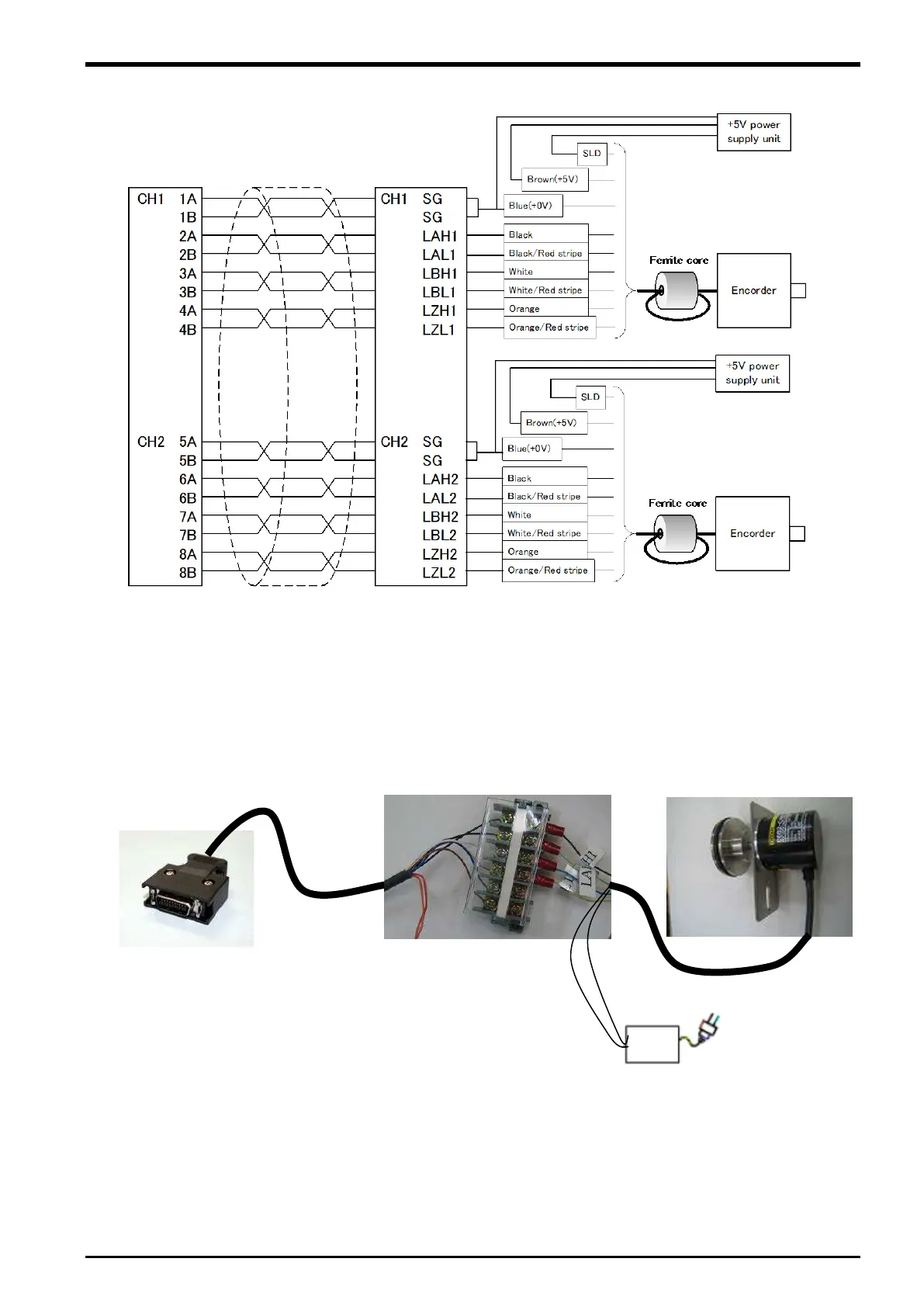

The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller. )
Figure 10
−2 Wiring example (CRnD-700 series controller)
CNENC connector
Terminal
5V
電源
Connection of Equipment 10-39
