15 Workpiece Recognition and Teaching (
“
C1
”
program)
(2) Tasks

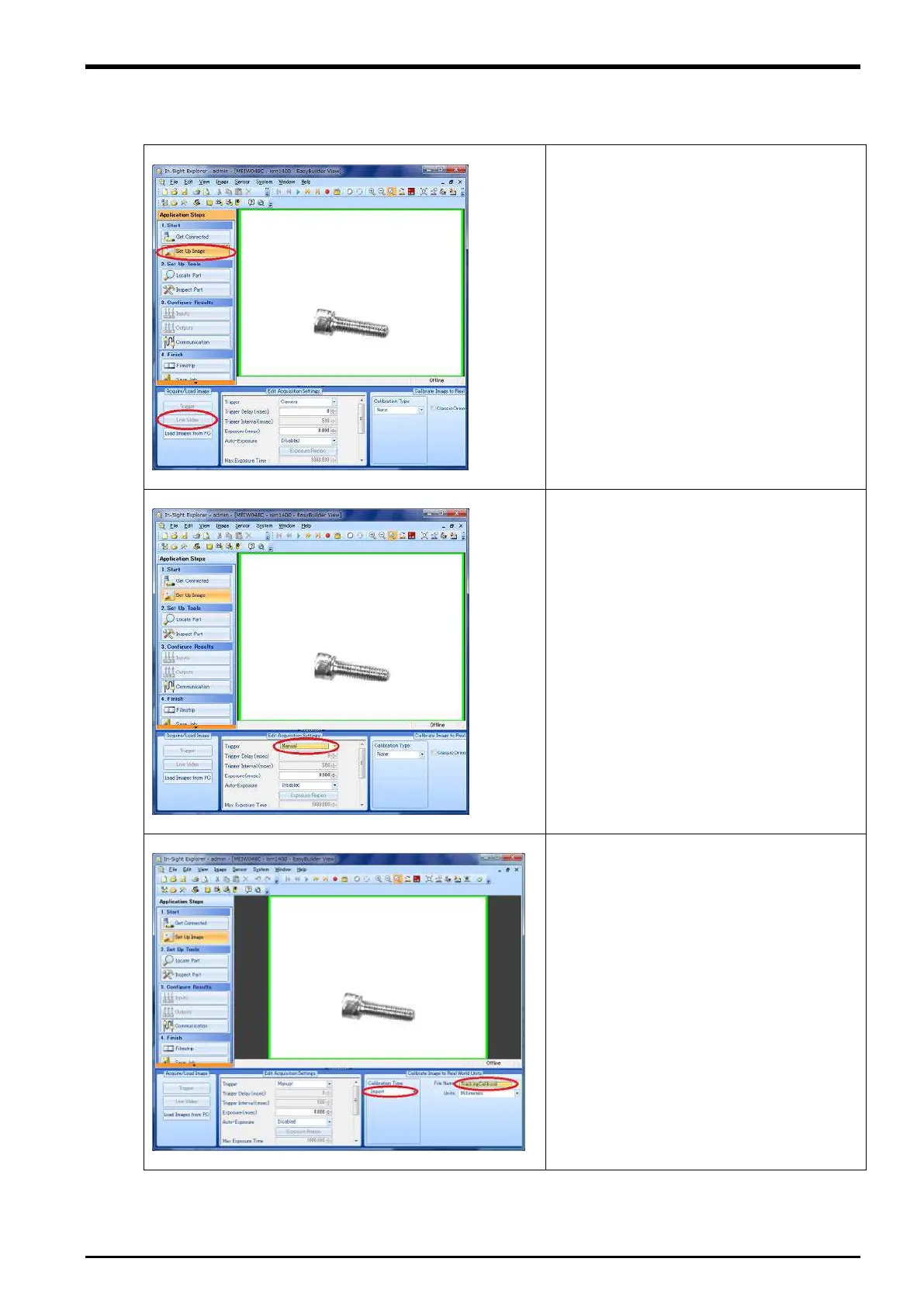

1) Make the vision program.
Take picture of workpiece.
Select [File] – [New Job] from the menu.
Click [Set Up Image] button from
“Application Steps”.
Click [Live Video] button.
Take picture of workpiece that does the
tracking.
Again, stop a live image clicking [Live
Video] button.
Change [Trigger] from "Camera" to
"Manual”.
8640(The i
mage trigger is abnormal) error
occurs when the robot controller outputs the
taking picture demand to the vision sensor
when you do not change.
Import the calibration data.
In [Calibration type], select "Import".
In [File Name], select “TrackingCalib.cxd"
registered when working about the B1
program.
Program for Vision Tracking 15-69
