6.4 Setting of Output (Y) Status when Changing between STOP and RUN
6
FUNCTIONS
(3) Processing
(a) Output (Y) status prior to STOP is output (Default)
After the output (Y) status before the STOP status is output, the sequence
program calculations are performed.
(b) Output is cleared
All outputs (Y) are cleared.
The output (Y) is provided after execution of sequence program operation.

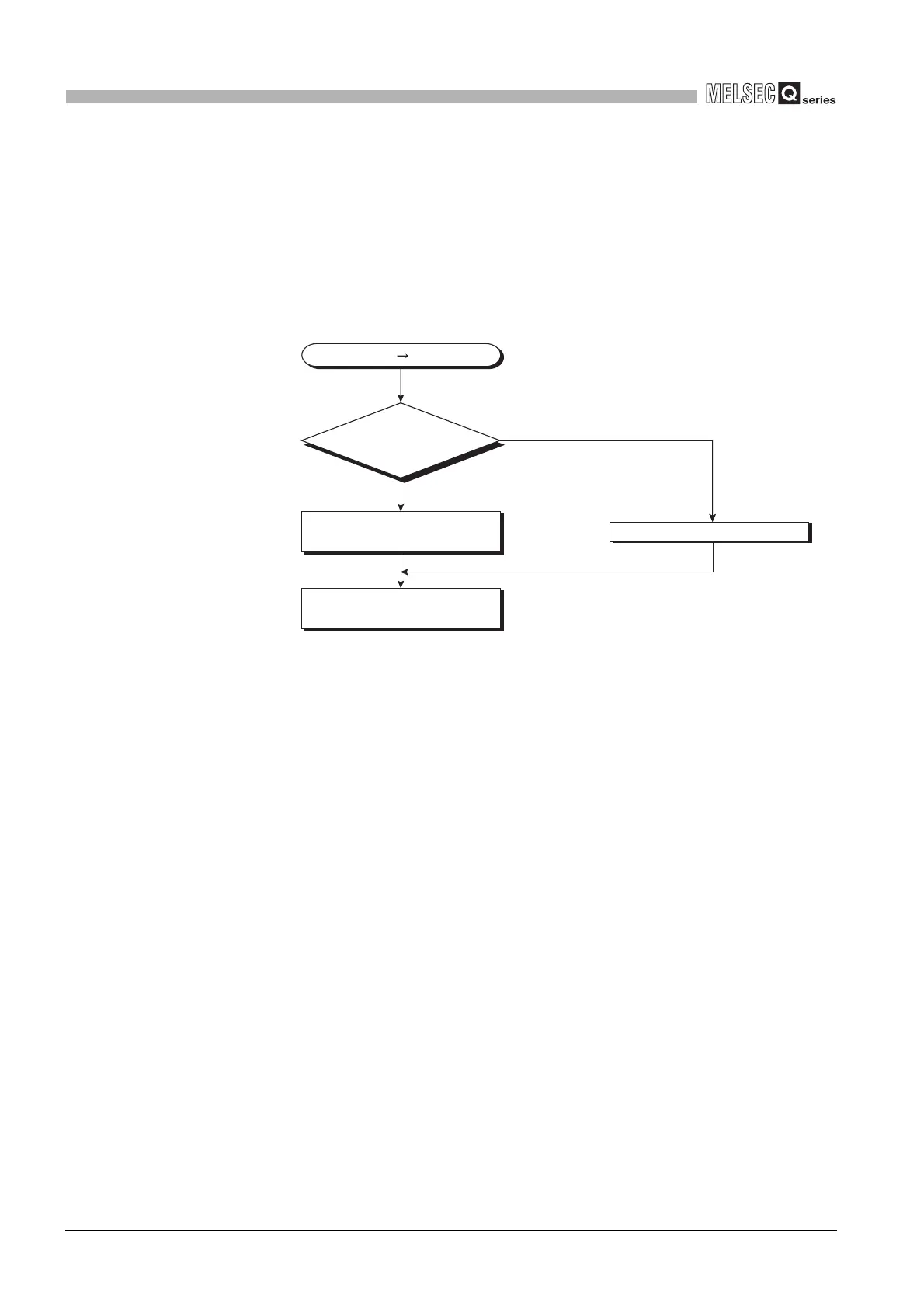

Diagram 6.8 Processing when Change from STOP Status to RUN Status
STOP status RUN status
Clear the output (Y) status.
YES (Output (Y) status prior to STOP is output(default))
Output the output (Y) status right
before changing to STOP status.
Execute the sequence
program calculations.
NO (Output is cleared)
Is output (Y) status
prior to STOP
output?
