(4) Setting the Output (Y) Status when Changing from STOP Status to RUN
Status
Set the output (Y) status when changing from the STOP status to the RUN status in
the PLC system of the PLC parameter dialog box.
(5) Precaution
If an output (Y) is forcefully turned ON with the CPU module in the STOP status, it will
not remain in the ON status even if the STOP status is switched to the RUN status.
The output (Y) status is effected as set for "Output mode at STOP to RUN" at the
"PLC System" tab screen.

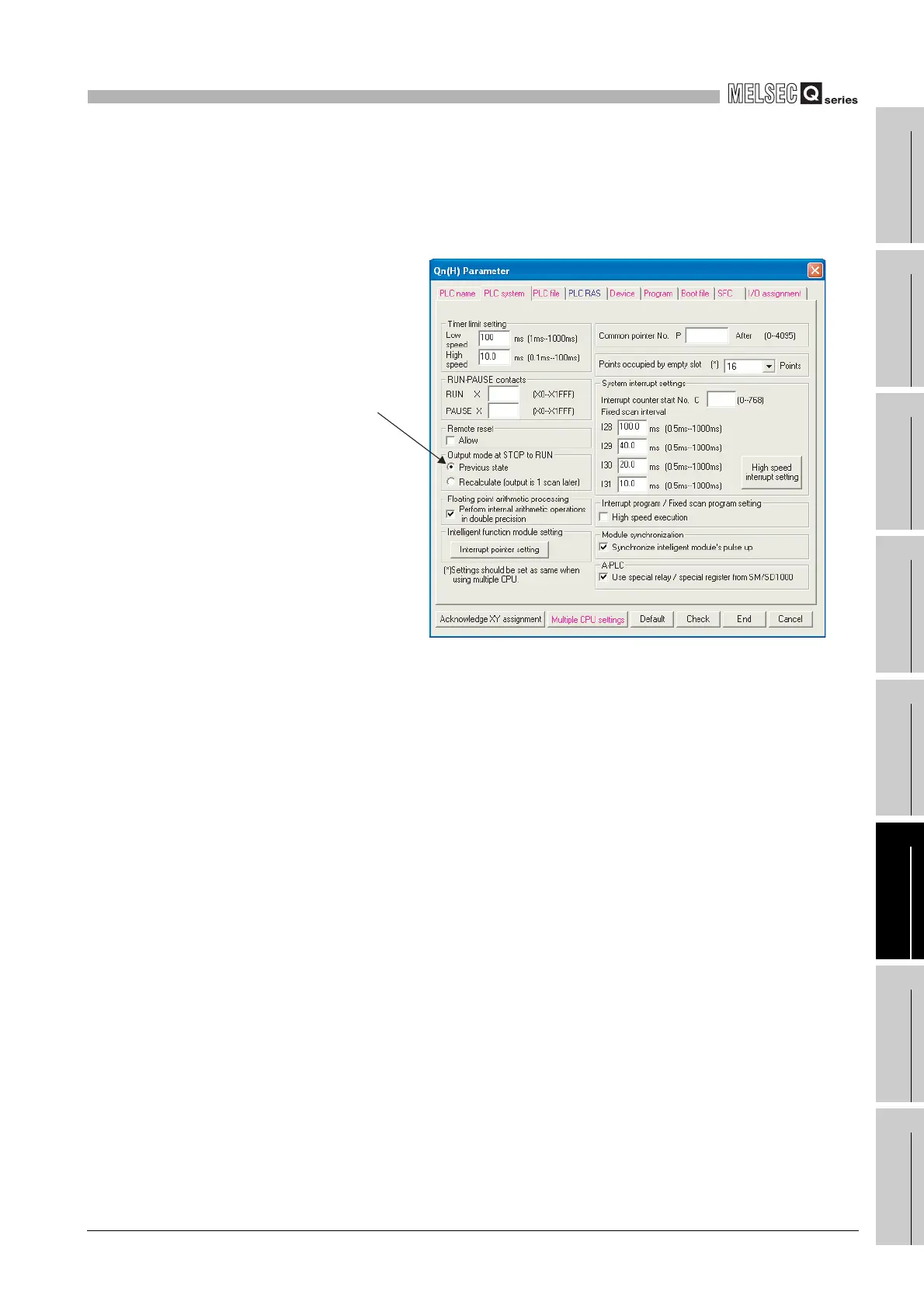

Diagram 6.9 PLC system screen
Output mode at
STOP to RUN
