(3) Setting the Switches of the Intelligent Function Modules and Interrupt
Modules
At the "I/O assignment" tab screen in the "(PLC) Parameter" dialog box, specify the
desired switch setting. Select "Intelli." in the "Type" column of a slot for which to set
the switches of the intelligent function modules and interrupt modules.
1) Make I/O assignment.
2) Select the button.
3) Set the module switches.
(4) Precautions
(a) When AnS series corresponding module is used
Note6.6
Note6
In switch setting, do not set the AnS series corresponding module.
An error ("SP. PARA. ERROR") will occur if switch setting is made to any AnS
series corresponding module.
(b) Switch setting of each module
For details on the switch setting for an intelligent function module or interrupt
module, refer to the manual of the intelligent function module or interrupt module.
(c) Setting differences between GX Developer versions
The switch settings for interruption modules with the GX Developer Version 6
(SW6D5C-GPPW-E) or later are made by setting the type to "Interruption".
When using GX Developer version 5 (SW5D5C-GPPW-E) or earlier to set the
interrupt module switches, set the type to "Intelli.".
Refer to the following manual for further details on the interruption module's
switch settings.
Building Block I/O Module User's Manual

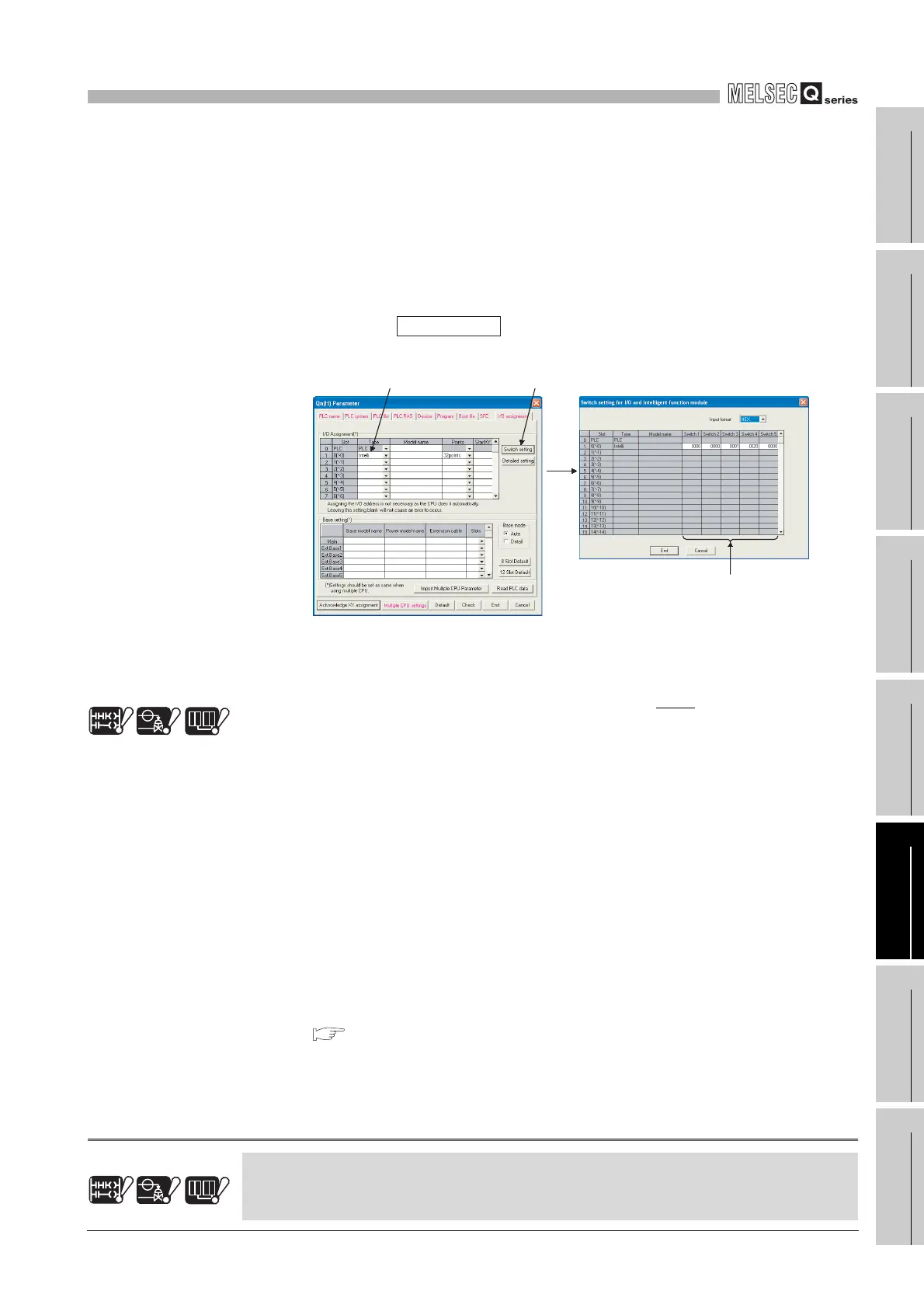

Diagram 6.26 Switch setting sequence
Note6
switch setting
1) Make I/O assignment. 2) Select "Switch Setting".
Designate the contents of the intelligent
function modules and interrupt modules switch.
3)
Basic
Process Redundant
Note6.6Note6.6 Note6.6
The Basic model QCPU, Process CPU and Redundant CPU cannot use the AnS series
corresponding modules.
Basic
Process Redundant
Note6.6 Note6.6Note6.6
