(4) Operation procedure
The following methods are available as the sampling trace operation procedure.
• Use the wizard ( GX Developer Operating Manual)
• Make detailed settings individually. ( as follows)
Perform each operation from the [Online] [Trace] [Sampling trace...] from the
menu bar.
(a) Trace data (setting+result) storage, Trace execution method
Set the trace data storage destination and trace execution method.
1) Trace data (setting+result) storage
Set the file name to which the trace data and trace conditions will be written.
The trace result is stored into the file of the file name set in this setting.
2) Trace execution method
Select the trace execution method from below.
• Execute trace after overwriting the carrent trace settings to the PLC.
The trace conditions will be written to the existing trace file (Overwrite).
• Execute trace for the settings written in PLC.
Trace is executed under the conditions of the trace file specified as the
trace data (conditions + result) storage destination.

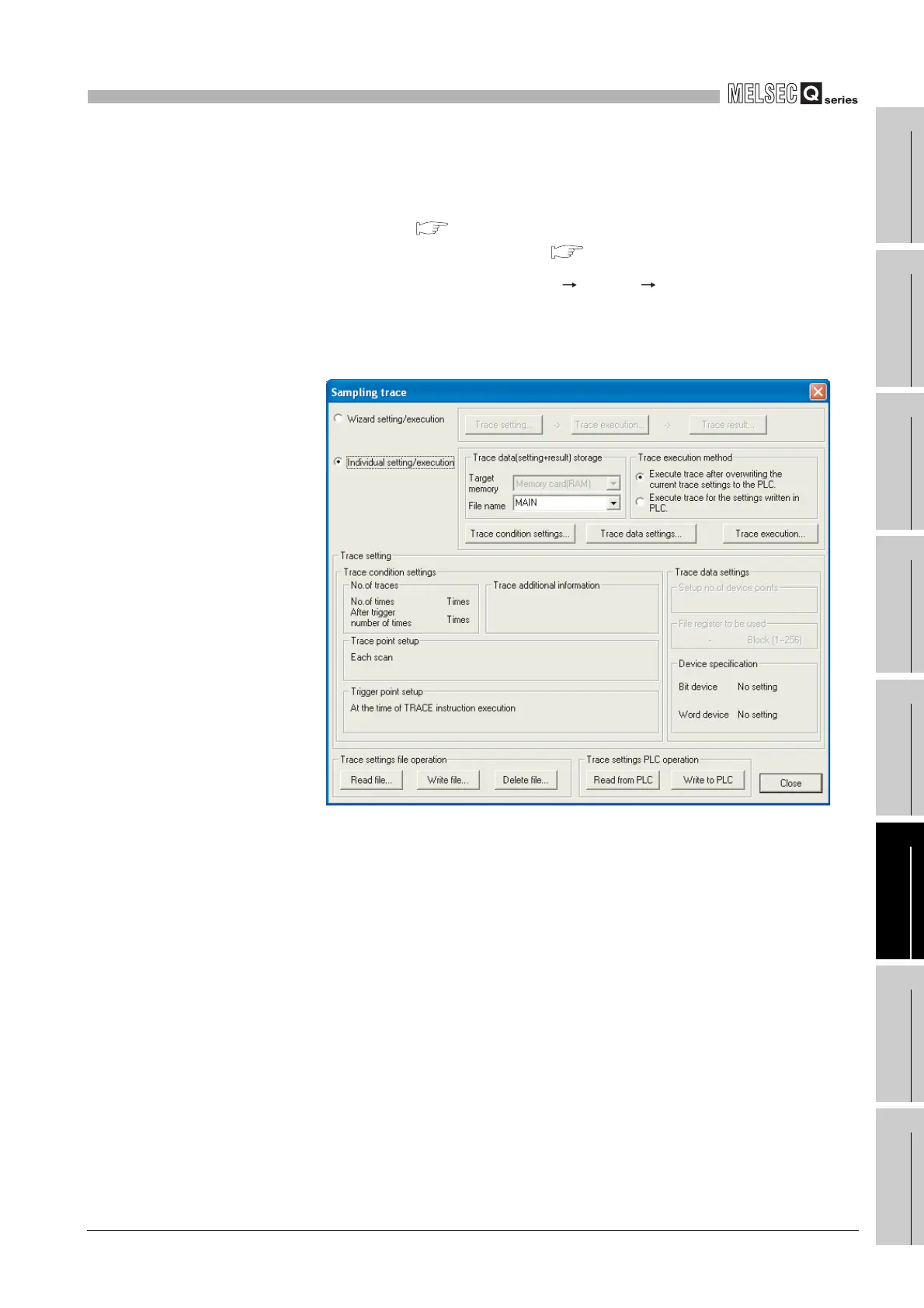

Diagram 6.53 Sampling trace screen
