6.14 Sampling Trace Function
6
FUNCTIONS
(b) Setting the Trace Condition
Click the button on the Sampling trace screen and set the
trace conditions.
The trace condition setting can set to No. of traces, Trace point setup, Trigger
point setup, and trace Additional information.
1) No. of traces
The "No. of times" sets the number of times to execute the sampling trace
from trace execution to trace complete.
The "After trigger number of times" sets the number of times to executes the
sampling trace from trigger execution to trace complete.
The setting range for each number of times is shown below:
(After trigger number of times) (No. of times) (8192)

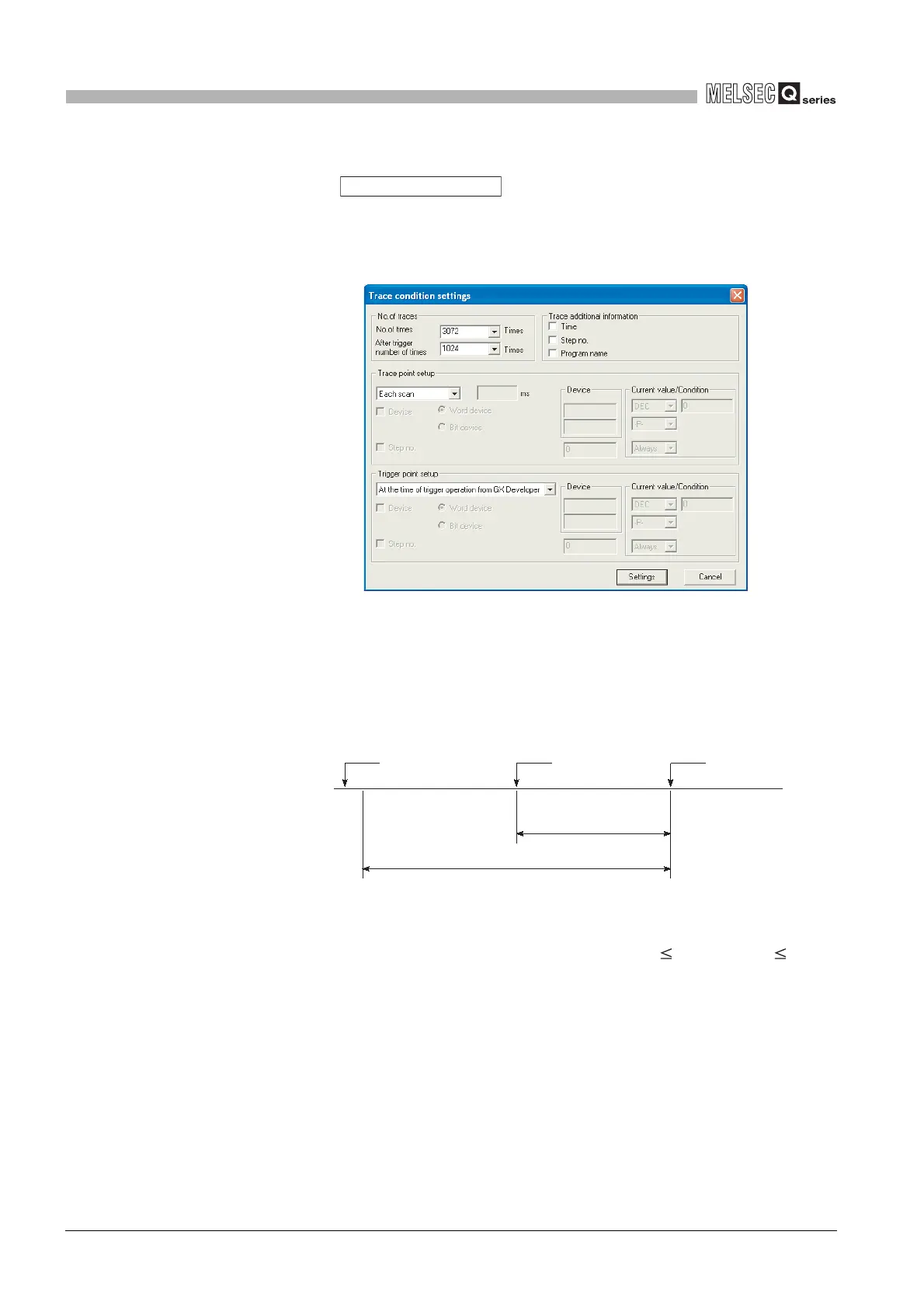

Diagram 6.54 Trace condition setting
Diagram 6.55 Relation between total number of times and the number of times after trigger
Trace condition setting
Trace start Trigger point Trace complete
After trigger
number of traces
No. of times (Number of total times)
