6.14 Sampling Trace Function
6
FUNCTIONS
(c) Trace data Setting
Select "Individual setting/execution" on the Sampling trace screen.
Click the button and set the devices to which sampling trace
will be executed.
1) Bit Device
Maximum of 50 bit devices can be set as follows.
• X, DX, Y ,DY, M, L, F, SM, V, B, SB
• T(contact), T(coil), ST(contact), ST(coil)
• C(contact), C(coil)
• J \X, J \Y, J \B, J \SB, BL \S
2) Word Device
Maximum of 50 word devices can be set as follows.
• T(current value), ST(current value), C(current value), D, SD, W, SW, R, Z,
ZR,
• U \G, J \W, J \SW

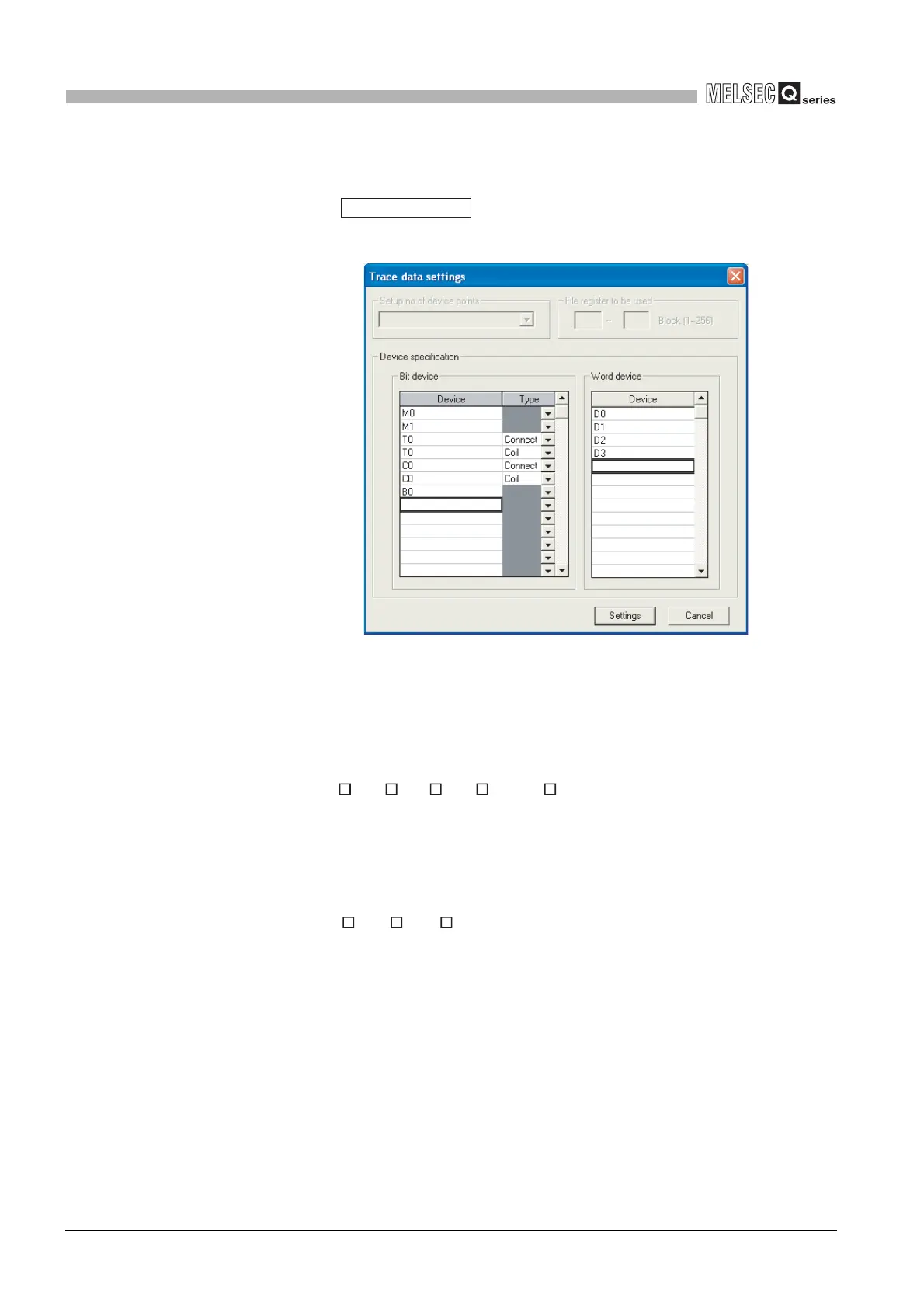

Diagram 6.56 Trace data setting screen
Trace data setting
