(d) Write of trace data and trace condition
The created trace data and trace condition is written to the memory card.
The trace file is written to the memory card.
Use the button on the Sampling trace screen to write the trace file
to the memory card (SRAM card).
Multiple trace files can be written to the memory card (SRAM card) by naming
each of them.
(e) Sampling trace execution
Sampling trace is executed.
Click the button on the Sampling trace screen to display the execute
sampling trace screen.
Sampling trace will be executed.
Trace operation can be set on the Execution and status display screen.
• Start trace
The trace is started. Starts to count the trace count.
• Stop trace
The trace is interrupted. The total trace count and trace count after trigger
are cleared. (When restarting trace, select "Registry trace" again.)
• Execute trigger
Starts to count the trace count after trigger. The trace is complete when the
trace count reaches the specified trace count after trigger.
• Registry trace (For start trace from Program)
Registers trace data when a program is executed.

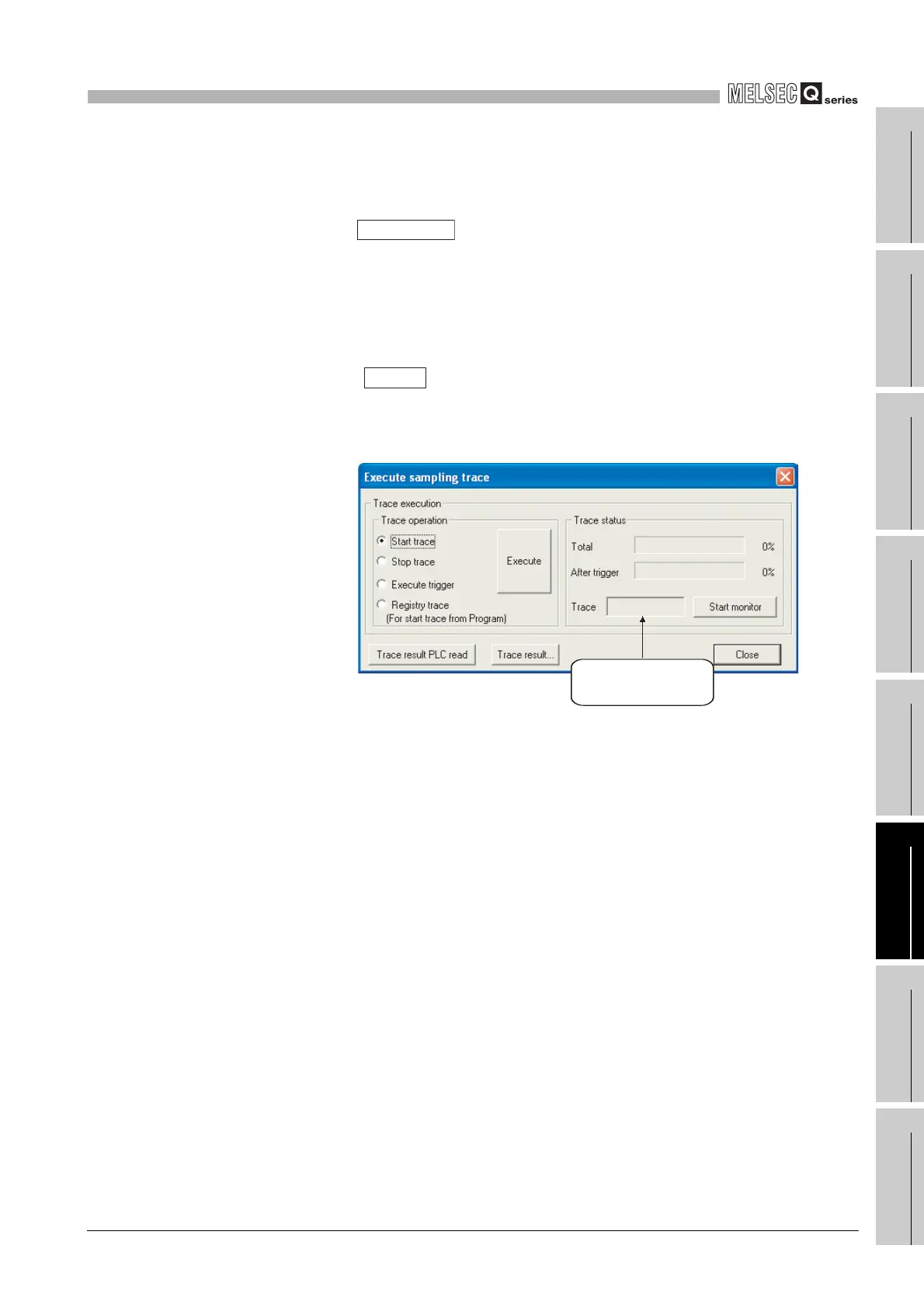

Diagram 6.57 Execution and status display screen
Write to PLC
Execute
Displayed only when
status display is selected
