Mitsubishi Q02CPU

8
PARAMETERS
8.1 PLC Parameters
8.1.2 High Performance model QCPU, Process CPU, Redundant CPU
8
- 21
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
(6) Device
Set the number of used points, latch range and local device range for each device.

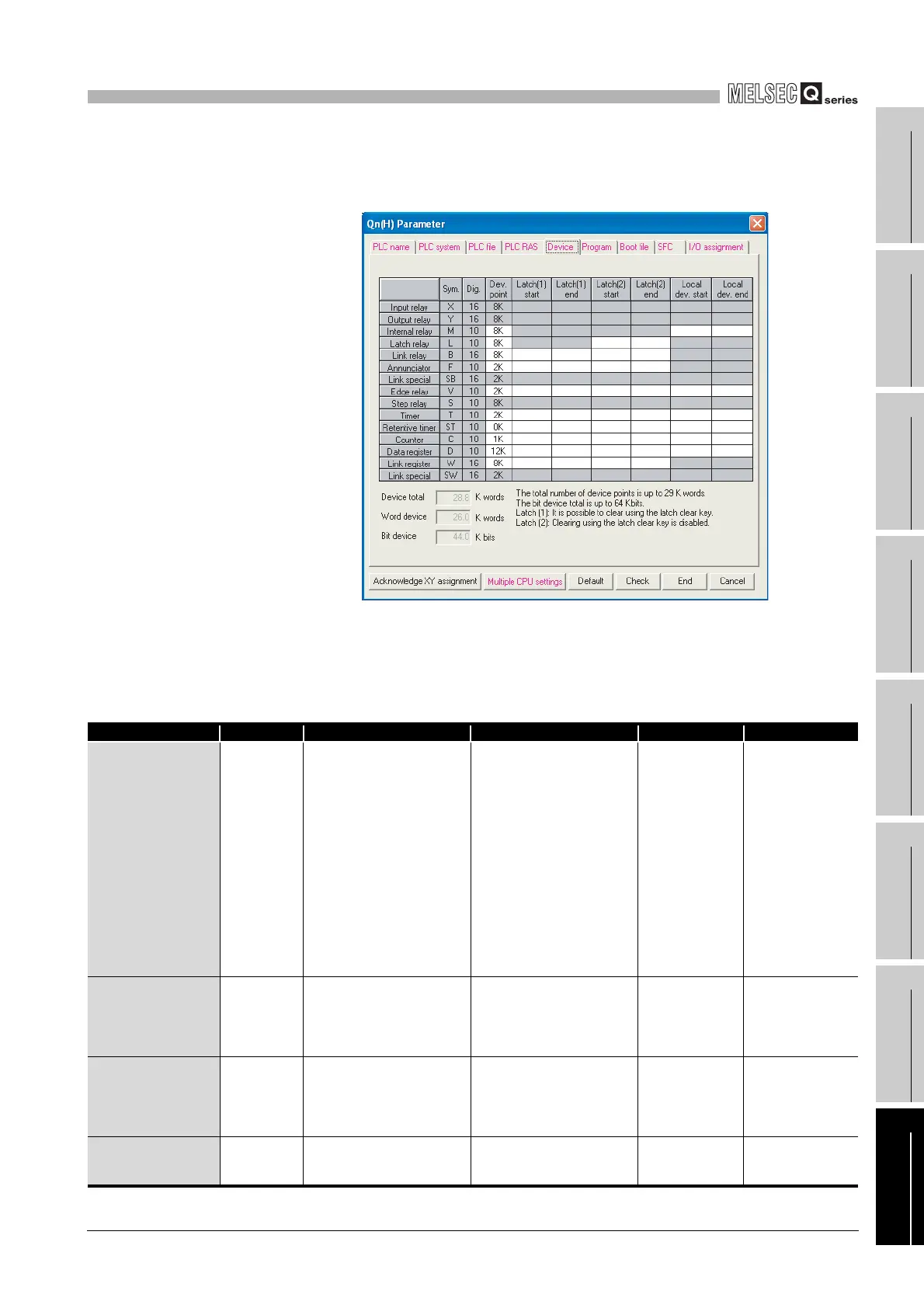

Diagram 8.17 Device
Table8.17 Device list
Item Parameter No. Description Setting range Default value Reference
Device points 2000H
Set the number of used device
points according to the system.
X (8k points), Y (8k points), S (8k
points), SB (2k points) and SW
(2k points) are fixed.
Can be set within the range of
total 29k words, including the
above number of points (3.7k
words).
• 1 device: Max. 32k points
• Total of bit devices: 64k points
X:8k points
Y:8k points
M:8k points
L:8k points
B:8k points
F:2k points
SB :2k points
V:2k points
S:8k points
T:2k points
ST :0k points
C:1k points
D :12k points
W:8k points
SW :2k points
Section 9.1
Section 9.2
Latch (1) start/end 2001
H
Set the latch range (first device
number/last device number) in
which clear is enabled by the
RESET/L.CLR switch or remote
latch clear operation.
Set only one range to each of the
B, F, V, T, ST, C, D and W
devices.
No setting
Section 3.7
Section 6.3
Latch (2) start/end 2002H
Set the latch range (first device
number/last device number) in
which clear is disabled by the
RESET/L.CLR switch or remote
latch clear operation.
Set only one range to each of the
L, B, F, V, T, ST, C, D and W
devices.
No setting
Section 3.7
Section 6.3
Local device start/end 2003
H
Set the device range (first device
number/last device number)
used as a local device.
Set only one range to each of the
M, V, T, ST, C and D devices.
No setting Section 9.13.1
