MKS 937B - Figure 8-6 Buffered Analog Output for the 317 Convection Pirani Gauge

MKS 937B Operation Manual
79
Buffered Convection Pirani Analog Output
(Series 317)
Pressure, Torr
10
-3
10
-2
10
-1
10
0
10
1
10
2
10
3
Output Voltage, V
0
1
2
3
4
5
6
7
8
9
10
He
N
2
Ar

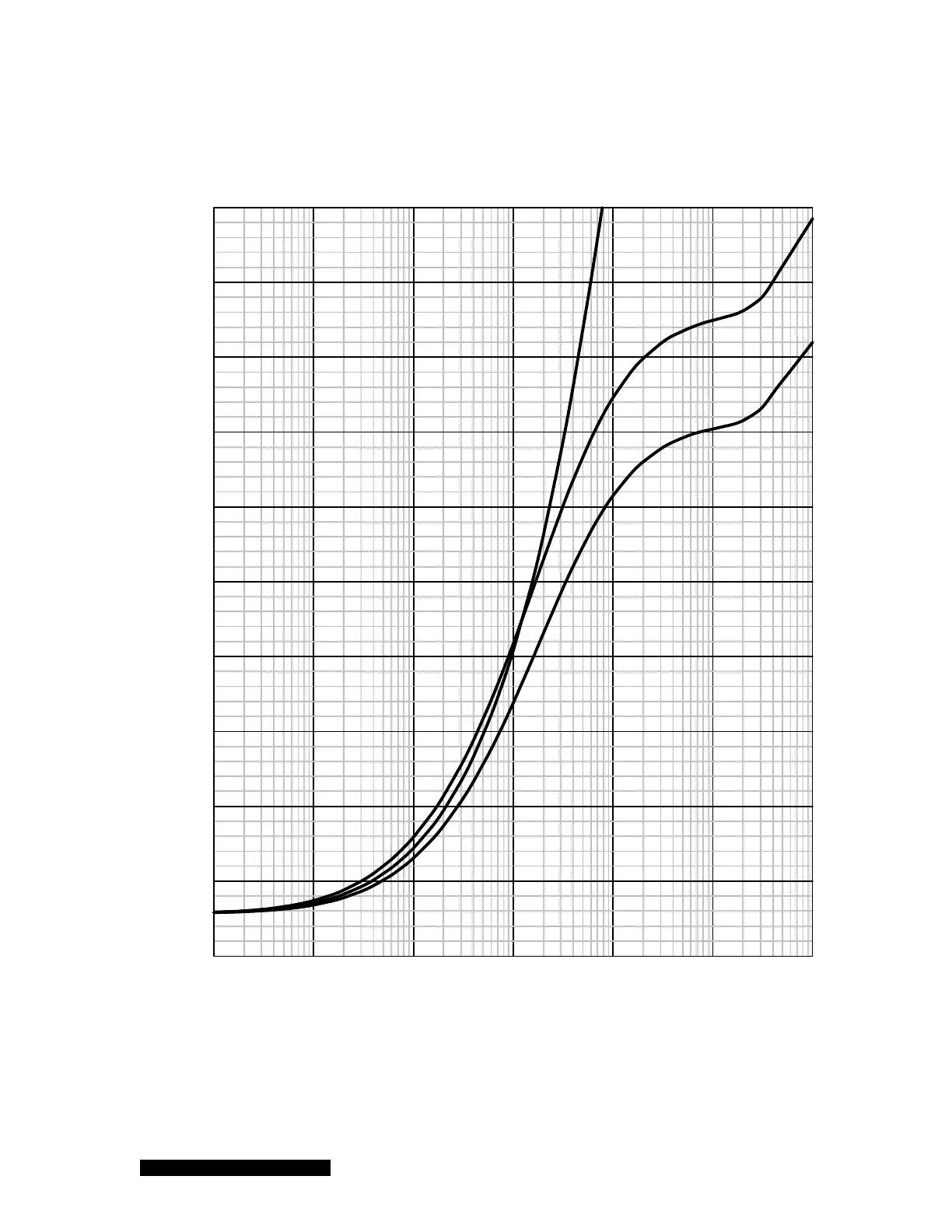

Figure 8-6 Buffered analog output for the 317 convection Pirani gauge.
