Setting Up

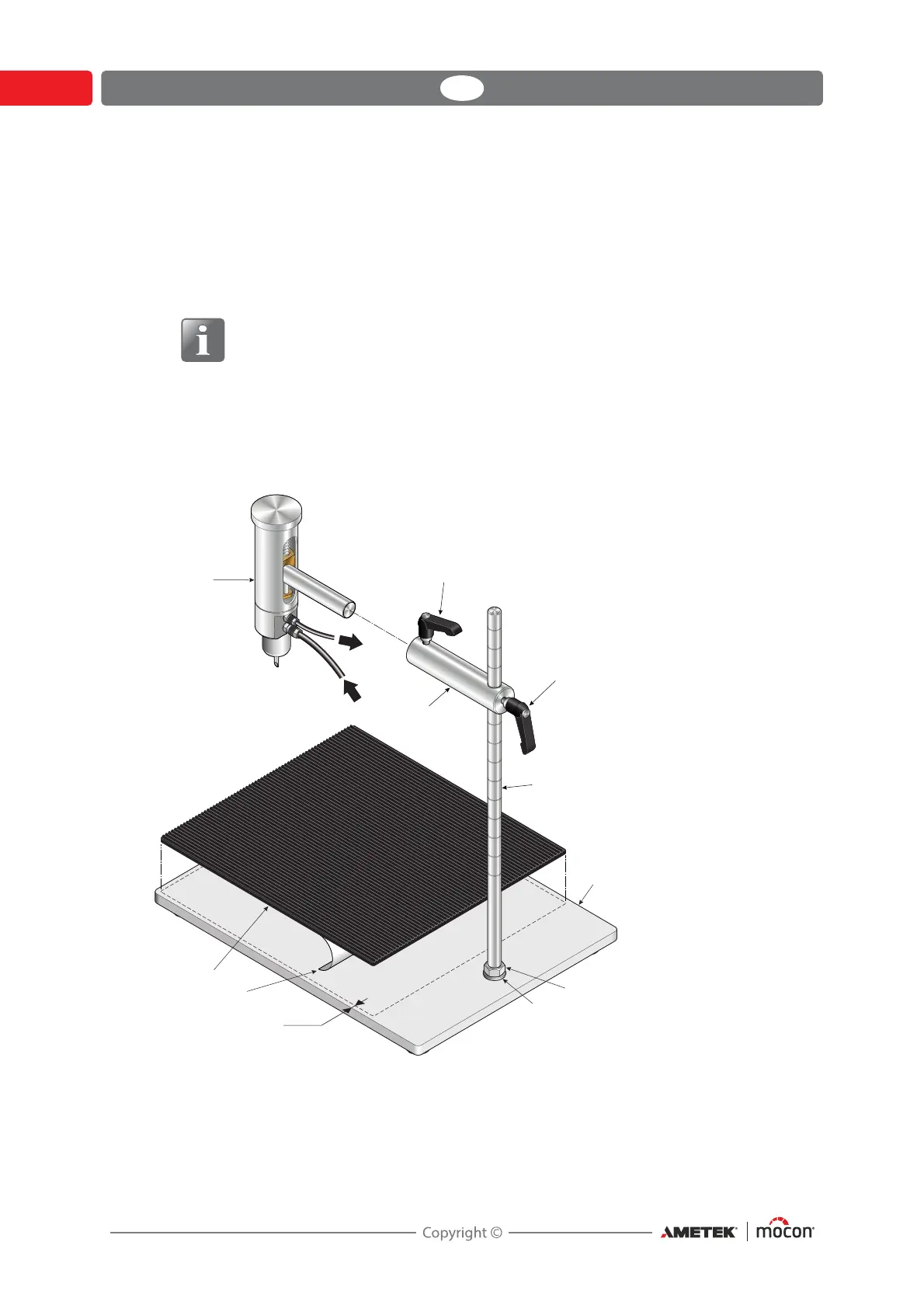

1. Mount the nut and the washer on the vertical rod , then screw the rod into the
base plate
as far as it goes. Tighten assembly by screwing the nut against the base
plate
.
2. Apply the self-adhesive rubber mat by removing the protective paper and position
the mat approx. 5 mm from the front and side edges of the base plate
.
NOTE! You can choose not to use the rubber mat, as cleaning of the base plate
is easier without it. Still we recommend to use it, as it provides better friction for
the test items.
3. Fit the two handles and to the connector rod and slide it onto the vertical rod .
Tighten the handle
to position the connector rod on the vertical rod .
4. Prepare the test head - see page 22 for details - then insert it into the connector rod
and tighten handle to keep it in position.
