Adjusting the restraining height (ASTM)
The ASTM restraining fixture can be adjusted to various package restraining heights from 6.35
to 76.2 mm (¼” to 3”) in steps of 6.35 mm (¼”).

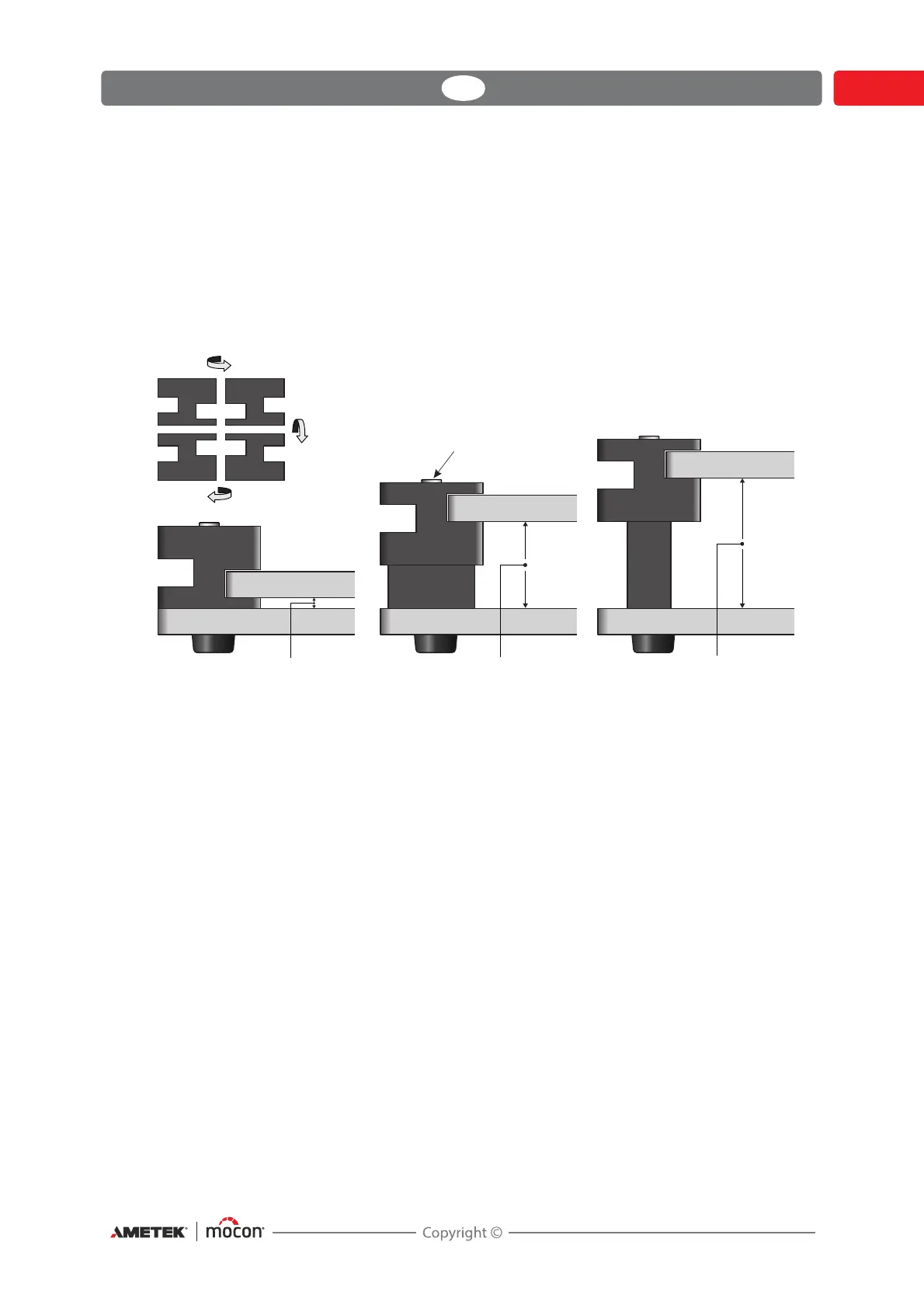

The 12 different height settings are achieved by combining the side bars (A) and (B) as
illustrated below.
For each of the 3 combinations of the bar (B) (none, lying or standing) there is a matching set
of screws
.
