Wireless Configuration
6-29

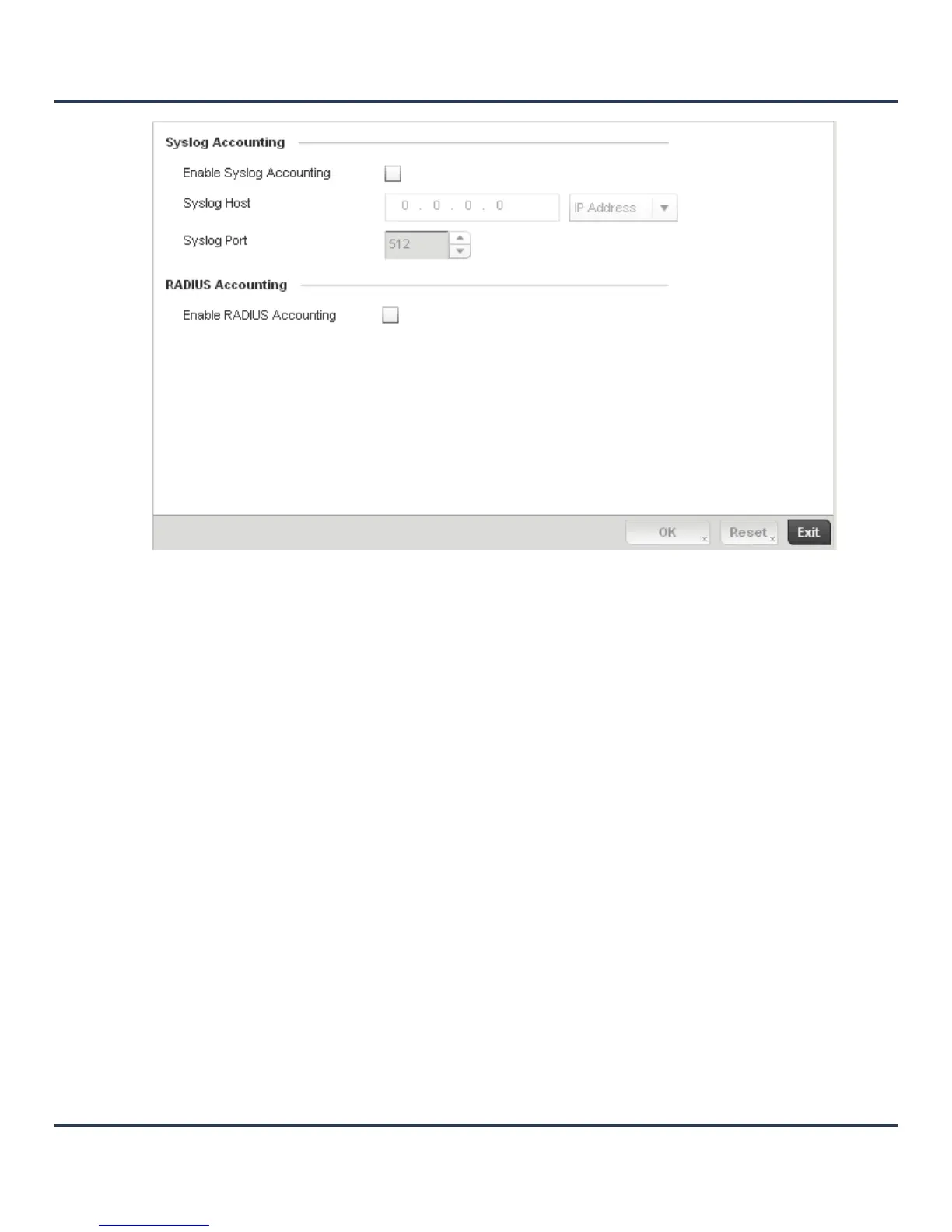

Figure 6-13 WLAN Policy Accounting screen
4. Set the following Syslog Accounting information:
5. Select the Enable RADIUS Accounting radio button to use an external RADIUS resource for AAA
accounting. When the radio button is selected, a AAA Policy field displays. Either use the default AAA
policy with the WLAN, or select Create to define a new AAA configuration that can be applied to the
WLAN. This setting is disabled by default.
6. Select OK when completed to update this WLAN’s accounting settings. Select Reset to revert the screen
back to its last saved configuration.
6.1.5.1 Accounting Deployment Considerations
Before defining a AAA configuration on a WLAN, refer to the following deployment guidelines to ensure the
configuration is optimally effective:
• When using RADIUS authentication, Motorola Solutions recommends the WAN port round trip delay not
exceed 150ms. Excessive delay over a WAN can cause authentication and roaming issues. When
excessive delays exists, a distributed RADIUS service should be used.
• Motorola Solutions recommends authorization policies be implemented when users need to be restricted
to specific WLANs, or time and date restrictions need to be applied.
Enable System Log
Accounting
Use this option for the Access Point to generate accounting records in
standard syslog format (RFC 3164) The feature is disabled by default.
Syslog Host Specify the IP address or hostname of the external syslog host where
accounting records are routed.
Syslog Port Use the spinner control to set the destination UDP port number of the
external syslog host where the accounting records are routed.
