13.3.12.4 NAT Translations
 Firewall
To view the MAC Firewall Rules:
1. Select the Statistics menu from the Web UI.
2. Select the System tab and then select the Access Point node.
3. Expand the Firewall menu to reveal its sub menu options.
4. Select NAT Translations.

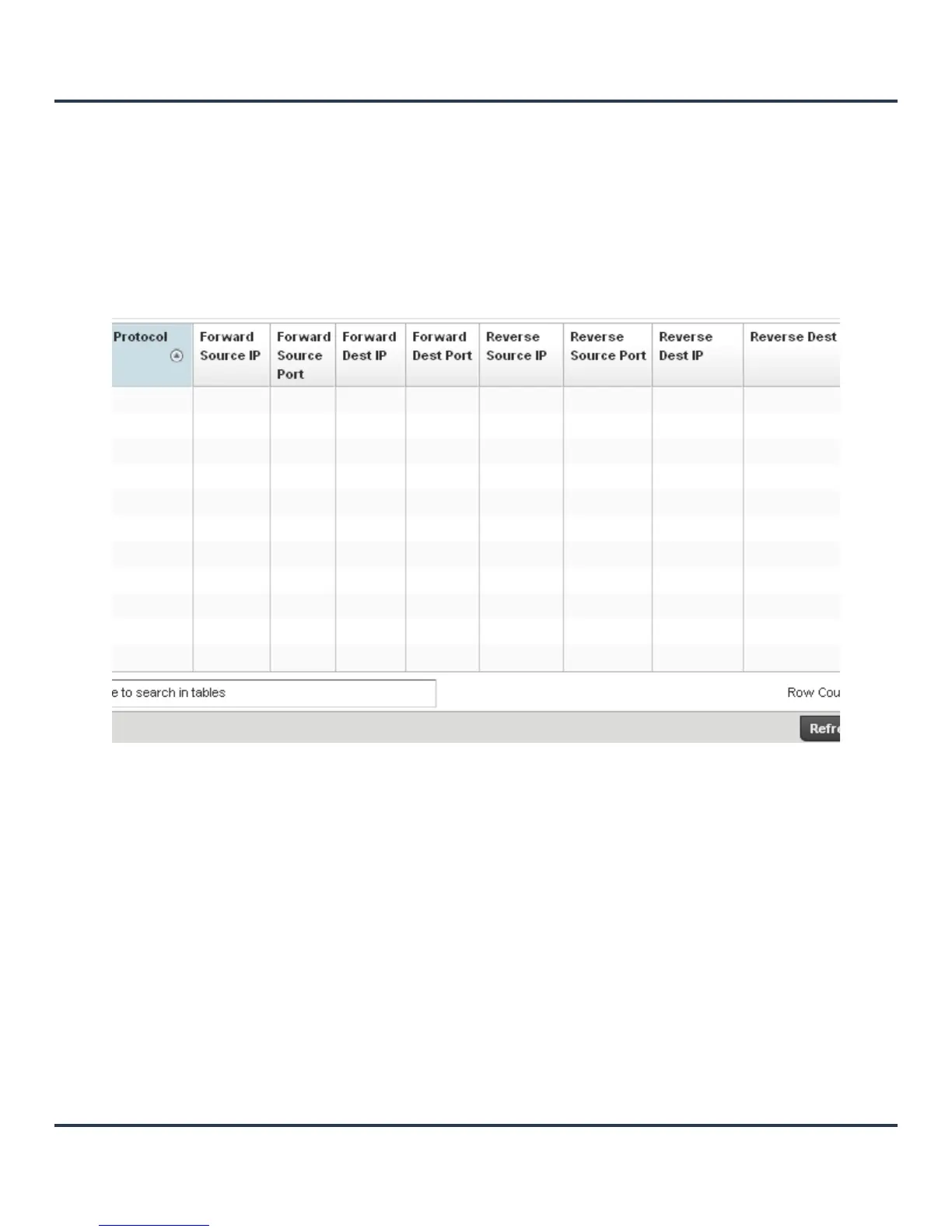

Figure 13-33 Access Point Firewall - NAT Translations screen
The NAT Translations screen displays the following:
Protocol Displays the IP protocol (TCP, UDP, ICMP).
Forward Source
IP
Displays the source IP address for the forward NAT flow.
Forward Source
Port
Displays the source port for the forward NAT flow (contains ICMP ID if it is an
ICMP flow).
Forward Dest IP Displays the destination IP address for the forward NAT flow.
Forward Dest
Port
Displays the destination port for the forward NAT flow (contains ICMP ID if it
is an ICMP flow).
Reverse Source
IP
Displays the source IP address for the reverse NAT flow.
