Motorola Solutions AP-6511 Access Point System Reference Guide
4-10

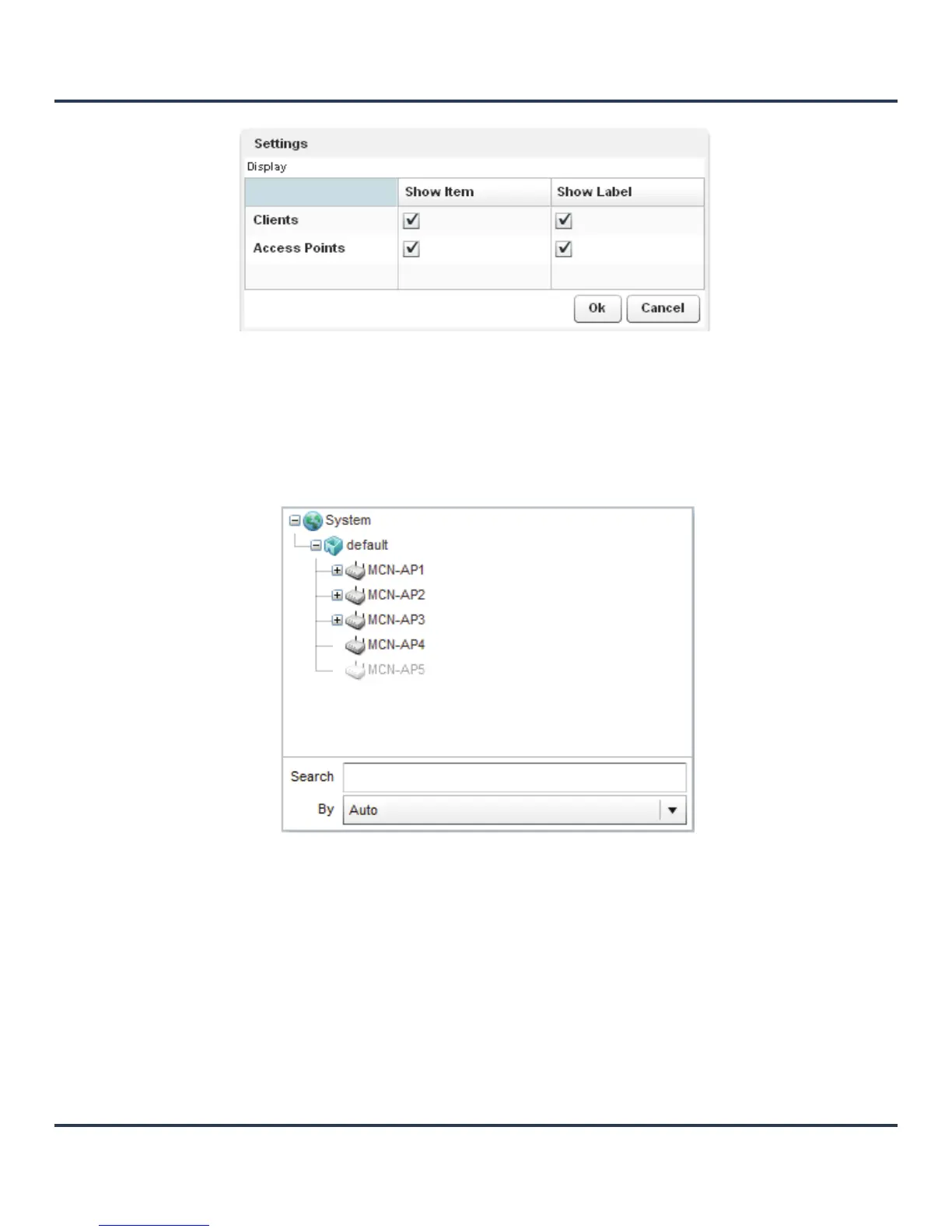

Figure 4-13 Network View - Settings field
Select either Access Points or Clients (or both) to display them within the Network View topology.
Similarly, select the Show Label option to display hardware MAC address.
The left-hand side of the Network View display contains an expandable System column where peer AP-6511
Access Points can be selected and expanded to displays connected peers. Use the System area as required
to review device connections within an AP-6511 managed network. Many of these peer devices are available
for device connection to Controller AP mode AP-6511s.
Figure 4-14 Network View - System field
4.2.1 Filters Field
 Network View
The Filters field is located on the top right-hand side of the Network View screen. It provides different options
to fetch information.
