Motorola AP-6511 - WIPS Events; Captive Portal

Statistics
13-59
13.3.14.1 WIPS Events
 WIPS
The WIPS Events screen details the wireless intrusion event by an access point.
To view the WIPS events statistics:
1. Select the Statistics menu from the Web UI.
2. Select the System tab and then select the Access Point node.
3. Expand the WIPS menu item and select WIPS Events.

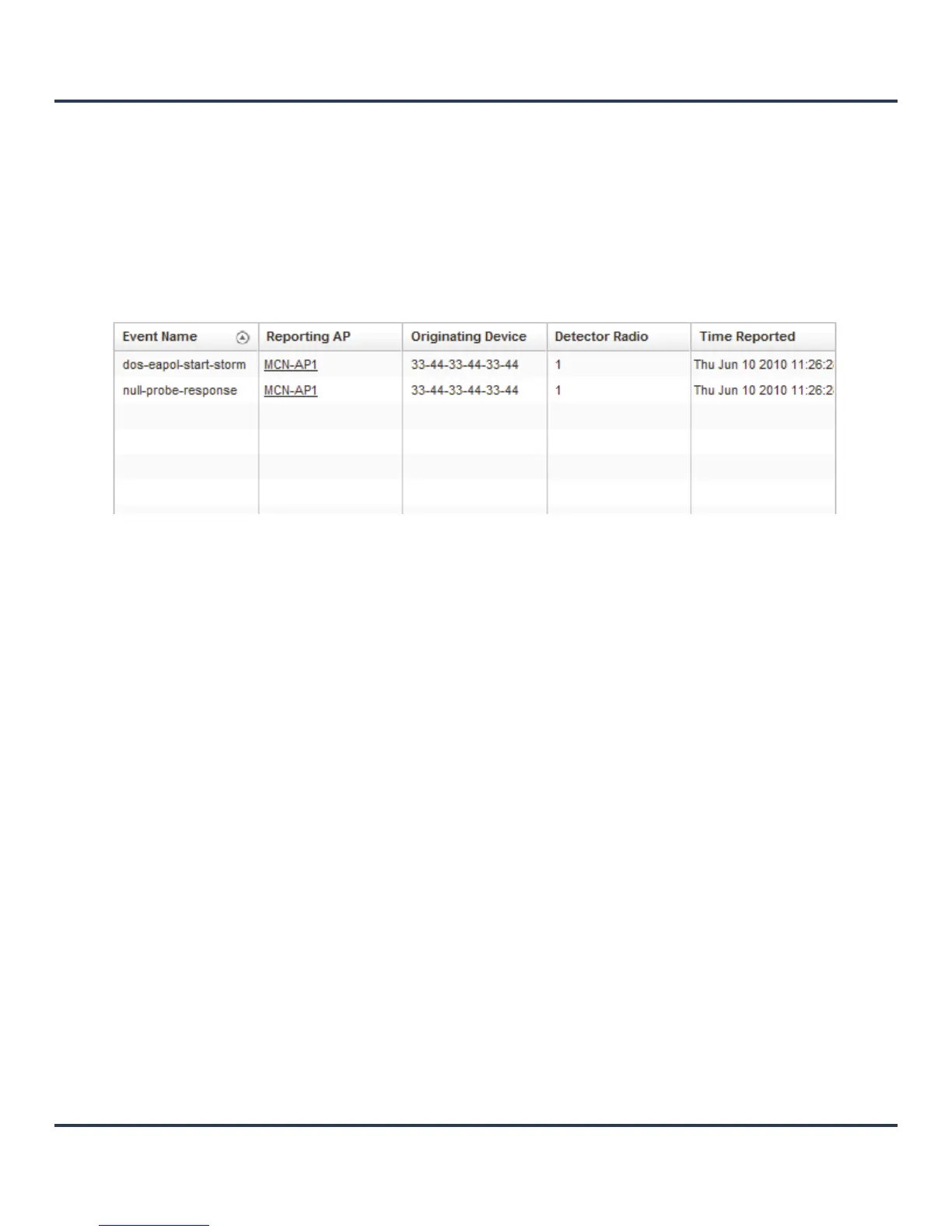

Figure 13-37 Access Point - WIPS Events screen
The WIPS screen provides the following:
13.3.15 Captive Portal
 Access Point Statistics
A captive portal forces a HTTP client to use a special Web page for authentication before using the Internet.
A captive portal turns a Web browser into a client authenticator. This is done by intercepting packets
regardless of the address or port, until the user opens a browser and tries to access the Internet. At that time,
the browser is redirected to a Web page.
To view the captive portal statistics of an access point:
1. Select the Statistics menu from the Web UI.
2. Select the System tab and then select the Access Point node.
3. Select Captive Portal.
Event Name Displays the name of the wireless intrusion detected.
Reporting AP Displays the MAC address of the AP reporting this intrusion.
Originating
Device
Displays the MAC address of the intruding device.
Detector Radio
Displays the number of sensor radios supported by the reporting AP.
Time Reported Displays the time when the intrusion was detected.
