Motorola Solutions AP-6511 Access Point System Reference Guide
13-14
13.2.5.2 Radio RF Statistics
To view the RF Domain radio statistics:
1. Select the Statistics menu from the Web UI.
2. Select the RF Domain tab from the left navigation pane and select the RF Domain node.
3. Expand the Radios menu item.
4. Select RF Statistics.

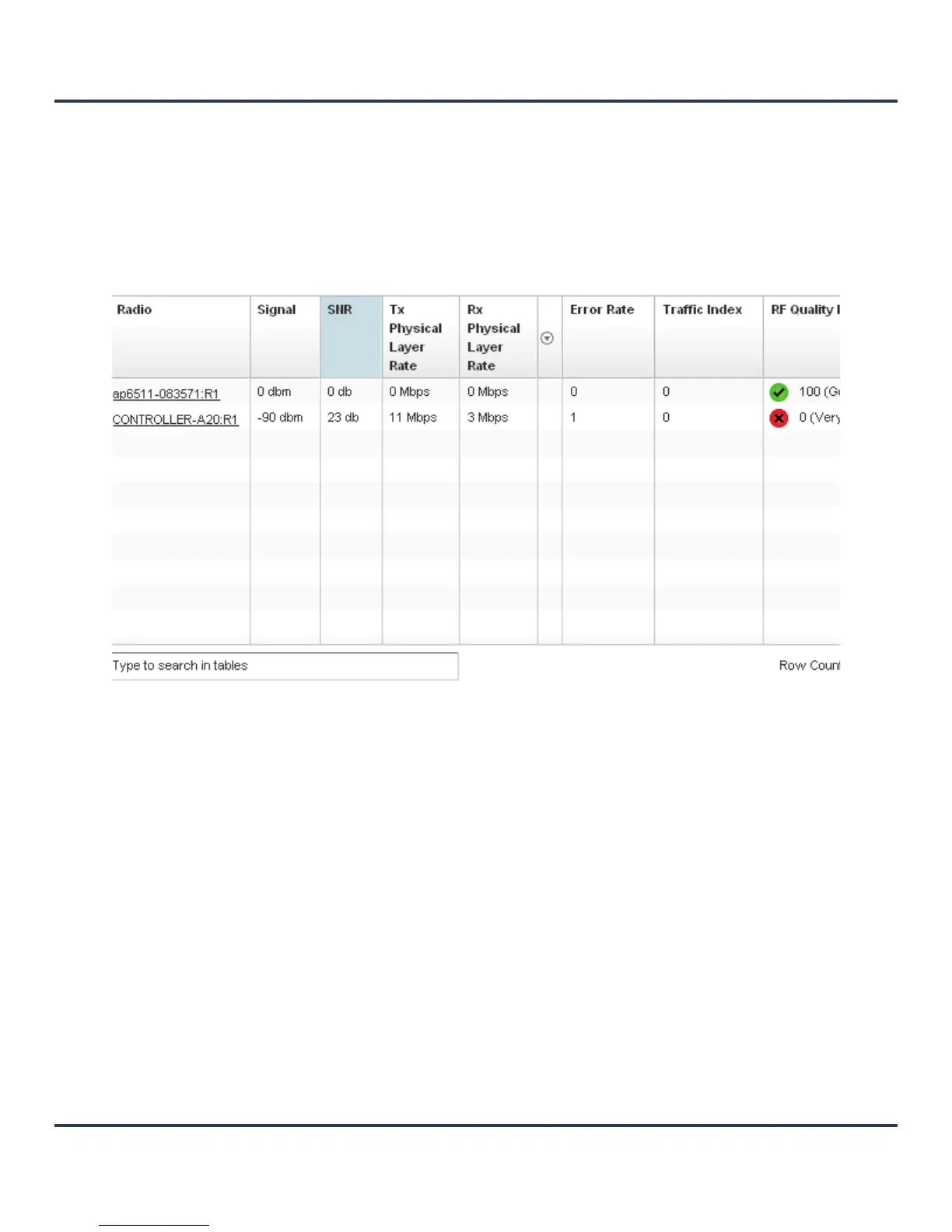

Figure 13-8 Radios - RF Statistics screen
This screen provides the following information:
Radio Displays the name assigned to the radio as its unique identifier.
Signal Displays the power of radio signals in dBm.
SNR Displays the signal to noise ratio of all associated wireless clients.
Tx Physical
Layer Rate
Displays the data transmit rate for the radio’s physical layer. The rate is
displayed in Mbps.
Rx Physical
Layer Rate
Displays the data receive rate for the radio’s physical layer. The rate is
displayed in Mbps.
Error Rate Displays the average number of retries per packet. A high number indicates
possible network or hardware problems.
