5.4.1.2 Virtual Interface Override Configuration
 Profile Interface Override Configuration
A Virtual Interface is required for layer 3 (IP) access or provide layer 3 service on a VLAN. The Virtual Interface
defines which IP address is associated with each VLAN ID. A Virtual Interface is created for the default VLAN
(VLAN 1) to enable remote administration. A Virtual Interface is also used to map VLANs to IP address
ranges. This mapping determines the destination networks for routing.
To review existing Virtual Interface configurations and either create a new Virtual Interface configuration,
modify (override) an existing configuration or delete an existing configuration:
1. Select the Configuration tab from the Web UI.
2. Select Devices from the Configuration tab.
3. Select a target device (by double-clinking it) from amongst those displayed within the Device
Configuration screen.
Devices can also be selected directly from the Device Browser in the lower, left-hand, side of the UI.
4. Select Profile Overrides from the Device menu to expand it into sub menu options.
5. Select Interface to expand its sub menu options.
6. Select Virtual Interfaces.

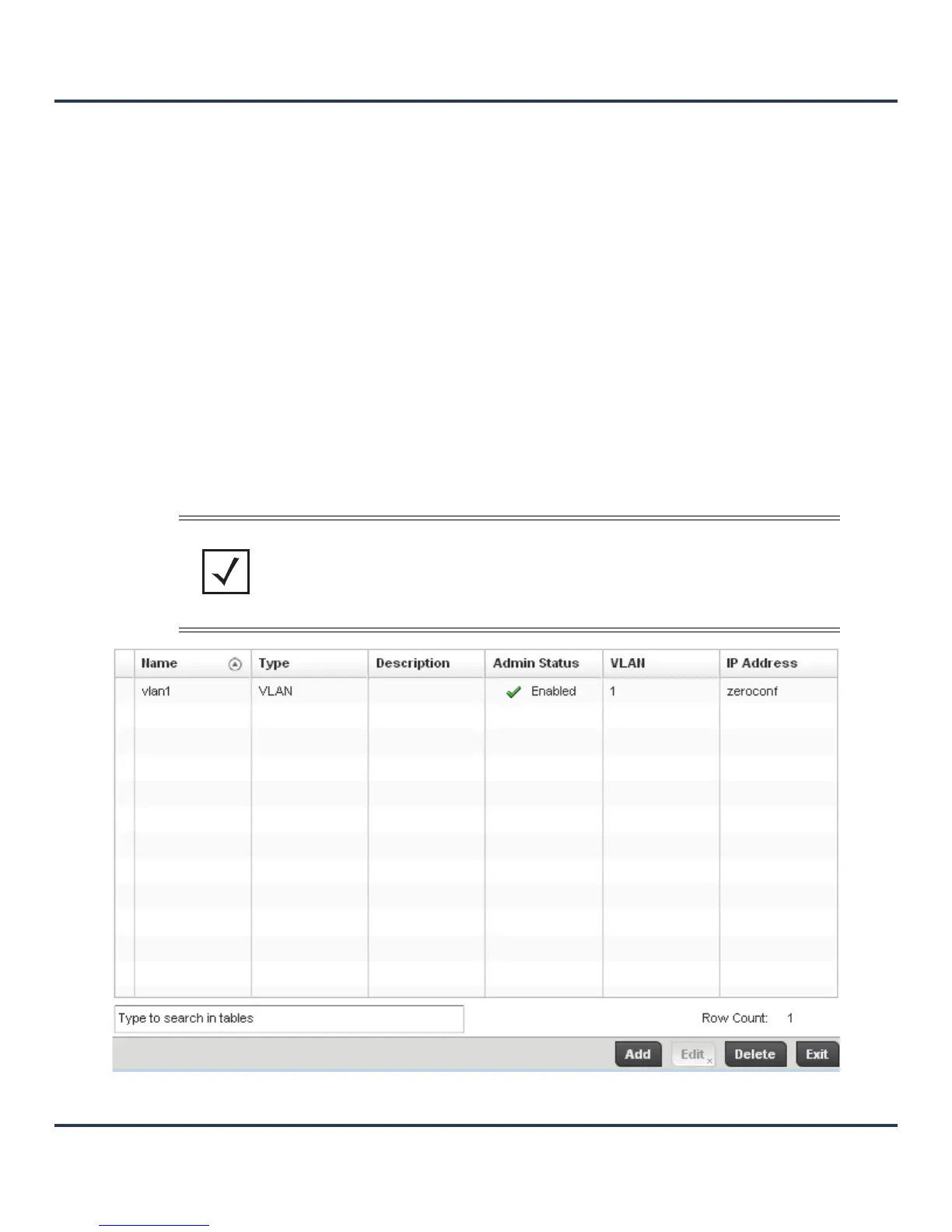

Figure 5-20 Profile Overrides - Virtual Interfaces screen
NOTE: A blue override icon (to the left of a parameter) defines a parameter as having an
override applied. To revert the override back to its original profile setting, select the
override icon to display an Action pop-up. Select the Remove Override checkbox to
revert the override to its original setting for this profile.
