Statistics
13-35
13.3.8.3 Radio Traffic Statistics
To view the Access Point radio statistics:
1. Select the Statistics menu from the Web UI.
2. Select the System tab from the left navigation pane and then select the Access Point node.
3. Expand Radios.
4. Select Traffic Statistics.

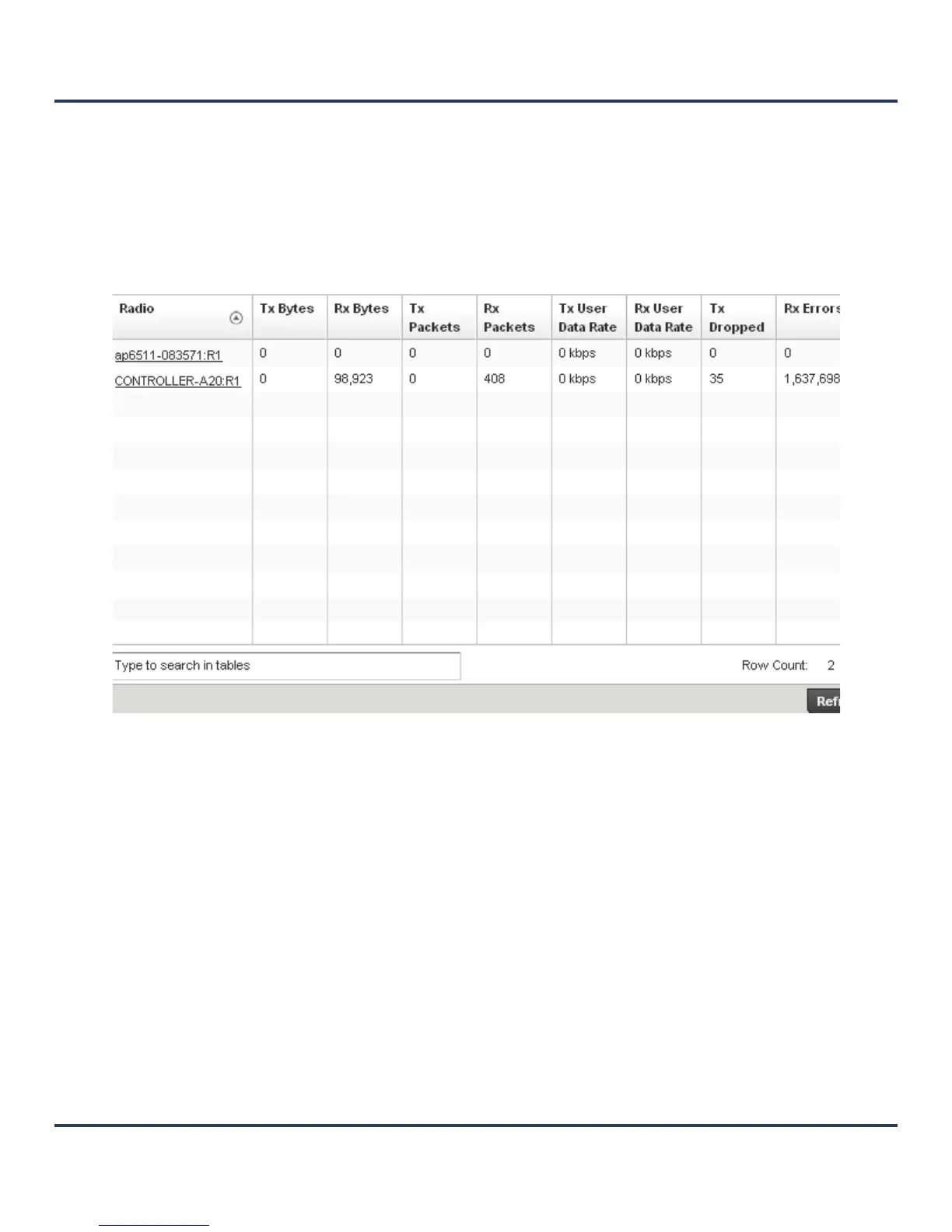

Figure 13-23 Access Point Radios - Traffic Statistics screen
This screen provides the following information:
Radio Displays the name assigned to the radio as its unique identifier.
Tx Bytes Displays the total number of bytes transmitted by each radio. This includes all
user data as well as any management overhead data.
Rx Bytes Displays the total number of bytes received by each radio. This includes all
user data as well as any management overhead data.
Tx Packets Displays the total number of packets transmitted by each radio. This includes
all user data as well as any management overhead packets.
Rx Packets Displays the total number of packets received by each radio. This includes all
user data as well as any management overhead packets.
Tx User Data
Rate
Displays the rate (in kbps) that user data is transmitted by the radio. This rate
only applies to user data and does not include any management overhead.
