Motorola AP-6511 - DHCP Server

Statistics
13-45
13.3.11 DHCP Server
 Network
To view DHCP statistics within an AP-6511 managed network:
1. Select the Statistics menu from the Web UI.
2. Select the System tab from the left navigation pane and then select the Access Point node.
3. Select Network > DHCP Server.
4. Expand the DHCP Server option and select General.

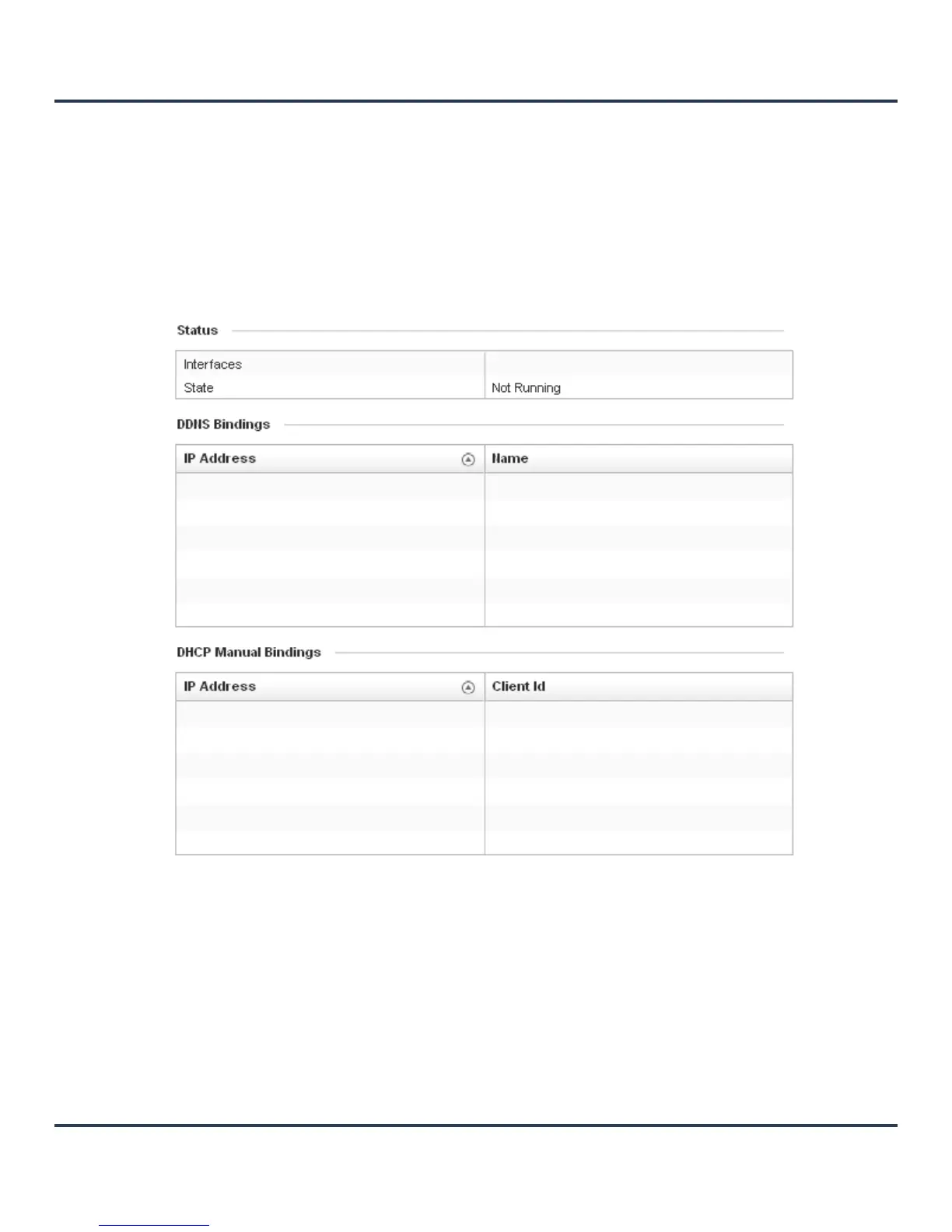

Figure 13-29 Access Point Network DHCP Server - General tab
The DHCP screen displays the following:
Interfaces
Displays the interface used for the newly created DHCP configuration.
State
Displays the current state of the DHCP server.
IP Address
Displays the IP address assigned to the client.
Name
Displays the domain name mapping corresponding to the IP address listed.
